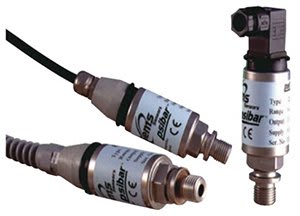

0 reviews | Model: GEMS Sensors 1200HGG3002A3UA
1200 Series Pressure Transducer, 1-5V, Gauge, 0-300, 1/4-18 NPT External, Mini Din with mate, Amplified Only RFI Protected CE Mark, UR, Performance Code
List Price: $692.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The 1200 Series features stability and toughness via its CVD and ASIC design coupled with a thicker diaphragm. The thicker diaphragm enables these sensors to survive most pressure spikes caused by pump ripple, solenoid valves, etc.
The 1600 Series extends the packaging options by providing an all welded stainless steel back end for demanding industrial applications. A modular design allows special ordering of fittings, electrical cables, etc. for OEM applications. The ASIC and CVD technology enables Gems to offer almost any output over any pressure range. Along with the superiority of the CVD strain gauge, Psibar® transducers incorporate components to leverage the sensing element’s strength. The output is a product with a unique balance of performance and value unmatched in today’s pressure sensing market.
Meets the requirement for CE marking of EN50081-2 for emissions and EN50082-2 for susceptibility. Test Data: • EN61000-4-2 Electrostatic Discharge. 8kV air discharge, 4kV contact discharge. Unit survived. • ENV50140 Radiated RF Susceptibility. 10V/m, 80MHz-1GHz, 1kHz mod. Maximum recorded output error was <±1% • ENV50204 Radiated RF Susceptibility to Mobile Telephones. 10V/m, 900MHz. Maximum recorded output error was <±1%. • EN61000-4-4 Fast Burst Transient. 2kV, 5/50ns, 5kHz for 1 minute. Unit survived. • ENV50141 Conducted RF Susceptibility. 10Vms, 1kHz mod, 150kHz - 80MHz. Maximum recorded output error was <±1%
1200 Series
1600 Series
