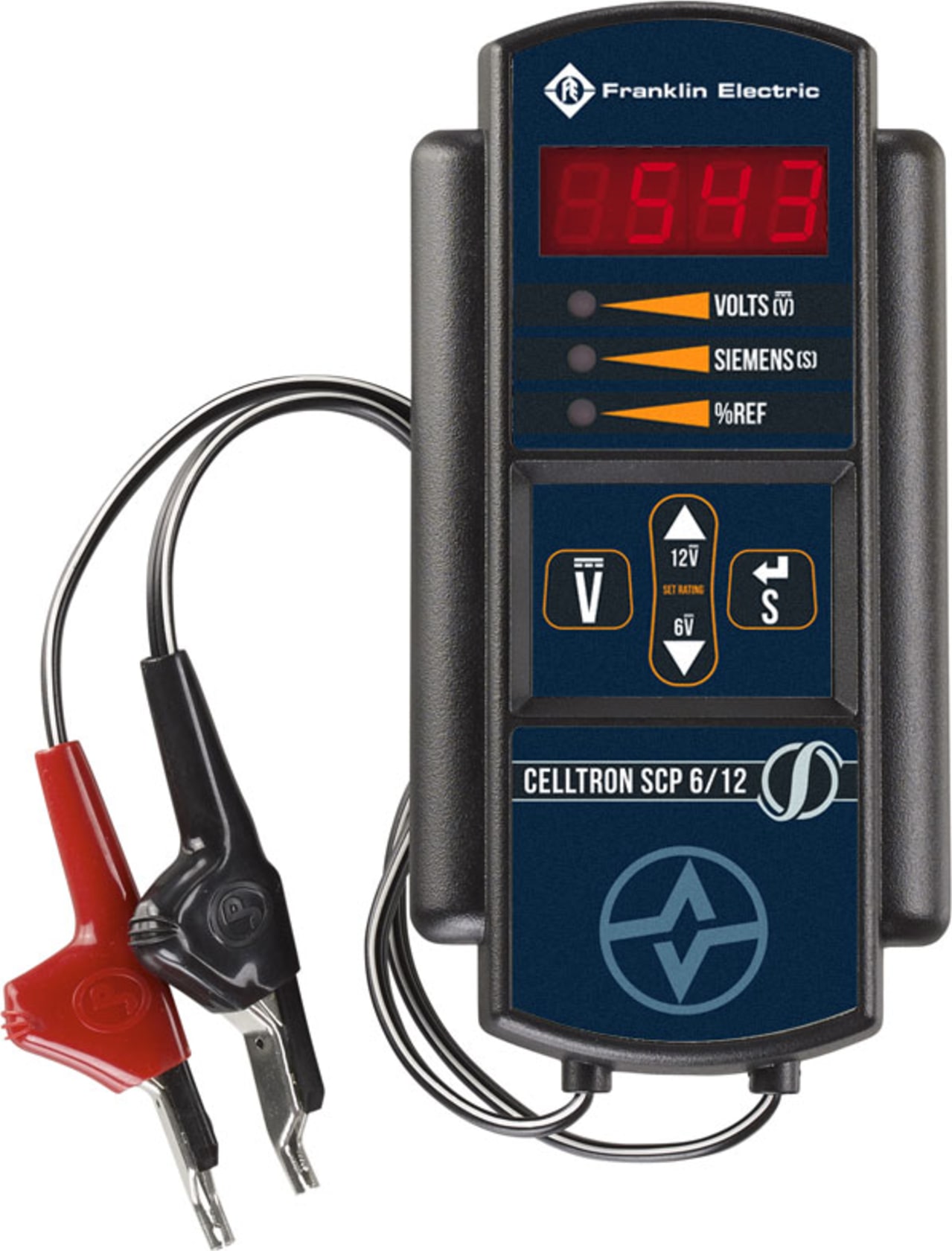

Franklin Grid Secure Power 6/12 Battery Conductance Tester

The CELLTRON SECURE POWER BATTERY CONDUCTANCE TESTER provides a simple method to screen the state-of-health of popularly sized 6 volt and 12 volt sealed lead-acid batteries for security systems, emergency lighting, mobility vehicles, uninterruptible and power supplies.The SCP 6/12 battery conductance tester provides a simple method to screen the state-of-health of popularly sized 6-Volt and 12-Volt sealed lead-acid batteries.

Operating Range

• Offline testing of 6 and 12 volt nominal batteries from 1.2 to approximately 55 ampere hours in capacity
• Voltmeter: +6.0 to +14.0 VDC
• Conductance: 20 to 1200 siemens
• Operating Temperature: -18 to 50ºC (0 to 120ºF)

Application Compatibility

• A SOLUTION FOR CODE NFPA-72
• Small Systems
• Single phase UPS battery testing

Easy to set up, easy to use

• Battery voltage and conductance are displayed in less than 10 seconds
• Tests 6V and 12V batteries
• No external power source needed

The SCP 6/12 helps to ensure the operation of critical systems despite power loss. The SCP 6/12 utilizes patented conductance technology, a passive method that minimizes technician risk and battery stress. A conductance method recognized by IEEE standard for the testing of lead-acid batteries with proven correlation to battery capacity. Prioritizes battery replacements and additional testing for cost-effective system management.

Test batteries used in:

• Security systems
• Fire alarms
• Emergency lighting
• Mobility vehicles
• Small UPS systems
