The professional’s choice when demanding the highest sensitivity

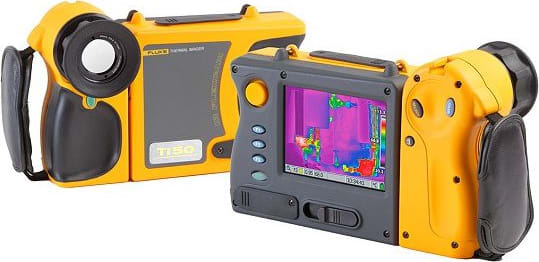

Choose the Fluke Ti5x models when you need the best images. They feature 320 x 240 detectors with industry leading thermal sensitivity (= 0.05 °C;50 mK NETD) for high resolution, ultra high-quality images. In addition, with a 60 Hz detector acquisition rate temperatures are displayed live on the large 5-inch color display.

All FT models feature the innovative IR-Fusion® technology. IR-Fusion captures a visible light image in addition to the infrared image and takes the mystery out of IR image analysis. It helps to better identify and report suspect components and enable the repair to be done right the first time.

Typical applications:

• Predictive maintenance – Identify electrical and mechanical problems before they cause failure
• Industrial maintenance – Check whether repairs have been performed successfully
• Quality control – Examine prototypes and refine thermal management designs
• Process monitoring – Real-time observation to ensure efficient and safe operation

See exactly what you are viewing
Fluke IR-Fusion® technology links a real world visual image with a thermal image. It merges the two images into one, with the possibility to blend between the two images or create picture-in-picture combinations. Alarm limits can be superimposed over the visible light image to exactly pinpoint the components exceeding a specified temperature limit. Both the visual images and thermal images are available for use in reports. This speeds up documentation by reducing the need to look for individual images taken with a separate digital camera. IR Fusion helps to better identify and report suspect components and enable the repair to be done right the first time.

Large, sharp thermal images
Thanks to the largest display (five-inch) available on this type of thermal imager in combination with low-noise VOx sensors, the Fluke IR FlexCam units produce exceptionally high-quality images making even the smallest temperature differences visible. This is comparable with images normally only obtained on far more expensive instruments

A sharp image in every situation
The innovative 180 ° articulating lens makes it possible to view and capture images in areas with poor accessibility. The display remains clearly visible while viewing over high objects, under a machine or around immoveable obstructions. The SmartFocus wheel simplifies getting a stable and sharp image. No need to take your hand off the instrument to turn a focus ring.

Make anomalies visible
Thanks to built-in functions like AutoCapture, the IR FlexCam Thermal Imagers help to troubleshoot difficult problems. The instrument is easily set up to automatically capture only those images where a temperature limit is exceeded. This way, difficult to find intermittent problems can be captured and analyzed quicker by concentrating only on the images containing the anomalies.

Analysis and reporting comes standard
The SmartView software (supplied with the unit) includes a complete range of infrared image viewing, analysis, annotation and reporting tools. It even allows for customized reports to accommodate specific company work processes or requirements like multiple image reporting and comparisons.

Radiometric measurement – the ‘data behind the picture’
Fully radiometric thermal imagers capture and store calibrated temperature data for the matrix of thousands of points that make up a thermal image. This makes it possible to perform detailed analysis and change key parameters like emissivity or temperature range either in the field on the camera or in the office using the PC software.

Electrical Applications
Three-Phase Switch Gear Load Imbalance
Breaker Panel		Control Panel
Control Panel		Hot Plug	Overloading Lighting Control Circuits
Overloading Lighting Control Circuits
Overheating Pole Transformer	Transformer	Substation

Mechanical Applications
Bearing Caps	Compressor Heads		Compressor Tank
Compressor Tank		Condenser
Abnormal Uneven Heating On Motor
Abnormal Uneven Heating On Motor	Industrial Compressor
Pumps

Process Applications
Tank Level Too Low
