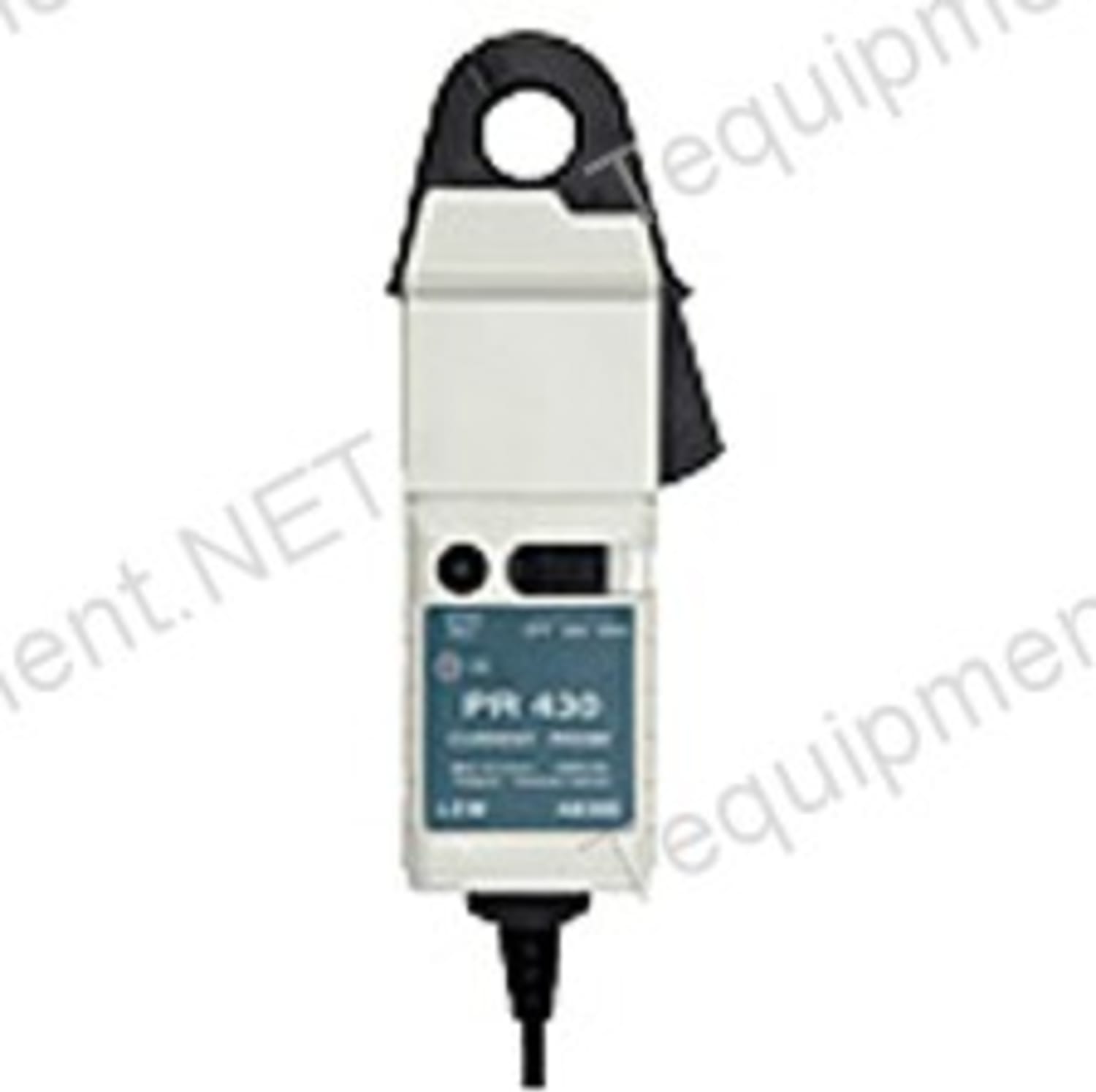

Fluke PR430 Discontinued Products

Name: Fluke PR430 Discontinued Products
Brand: Fluke
SKU: FlukePR430
Price: 254.33 USD
Availability: InStock

0 reviews | UPC: 0 95969 32542 4 | Model: Fluke PR430

Compare

60.95.60.430.0, Pr 40A/400A Ac/Dc 20Khz 19Mm Osc

Advantages:

View Product Details

List Price: $299.00

In Stock:

Recommended for you

Electrical Characteristics
Current Ranges	40 A and 400 A ACRMS or DC
Measuring Ranges	± 60 A and ± 600 A
Output Sensitivity	10 mV/A (40 A) 1 mV/A (400 A)
Accuracy (at +25°C)	(40A range) ± 1% of reading ± 50 mA (400A range) ± 1% of reading ± 300 mA
Resolution	± 50 mA (40 A) ± 100 mA (400 A)
Load Impedance	> 10 k Ohms and ≤ 100 pF
Conductor Position Sensitivity	± 1.5% relative to centre reading
Frequency Range(small signal)	DC to 20 kHz (- 2 dB)
Phase Shift below 2 kHz	< 2 degrees
Temperature Coefficient	± 0.1% of reading / °C
Power Supply	9 V Alkaline, MN1604/PP3 40 Hours, low battery indicator
Working Voltage (see Safety Standards section)	300 V ACRMS or DC
General Characteristics
Maximum Conductor Size	19 mm diameter
Output Connection	safety BNC connector
Output Zero	Manual adjust via thumbwheel
Cable Length	2 meters
Operating Temperature Range	0 to +50 °C
Storage Temperature Range (with battery removed)	-20 to +85 °C
Operating Humidity	15% to 85% (non condensing)
Weight	250 g
