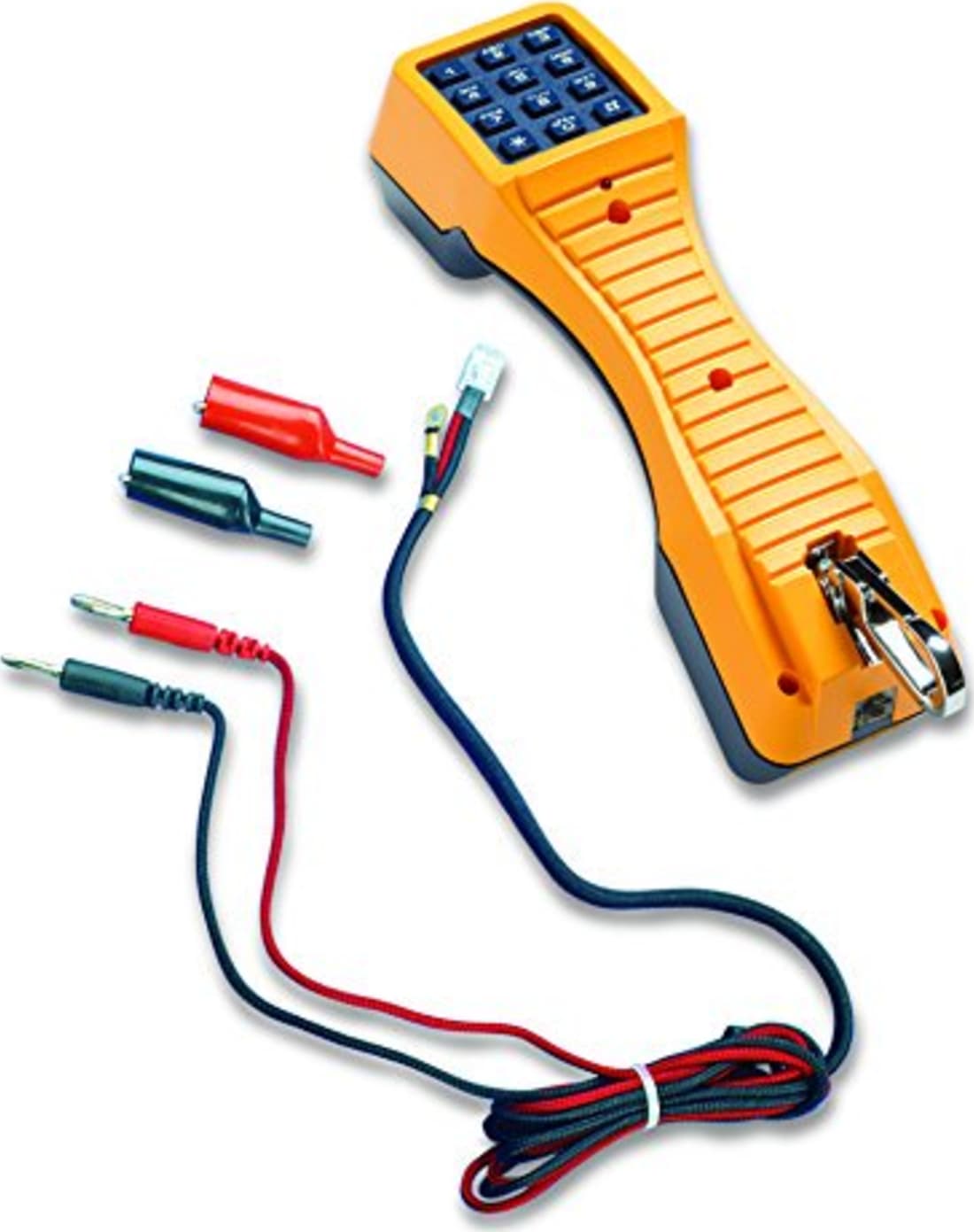

Fluke Networks 19800003 TS19 Test Set with Banana Jacks to Alligator Clips-TS19, Complete

Name: Fluke Networks 19800003 TS19 Test Set with Banana Jacks to Alligator Clips-TS19, Complete
Brand: Fluke Networks
SKU: Fluke 19800003
Price: 176.42 USD
Availability: InStock

0 reviews | Catalog: 2326557 | UPC: 754082038320 | Model: Fluke Networks 19800003

Compare

TS19 TEST SET WITH BANANA JACKS TO ALlIGATOR CLIPS-TS19, COMPLETE

TS19 Test Set with Banana Jacks to Alligator Clips-TS19,Complete
High impedance DataSafe operation in monitor mode
Tone (DTMF) and pulse operation
Last number redial
Polarity indication in talk mode

View Product Details

List Price: $200.99

Your Price: $176.42

Sign-in for GSA and EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

TS19 Test Set with Banana Jacks to Alligator Clips

HIGHLIGHTS:

DATASAFE™
TONE OR PULSE OPERATION
TALK/MONITOR CAPABILITIES
LAST NUMBER REDIAL

Fluke Networks TS® 19 Test Sets

The Fluke Networks TS19 Test Set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians. Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines. Features such as tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.

High impedance DataSafe operation in monitor mode
Tone (DTMF) and pulse operation and last number redial
Polarity indication in talk mode

Telephone Butt-In Test Sets Comparison Chart
	TS®54 TDR	TS®52 PRO	TS®22A	TS®22	TS®25D	TS®30 / TS®120*	TS®19
TDR for distance to Open, Shorts	✔
Built-in toner	✔
Display—backlit LCD and glow-in-the-the dark keypad	✔	✔			LCD only
Extended range high-impedance DataSafe operation in monitor mode	✔	✔			✔
High-impedance DataSafe™ operation in monitor mode	✔	✔	✔		✔	✔	✔
Data lockout protection	✔	✔			✔
DSL/POTS filtering technology	✔	✔			✔
Low/high voltage indication	✔	✔			✔
Low current (mA) indication	✔	✔			✔
Over voltage and current protection	✔	✔	✔	✔	✔	✔
Waterproof—exceeds American Military Spec. MIL-STD-810E	✔	✔
RainSafe™—safe in severe weather conditions	✔	✔	✔	✔		✔
DropSafe™—passes 20 foot (6 meter) drop test onto concrete	✔	✔	✔	✔		✔
Stores nine 18-digit numbers in repertory dialer (speed dialing)	✔	✔	✔	✔	✔
*TS120 for outside North America only. 67/33 break/make ratio.

Electrical
Loop Limit	2.4 kΩ maximum at 48 VDC (nominal 15 mA minimum loopcurrent)
DC Resistance (Talk Mode)	150 Ω typical at 80 mA current
AC Impedance (Monitor Mode)
Low impedance (Ring position)	600 Ω at 1 KHz typical
High impedance (HI Z position)	100 kΩ minimum at 1 KHz
Rotary Dial Output	10 pps .5 pps
Pulsing Rate	60 % ? 2 %
Percent Break	800 ms typical
Interdigit Interval Leakage During Break	> 50 kΩ
DTMF Output	?1 % maximum
Tone Frequency Error Level per Tone Pair	dBm maximum, - dBm minimum
High versus Low Tone Difference	4 dB maximum
Physical
Length	8.75 in (22.2 cm)
Width	2.375 in (6.03 cm)
Height	3.375 in (8.57 cm)
Weight	10.8 oz (.307 kg) maximum
Environmental
Temperature
Operating	-5 ?C to ?C
Storage	-40 ?C to ?C
Drop	1 meter, 4 times
Altitude	To 3,000 meters (10,000 feet) maximum
Relative Humidity	10 %to 80 % (non-condensing)
Regulatory Standards Used	47 CFR Part 15, Subpart B ICES-003 Issue 3 AS/NZS 3548 EMC Directive 89/336/EEC, EN 55022:98, EN 61326:97, A1:98 Annex C, EN 61000-4-2, EN 61000-4-3 LV Directive 73/23/EEC, EN 610010.1 (1993)
Certifications and Compliance	Conformit? Europ?enne. Conforms to relevant European Union directives. CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
