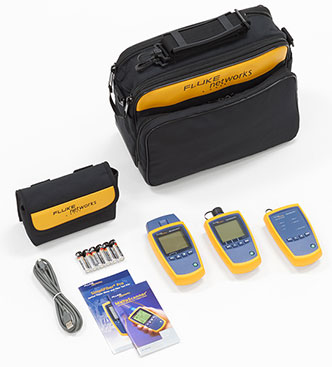

Test Connectors |
Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs
Coax: F-connector for 75 O, 50 O, 93 O cables |
Cable Tests |
Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen |
Tone Generator |
IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz] |

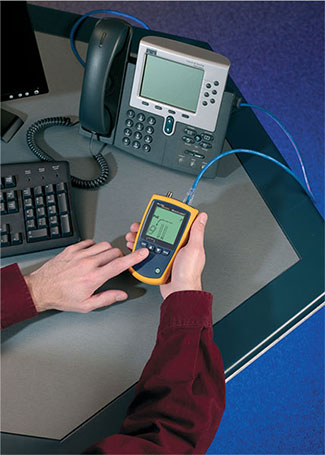

PoE Detection |
Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices |
Ethernet Port Test |
Advertised speed of 802.3 Ethernet ports (10/100/1000) |
Power Source |
Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries
Battery life: 20 hours of typical use
Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
Dimensions |
3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) |
Weight |
0.8 lbs. (363 grams) |
Display |
Monochrome liquid crystal display (LCD) with backlight |
Calibration |
User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable |
Operating Temperature |
32 °F to 113 °F (0 °C to 45 °C) |
Storage Temperature |
-4 °F to +140 °F (-20 °C to +60 °C) |
Operating Humidity |
90 % (50 °F to 95 °F; 10 °C to 35 °C) |
(%RH without condensing) |
75 % (95 °F to 113 °F; 35 °C to 45 °C) |
Shock Vibration |
Meets requirements for MIL-PRF-28800F for Class 2 random vibration
1 m drop test with and without wiremap adapter attached |
Safety |
EN 61010-1 2nd Edition |
Altitude |
4000 m; Storage: 12000 m |
EMC |
EN 61326-1 |
Agency Certifications |
N10140 C-Tick EMC standard; FCC Part 15 Class A; CE
European Union Directives Pollution Degree 2 |
Warranty |
One year |
Environmental Specifications |
Temperature range |
Operating: -10º C to 50º C
Storage: -20º C to 50º C |
Operating Humidity |
95% (10º C to 35º C) Non-Condensing
75% (35º C to 40º C) Non-Condensing
Uncontrolled <10º C |
EMI, RFI, EMC |
Standards compliant1 |
Notes |
1 Conforms to relevant European Union directives; Conforms to relevant Australian standards; Listed by the Canadian Standards Association; Complies with 21CFR.1040.10,11, and EN60825-1, 2:2007 (Class 1, Hazard Level 1) |
Optical Power Meter |
Detector Type |
InGaAs |
Calibrated Wavelengths |
850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm |
Emitter wavelengths |
850/1300 Source: 850 nm and 1300 nm
1310 Source: 1310 nm
1550 Source: 1550 nm |
Measurement Range |
+10 to -52 dBm (850 nm)
+10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm) |
Power Measurement Linearity |
±0.2 dB (850 nm)1
±0.1 dB (1300, 1310, 1490, 1550, 1625 nm)2 |
Power Measurement Uncertainty3 |
±0.25 dB |
Display Resolution, dB or dBm |
0.01 dB |
Auto Dual-Wavelength Switching |
Yes |
Power Display Units |
dBm, mW, µW |
Auto-Wavelength Detection |
Yes |
Data Storage |
1000 records, multiple wavelengths per record |
External Interface |
USB, 2.0 full speed |
Optical Connector |
Removable adapter, SC adapter as default, optional adapters include LC, ST |
Display update rate |
1 reading per second |
Reference |
Individually set for each wavelength |
FindFiber ID detection |
Yes |
Power Requirement |
2 AA Alkaline batteries |
Battery Life4 |
> 50 Hours (typical) |
Automatic Power Off |
10, 20, 30 or 60 minutes (can be disabled by user) |
Low Battery Warning |
Yes, low battery icon blinks |
Size (L x W x H) |
6.4 in x 3.2 in x 1.5 in (16.5 cm x 8.0.cm x 3.9 cm) |
Weight |
11.5 oz (325 grams) |
Notes |
1 For 850nm, ±0.2 dB for power from 0 to -45 dBm, ±0.25 dB for power < -45 dBm
2 ±0.1dB for power from 0 to -55 dBm, ±0.2 dB for power > 0 dBm and < -55 dBm
3 23°C ±2°C, power level -20dBm, continuous wave, 62.5/125µm at multi mode wavelengths, 9/125 µm at 1310,1490, 1550 and 1625 nm; add 0.1 dB for 1625 nm
4 For measured power levels 0 dBm or less, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries. |
Multimode Optical Source |
Emitter Type |
LED |
Central Wavelength |
850 nm, 1300 nm |
Wavelength Accuracy |
850 nm: +30/- 10 nm
1300 nm: ± 20 nm |
Spectral Width (FWHM) |
850 nm: 50 nm (typical)
1300 nm: 135 nm (typical) |
Minimum Output Power |
850/1300 nm: ³ -20 dBm |
Power Output Stability1 |
±0.1 dB over 8 hours |
Auto Dual-Wavelength Switching |
Yes. Can be enabled/disabled by user. |
Optical Output Connector |
Fixed SC |
FindFiber Code Generation |
Yes. Fixed at ID 1. |
Modes |
CW, 2 kHz modulated, Auto-wavelength |
Power Requirement |
2 AA Alkaline batteries. |
Battery Life2 |
40 hrs (typical) |
Automatic Power Off |
30 minutes (can be disabled by user) |
Low Battery Warning |
Yes, LED blinks |
Size (L x W x H) |
5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1cm) |
Weight |
1.8 oz (278 g) |
Notes |
1 23° C ± 2° C, after 5 minutes warm-up time
2 In auto-wavelength mode, battery life depends on the condition and type of batteries used. Fluke Networks recommends alkaline batteries. |
