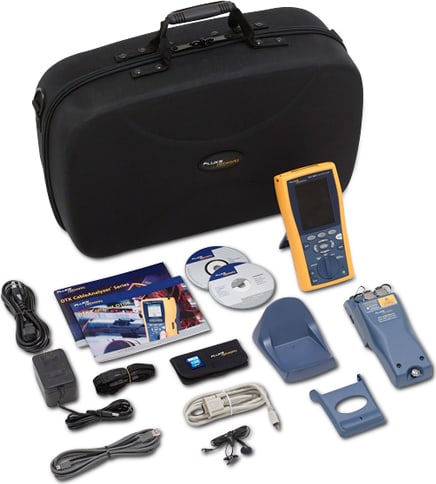

Key Specifications - DTX with OTDR |
|
Dimensions |
Mainframe with Compact OTDR installed: 21.6 cm x 11.2 cm x 9.1 cm (8.5 in x 4.4 in x 3.6 in) nominal |
|
Weight |
Mainframe with DTX Compact OTDR installed: 1.36 kg (3 lbs) |
|
Display size |
9.4 cm (3.7 in) diagonal, 240 dots wide by 320 dots high, passive color, transmissive LCD with backlight. |
|
Case |
High-impact plastic with shock absorbing over mold (mainframe) |
|
Languages supported |
English, French, German, Spanish, Portuguese, Italian, Japanese, and Simplified Chinese |
|
Operating temperature |
0° C to 45° C (32° F to 113° F) |
|
Non-operating temperature |
Storage: -20° C to 60° C (-4° F to 140° F) |
|
Relative humidity |
% RH operating without condensation: 0° C to 35° C (32° F to 95° F): 0% to 90%
35° C to 45° C (95° F to 113° F): 0% to 70% |
|
Trace file format |
LinkWare or Bellcore GR-196 V1.1 |
|
Typical trace storage capability |
>200 internal, thousands on removable MMC/SD card |
Altitude
(OTDR module) |
Operating: 3000 m
Storage: 12000 m |
|
EMC |
EN 61326-1 |
|
OTDR laser safety |
Class I CDRH, complies to EN 60825-2 |
|
Battery pack |
Removable/rechargeable 7.4 V, 4000 mAh Li Lithium-ion |
|
Battery pack life |
>8 hours |
Charge time*
(with tester off) |
4 hours (below 40° C) |
|
Vibration |
Random, 2 g, 5-500 Hz |
|
Shock |
1 meter drop test with and without module attached to mainframe |
|
Safety class |
Class I C , Class 1 CDRH complies to EN60825-2 |
|
Safety |
CSA C22.2 No. 1010.1: 1992, EN 61010-1 1st. edition + amendments 1, 2 |
|
Calibration |
Service center calibration period is one year |
|
VFL specifications (23º C) |
Output power
(into SM fiber) |
316 µw (-5 dBm) = peak power = 1.0 mw (0 dbm) |
|
Operating wavelength |
650 nm nominal |
|
Spectral width (RMS) |
±3 nm |
|
Output modes |
Continuous wave and pulse mode (2-3 Hz blink frequency) |
|
Connector adapter |
2.5 mm universal |
|
VFL laser safety |
Class II CDRH |
