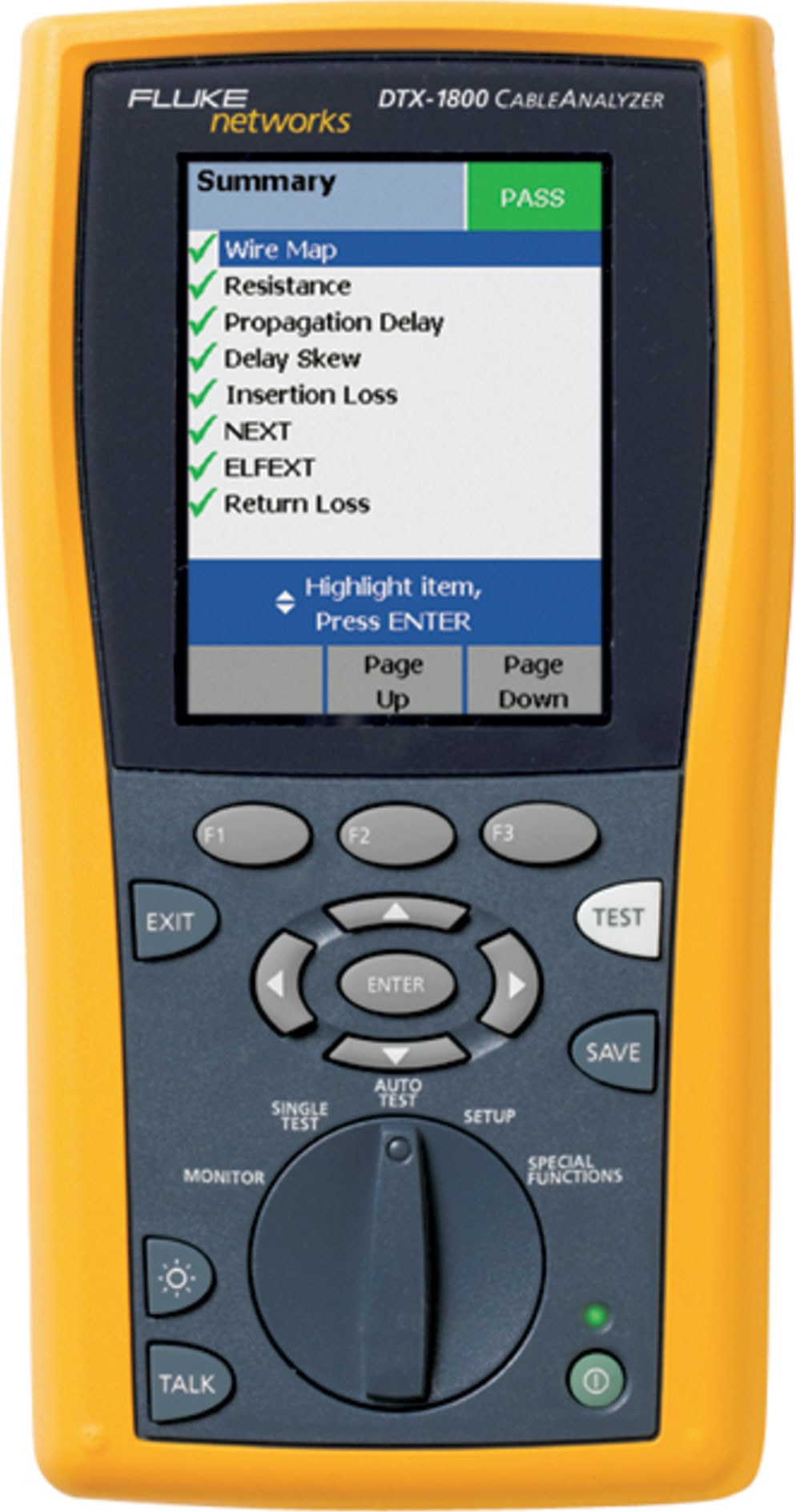

Fluke Networks DTX-1800-MO Multi-Mode Copper/Fiber Kit w/ DTX Compact OTDR Module

Name: Fluke Networks DTX-1800-MO Multi-Mode Copper/Fiber Kit w/ DTX Compact OTDR Module
Brand: Fluke Networks
SKU: Fluke DTX-1800-MO
Price: 22995.00 USD
Availability: InStock

0 reviews | Model: Fluke Networks DTX-1800-MO

Images (3) | Videos (3)

Compare

MULTIMODE FIBER KIT CONTAINS DTX-1800-M 120, DTX-OTDR-QMOD, NFK2-LAUNCH

Streamlines setup, record-fast testing or trouble shooting, and reporting results to the customer
Capable of performing Cat 6 certification tests in just 9 seconds
Provides quick, and easy-to-understand directions to identify the point of failure and the possible reasons of failure
Provides a bandwidth of 900 MHz that supports video distribution, Class F and 10 Gigabit Ethernet
Incorporates a 3.7", 240x320 dots transmissive LCD display with backlight
Equipped with a rotary knob and USB port that allows high-speed transfer of data
Flaunts a rugged overmold bonded to case, that stands up to tough conditions and a lightweight and ergonomic design

View Product Details

List Price: $22,995.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Fiber Optic - Miscellaneous

for the Fluke Networks DTX-1800-MO

Fluke Networks NFA-FC Fluke Networks NFA-FC FC Test Adapters - Set Of 2

Catalog: 2635952

(0)

In Stock!

Add to Cart

Fluke Networks NFA-LC Fluke Networks NFA-LC LC Test Adapters - Set Of 2

Catalog: 2635934

(1)

In Stock!

Add to Cart

Fluke Networks NFA-SC Fluke Networks NFA-SC SC Test Adapters - Set Of 2

Catalog: 2635929

(1)

In Stock!

Add to Cart

Fluke Networks NFA-ST Fluke Networks NFA-ST ST Test Adapters - Set Of 2

Catalog: 2635941

(0)

In Stock!

Add to Cart

The DTX-1800 CableAnalyzer™ from Fluke Networks® gives you a complete solution that streamlines every aspect of the certification job, such as setup, record-fast testing or trouble shooting, and reporting results to the customer. It performs Cat 6 certification tests in just 9 seconds - in full compliance with industry standards and with superior accuracy. It also provides quick, and easy-to-understand directions to identify the point of failure and the possible reasons of failure.

The DTX-1800 Cable Analyzer™ provides a bandwidth 900 MHz that supports video distribution, Class F and 10 Gigabit Ethernet. Its 3.7", 240x320 dots transmissive LCD display with backlight makes for easy viewing. Its rotary knob makes learning easy and operation simple, keeping you in the know as to what test mode is selected. The USB port facilitates high-speed transfer of data. Featuring a rugged overmold bonded to case, that stands up to tough conditions and a lightweight and ergonomic design, the DTX-1800 CableAnalyzer™ makes for an ideal portable device for easy field use.

Cable Types Standard Link Interface Adapters	Shielded and unshielded Twisted Pair (STP, FTP, SSTP and UTP) LAN cabling: TIA Category 3, 4, 5, 5E and 6: 100? ISO/IEC Class C and D: 100? and 120? ISO/ IEC Class E, 100W ISO/ IEC Class F, 100? Cat 6/ Class E permanent link adapters Plug type and life: shielded and unshielded cable, TIA Cat 3, 4, 5, 5e, and 6 and ISO/IEC Class C, D and E permanent link Cat 6/Class E channel adapters Plug type and life: shielded and unshielded cable, TIA Cat 3, 4, 5, 5e, and 6 and ISO/IEC Class C, D and E channels
Test Standards	TIA Category 3 and 5e per TIA/EIA-568B TIA Category 5 (1000BASE-T) per TIA TSB-95 TIA Category 6 per TIA/EIA-568B.2-1 TIA Category 6A per TIA/EIA-568B.2-10 (DTX-1800 only) TIA TSB-155 (DTX-1800 only) ISO/IEC 11801 Class C, D, and E ISO/IEC 11801 Class Ea, F (DTX-1800 only) EN 50173 Class C, D, E EN 50173 Class F (DTX-1800 only) ANSI TP-PMD IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T IEEE 802.3an 10GBASE-T IEEE 802.5 (STP cabling, IBM Type 1, 150? ) Token Ring, 4 Mbps and 16 Mbps
Speed of Autotest	Full 2-way Autotest of Category 6 Twisted-Pair links in 9 seconds or less Full 2-way Autotest of ISO/IEC Class F links in 22 seconds
Supported Tests Parameters	(The selected test standard determines the test parameters and the frequency range of the tests) Wire Map Length Propagation Delay Delay Skew DC Loop Resistance Insertion Loss (Attenuation) Return Loss (RL), RL @ Remote NEXT, NEXT @ Remote Attenuation-to-crosstalk Ratio (ACR), ACR @ Remote ELFEXT, ELFEXT @ Remote Power Sum ELFEXT, PSELFEXT @ Remote Power Sum NEXT, PSNEXT @ Remote Power Sum ACR, PSACR @ Remote

Cable Tone Generator	Generates tones that can be detected by a tone probe such as a Fluke Networks IntelliTone probe. The tones are generated on all pairs. Frequency range on all pairs. Frequency range of tones: 440 Hz to 831 Hz
Display	3.7 in (9.4 cm) diagonal, 240 dots wide by 320 dots high, passive color, transmissive LCD with backlight.
Input Protection	Protected against continuous telco voltages and 100 mA over-current. Occasional ISDN over-voltages will not cause damage.
Case	High impact plastic with shock absorbing overmold
Dimensions	Main unit and Smart Remote: 8.5 in x 4.4 in x 2.4 in (21.6 cm x 11.2 cm x 6cm), nominal
Weight	2.4 lb (1.1 kg), nominal (without adapter or module)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to ?°F (-20°C to °C)
Operating relative humidity (% RH without condensation)	32°F to 95 °F (0°C to 35°C): 0 % to 90 % 95°F to 113°F (35°C to 45°C): 0 % to 70 %
Vibration	Random, 2 g, 5 Hz -500 Hz
Shock	1 m drop test with and without module and adapter attached
Safety	CSA C22.2 No. 1010.1: 1992 EN 61010-1 1st Edition Amendments 1, 2
Pollution degree	Pollution Degree 2 as defined in IEC 60664 and applied to IEC 60950 "Safety of Information Technology Equipment, 1999"
Altitude	Operating: 4000 m; Storage: 12000 m
EMC	EN 61326-1
Power	Main unit and remote: Lithium-ion battery pack, 7.4 V, 4000 mAh Typical battery life: 12 to 14 hours Charge time (with tester off): 4 hours (below 40 °C) AC adapter/charger, USA version: Linear power supply; Input 108 V ac to 132 V ac, 60 Hz ; Output 15 V dc, 1.2 A AC adapter/charger, international version: Switching power supply; Input 90 V ac to 264 V ac, 48 to 62 Hz; Output 15 V dc, 1.2 A (isolated output) Memory backup power in main unit: Lithium battery Typical life of lithium battery: 5 years The battery will not charge at temperatures outside of 0°C to 45°C (32°F to 113°F). The battery charges at a reduced rate between 40°C and 45°C (104°F and 113°F).
Languages Supported	English, French, German, Spanish, Portuguese, Italian, Japanese, and Simplified Chinese
Calibration	Service center calibration period is 1 year

Performance Specifications	Note: all specifications for tests on twisted-pair cabling apply to 100 ? cable. Contact Fluke Networks for information on measurement performance for cable with a different impedance.
Baseline accuracy	The baseline accuracy of all DTX Series testers meets or exceeds the requirements of Level IV as in draft 2nd Edition of IEC 61935-1 over the frequency range supported by the tester.
Category 6/Class E link test modes (and lower link categories)	DTX CableAnalyzer far exceeds Level III requirements of TIA/EIA-568-B.2-2 and IEC 61935-1
Class F link test modes	DTX-1800 is compliant with Level IV requirements as in the draft 2nd edition of IEC 61935-1.
Length for Twisted Pair Cabling	(Length specs do not include the uncertainty of the cable's NVP Value)
Parameter	Single-ended Test Dual-ended Test (Main and Remote)
Range	800 m (2600 ft) - Single-ended Test 150 m (490 ft) - Dual-ended Test (Main and Remote)
Resolution	0.1 m or 1 ft - Single-ended Test 0.1 m or 1 ft - Dual-ended Test (Main and Remote)
Accuracy	± (1m 4%) - Single-ended Test ± (1m 4%) - Dual-ended Test (Main and Remote)
Delay Skew
Parameter	Twisted Pair Cabling
Range	0 ns to 100 ns
Resolution	1 ns
Accuracy	± 10 ns
DC Loop Resistance Test
Parameter	Twisted Pair Cabling
Range	O ? to 53?
Resolution	0.1 ?
Accuracy	± (1 ? 1%)
Overload Recovery Time	Less than 10 minutes to rated accuracy following over-voltage. Referencing is required after repeated or prolonged over-voltage.

DTX CableAnalyzer Series Selection Guide
Model	DTX1800	DTX1200
Cat 6 Autotest time (seconds)	9	9
Maximum bandwidth (MHz)	900	350
Accuracy level	IV	IV
Color display
Stores graphical results data
Internal memory capacity (graphical Cat 6)	250	250
Removable memory card interface
Cat 6 graphical results for each of 32 MB multiple	600	600
Lithium ion batteries – battery life	12 hours	12 hours
Advanced diagnostics
AC Wire Map capability
USB interface
Serial interface
Cat 6A permanent link adapter
Cat 6 channel adapter
Accepts resident fiber module
Start autotest at smart remote
Talk between main and smart remote
DTX Compact OTDR Module	option	option
Fiber Loss/Length Test Module (multimode, singlemode, or gigabit multimode)	option	option
Fiber Compact OTDR Module	option	option
DTX 10 Gig Kit	option	n/a
Network Service Module	option	option
Patch Cord Test Adapters	option	option
Class F Adapters	option	n/a
Coax Cable Test Adapters	option	option
Multimedia memory card		option
USB cable
Serial computer interface cable		option
Talk headset
Carrying case
Model	DTX1800	DTX1200
= Feature or accessory is available in the standard product configuration n/a = The feature is not available; the accessory is not applicable option = The accessory can be purchased as an optional item.
