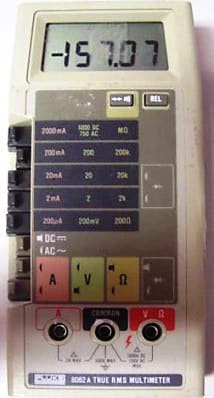

Fluke 8062A Digital Multimeter, 4.5 Digits

Name: Fluke 8062A Digital Multimeter, 4.5 Digits
Brand: Fluke
SKU: Fluke8062A
Availability: InStock

0 reviews | Model: Fluke 8062A

Compare

Digital Multimeter, 4.5 Digits

True-rms AC voltage and current measurement (Volts to 100 kHz [8060A]; Volts to 30 kHz [8062A])
Fast audible-visual continuity tests
Relative Reference (offset): When measuring ohms with the 8060A or 8062A, the relative reference function displays only the difference between a stored reference value and a measured value, even if the range was changed between readings. Relative mode works in all functions and ranges.
Low-power ohms on all resistance ranges, for in-circuit resistor tests
Constant-current diode test mode
Resistance and conductance measurements
Frequency and dB measurements (8060A). The 8060A's direct dB readout (referenced to 600Ω) easily and accurately measures the dB gain or loss of amplifiers, filters or attenuators.
Digital Display/Counts: 20000
Resistance to 300 MΩ

View Product Details

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Fluke 8062A

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Digital Multimeter, 4.5 Digits

Fluke's 8060A and 8062A 4-1/2-digit/20000 Count DMMs offer more measurement capabilities than many bench/portable models. Well suited for engineers and technicians working in audio, video, telecommunications, or computer technology, both meters combine precision and accuracy with a wealth of features to fit nearly every application.

Technical Specifications
VDC	Range and Resolution: 200.00 mV, 2.0000V, 20.000V, 200.00V, 1000.0V 8060A: 200.00 mV, 2.0000V, 20.000V, 200.00V, 1000.0V 8062A: ±(0.05%+2)
VAC (True-RMS, AC Coupled)	Range and Resolution: 200.00 mV, 2.0000V, 20.000V, 200.00V, 750.0V 8060A: ±(0.2%+10) 8062A: ±(0.5%+10)
dBm, 600Ohms reference	Range and Resolution: -50.00 - +60.00 dBm 8060A: ±(0.15 dB) 8062A: NA
ADC	Range and Resolution: 200.00 µA, 2.0000 mA, 20.000 mA, 200.00 mA, 2000.0 mA 8060A: ±(0.2%+2) 8062A: ±(0.3%+2)
AAC (True-RMS)	Range and Resolution: 200.00 µA, 2.0000 mA, 20.000 mA, 200.00 mA, 2000.0 mA 8060A: ±(0.75%+10) 8062A: ±(0.75%+10)
Resistance	Range and Resolution: 200.00Ohms, 2.0000 kOhms, 20.000 kOhms, 200.00 kOhms, 300.0 MOhms 8060A: ±(0.07%+2) 8062A: ±(0.1%+2)
Frequency	Range and Resolution: 200.00 Hz, 2.0000 kHz, 20.000 kHz, 200.00 kHz 8060A: ±(0.05%+1) 8062A: NA
Conductance	Range and Resolution: 2000.0 nS (equivalent to 500 kOhms) 8060A: ±(0.5%+20) 8062A: NA

General Specifications
Battery Life	170 hours typical (9V alkaline)
Weight	0.41 kg (0.90 lb)
Size	180 mm L x 86 mm W x 45 mm D (7.1" L x 3.4" W x 1.8" D)
One Year Warranty	One year guaranteed calibration

Tech Specs

Multimeters Template
Style	Hand-Held
