Fluke 87-5/E KIT Discontinued Products

Name: Fluke 87-5/E KIT Discontinued Products
Brand: Fluke
SKU: Fluke87-5/E KIT
Price: 368.35 USD
Availability: InStock

0 reviews | Model: Fluke 87-5/E KIT

Compare

Fluke-87V/E Kit INDUSTRIAL TRUE RMS MULTIMETER COMBO KIT

Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87V)
Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87V)
Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
Large digit display with bright, two-level backlight makes the 80 Series V significantly easier to read than older models
Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Large display digits and 2 level bright white backlight for increased visibility
Withstands hazardous 8,000 volt spikes caused by load switching and faults on industrial circuits and complies with second edition ANSI and IEC electrical safety standards
Improved sleep mode for long battery life
Relative mode to remove test lead resistance from low ohms measurements
Auto and manual ranging for maximum flexibility
Lifetime Warranty

View Product Details

List Price: $409.95

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the Fluke 87-5/E KIT

Fluke AC285 SUREGRIP LARGE ALLIGATOR CLIP Banana connector. Use with a Banana to...

Catalog: 1610159

(15)

In Stock!

Add to Cart

Fluke BP980 Fluke BP980 Double Stacking Banana Plug Adapter Kit

Catalog: 1616807

(0)

In Stock!

Add to Cart

Fluke TL224 Fluke TL224 SureGrip Insulated Test Leads (Red and Black)

Catalog: 1610198

(13)

In Stock!

Add to Cart

Fluke C115 Fluke C115 Soft Carrying Case with Two Padded Pockets

Catalog: 2826063

(3)

In Stock!

Add to Cart

Fluke C25 Fluke C25 Soft Carrying Case with Zipper, Belt Loop and Inner Accessories...

Catalog: 681114

(5)

In Stock!

Add to Cart

Fluke C550 Fluke C550 Rugged Soft Tool Bag with Zipper and Inner Pockets

Catalog: 1547919

(4)

In Stock!

Add to Cart

Fluke I1010 Fluke I1010 AC/DC Current Clamp/Banana Plugs, 1A-600A AC/1A-1000A DC

Catalog: 617735

(2)

In Stock!

Add to Cart

Fluke I200 200 AMP CLAMP, CURRENT OUTPUT, BANANA

Catalog: 664755

(2)

In Stock!

Add to Cart

Fluke I410 Fluke I410 AC/DC Current Clamp/Banana Plugs, 1A-400A AC/DC

Catalog: 617727

(6)

In Stock!

Add to Cart

Fluke TP920 Fluke TP920 Test Probe Kit for Models TL71 and TL75 (Red and Black)

Catalog: 1616659

(2)

In Stock!

Add to Cart

Fluke TL220 SUREGRIP INDUSTRIAL TEST LEAD SET

Catalog: 2003625

(5)

In Stock!

Add to Cart

Fluke TL238 TEST LEAD SET FOR HIGH ENERGY ENVIRONMENT

Catalog: 2132831

(1)

In Stock!

Add to Cart

Fluke TL81A TEST LEAD SET, DELUXE ELECTRONIC

Catalog: 1277073

(8)

In Stock!

Add to Cart

Fluke TL40 Fluke TL40 Retractable Tip Test Lead Set (Red and Black)

Catalog: 1590606

(5)

In Stock!

Add to Cart

Fluke TL71 Fluke TL71 Premium Test Lead Set (Red and Black)

Catalog: 1274382

(15)

In Stock!

Add to Cart

Fluke TL75 Fluke TL75 HardPoint Test Lead Set (Red and Black)

Catalog: 855705

(11)

In Stock!

Add to Cart

Fluke TL910 ELECTRONIC TEST PROBES WITH REPLACEMENT TIPS

Catalog: 1616632

(6)

In Stock!

Add to Cart

Fluke H900 Fluke H900 Heavy Duty Holder for Test Leads (10 Slots)

Catalog: 1616818

(1)

In Stock!

Add to Cart

Fluke 80K-40 Fluke 80K-40 High Voltage AC/DC Probe, 40,000V AC/DC

Catalog: 382846

(4)

In Stock!

Add to Cart

Fluke 80K-6 Fluke 80K-6 High Voltage AC/DC Probe, 6,000V AC/DC

Catalog: 532424

(2)

In Stock!

Add to Cart

Fluke AC280 Fluke AC280 SureGrip Hook Clips for Models TL222 and TL224 (Red and Black)

Catalog: 1610115

(5)

In Stock!

Add to Cart

Fluke TL940 Fluke TL940 Mini Hook Test Leads (Red and Black)

Catalog: 1616705

(1)

In Stock!

Add to Cart

Fluke TL960 Fluke TL960 Micro Hook Test Leads (Red and Black)

Catalog: 1616722

(1)

In Stock!

Add to Cart

Fluke TL970 Fluke TL970 Hook and Pincer Test Leads (Red and Black)

Catalog: 1616793

(0)

In Stock!

Add to Cart

Fluke TL930 Fluke TL930 Patch Cords, 60 cm (Red and Black)

Catalog: 1616671

(1)

In Stock!

Add to Cart

Fluke TL932 Fluke TL932 Patch Cords, 90 cm (Red and Black)

Catalog: 1616680

(0)

In Stock!

Add to Cart

Fluke TL935 Fluke TL935 Patch Cords (Red and Black, 3 Sizes)

Catalog: 1616698

(0)

In Stock!

Add to Cart

Fluke TL950 Fluke TL950 Mini Pincer Test Leads (Red and Black)

Catalog: 1616710

(0)

In Stock!

Add to Cart

Fluke TP220 Fluke TP220 SureGrip Industrial Test Probes for Models TL222 and TL224...

Catalog: 1670056

(5)

In Stock!

Add to Cart

Fluke TP912 REPLACEMENT TIPS FOR ELECTRONIC TEST PROBE(TL910)

Catalog: 1616644

(1)

In Stock!

Add to Cart

Fluke TL26A Fluke TL26A 5-Way Telecom Test Leads, 60 in. (Red and Black)

Catalog: 1273172

(0)

In Stock!

Add to Cart

Fluke TPAK Fluke TPAK ToolPak Magnetic Hanging Kit

Catalog: 1281997

(38)

In Stock!

Add to Cart

Accuracy and diagnostic functions for maximum industrial productivity
Fluke 80 Series V has replaced series 80 Series III.

The new Fluke 87V has improved measurement functions, trouble-shooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution and electro-mechanical equipment.

Measures:

Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87-5, 87-5/E Kit)
True-rms ac voltage and current for accurate measurements on non linear signals (87-5, 87-5/E Kit)
Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87-5, 87-5/E Kit)
Measure up to 1000 V ac and dc
Measure up to 10 A (20 A for 30 seconds)
10,000 μF capacitance range
Frequency to 200 kHz and % duty cycle
Peak capture to record transients as fast as 250 μs (87-5, 87-5/E Kit)
4½ digit mode (87-5, 87-5/E Kit)

Electrical safety

All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

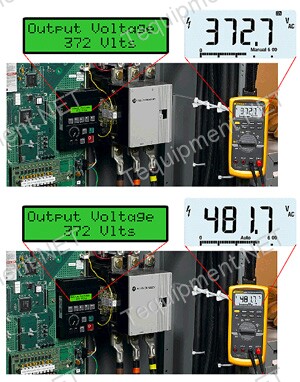

Correctly measure pulse-width modulated motor drive signals The new Fluke 87V is designed specifically to handle complex signals produced by adjustable speed motor drives. Think of the potential productivity you'll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time. Unique function for accurate measurements of noisy pulse-width modulated AC voltage. Measures correctly at the ASD and at the motor terminals Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency Measure AC current with an optional current clamp accessory Compare readings from the 87V with the display on the ASD Special shielding blocks high frequency, high-energy noise generated by large drive systems

Complex PWM drive signals are not a problem for the Fluke 87V	Pulse-width modulated detail of 50 Hz motor drive output voltage. 1000 V, 50 micro-second pulses can cause erratic behavior in some test equipment.

	This meter reading of the output voltage is with the low pass filter enabled. The reading compares well with the drive's display value.
	This meter reading without the low pass filter enabled is approximately 30% higher than the actual drive output voltage. This reading utilizes the meters full 20 kHz bandwidth. Many other multimeters available today will not provide readings which compare to the drives display value.

Fluke 87V/E Industrial Electrician Combo Kit

Includes:

1.5 m heat resistant silicone test leads
Removeable test probes with 4 mm of exposed metal for use on industrial circuits
Retractable long reach alligator clips
Magnetic hanger to position and hold meter to steel surfaces
Temperature probe
Durable carrying case

See how the new 87V compares to the original Fluke 87


Function	Original 87	87V	Productivity Increase
Selectable filter for motor drives	No	Yes	Accurate voltage and frequency measurements on pulse width modulated signals
Built in thermometer	No	Yes	No need to carry a separate thermometer
Capacitance	5 nf to 5 μF	5 nf to 10,000 μF	Measure more capacitors
VDC accuracy and resolution	0.1 %, 10 μV	0.05 %, 10 μV	Precise measurements in a hand held package
Display digits	13.5 X 7 mm	15.25 X 8.5 mm	30 % larger makes it easy to read
Backlight	Green	2-level, bright white	Easier to read in dark locations
Magnetic hanger	No	Optional	Position meter for easy viewing
Peak capture	1ms	250 μS	Record intermittent problems 4 times faster
CAT electrical safety rating	No	Yes, 2nd edition ANSI and IEC	Increased protection from 8kV spikes that can cause arc flash
Battery door	No	Yes	Change battery quickly without breaking cal seal
Warranty	Expired	Limited Lifetime	Lower cost of ownership

DCV
Maximum Voltage	1000V
Accuracy	Fluke 83 V: ±(0.1%+1) Fluke 87 V: ±(0.05%+1)
Maximum Resolution	Fluke 83 V: 100 μV Fluke 87 V: 10 μV
ACV
Maximum Voltage	1000V
Accuracy	Fluke 83 V: ±(0.5%+2) Fluke 87 V: ±(0.7%+2) True RMS
AC Bandwidth	Fluke 83 V: 5kHz Fluke 87 V: 20kHz* *with low pass filter; 3db @ 1kHz
Maximum Resolution	0.1 mV
DC Current
Maximum Amps	10A
Amps Accuracy	Fluke 83 V: ±(0.4%+2) Fluke 87 V: ±(0.2%+2)
Maximum Resolution	Fluke 83 V: 0.01 mA Fluke 87 V: 0.01 μA
AC Current
Maximum Amps	10A
Amps Accuracy	Fluke 83 V: ±(1.2%+2) Fluke 87 V: ±(1.0%+2) True RMS
Maximum Resolution	0.1 μA
Resistance
Maximum Resistance	50 MΩ
Accuracy	Fluke 83 V: ±(0.4%+1) Fluke 87 V: ±(0.2%+1)
Maximum Resolution	0.1Ω
Capacitance
Maximum Capacitance	9,999 μF
Accuracy	±(1%+2)
Maximum Resolution	0.01 nF
Frequency
Maximum Frequency	200 KHz
Accuracy	±(0.005%+1)
Maximum Resolution	0.01 Hz
Duty Cycle
Maximum Duty Cycle	99.9 %
Accuracy	±(0.2 per KHz +0.1%)
Maximum Resolution	0.1 %
Temperature Measurement
87 V	-200.0°C - 1090°C
87 V/E	-328.0°F - 1994.0°F, 1.0% excluding probe
80 BK Temperature Probe
87 V	-40°C - 260°C
87 V/E	-40°F - 500°F, 2.2°C or 2% whichever is greater
Conductance
Maximum Conductance	60.00 nS
Accuracy	±(1.0%+10)
Maximum Resolution	0.01 nS
Operating Range
Operating Temperature	-20°C - 55°C
Storage Temperature	-40°C - 60°C
Physical
Dimensions	5.2 cm x 9.8cm x 20.1 cm (2.06” x 3.86” x 7.93”)
Weight	624 g (22 oz.)
Included Accessories
87V and 83V	TL75 test leads, AC72 Alligator Clips, Holster, 9V battery (installed), Getting Started Manual, and CD with detailed manual. 87V includes an 80BK temperature probe.
87V/E	87V, TL224 silicone test leads, AC220 long reach alligator clips, TP238 test probes, magnet and strap, 80BK temperature probe, holster, 9V battery (installed), Getting Started Manual, and CD with detailed manual.

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Fluke 87-5/E KIT Discontinued Products

Recommended for you

Accessories

for the Fluke 87-5/E KIT

Fluke AC285 SUREGRIP LARGE ALLIGATOR CLIP Banana connector. Use with a Banana to...

Fluke BP980 Fluke BP980 Double Stacking Banana Plug Adapter Kit

Fluke TL224 Fluke TL224 SureGrip Insulated Test Leads (Red and Black)

Fluke C115 Fluke C115 Soft Carrying Case with Two Padded Pockets

Fluke C25 Fluke C25 Soft Carrying Case with Zipper, Belt Loop and Inner Accessories...

Fluke C550 Fluke C550 Rugged Soft Tool Bag with Zipper and Inner Pockets

Fluke I1010 Fluke I1010 AC/DC Current Clamp/Banana Plugs, 1A-600A AC/1A-1000A DC

Fluke I200 200 AMP CLAMP, CURRENT OUTPUT, BANANA

Fluke I410 Fluke I410 AC/DC Current Clamp/Banana Plugs, 1A-400A AC/DC

Fluke TP920 Fluke TP920 Test Probe Kit for Models TL71 and TL75 (Red and Black)

Fluke TL220 SUREGRIP INDUSTRIAL TEST LEAD SET

Fluke TL238 TEST LEAD SET FOR HIGH ENERGY ENVIRONMENT

Fluke TL81A TEST LEAD SET, DELUXE ELECTRONIC

Fluke TL40 Fluke TL40 Retractable Tip Test Lead Set (Red and Black)

Fluke TL71 Fluke TL71 Premium Test Lead Set (Red and Black)

Fluke TL75 Fluke TL75 HardPoint Test Lead Set (Red and Black)

Fluke TL910 ELECTRONIC TEST PROBES WITH REPLACEMENT TIPS

Fluke H900 Fluke H900 Heavy Duty Holder for Test Leads (10 Slots)

Fluke 80K-40 Fluke 80K-40 High Voltage AC/DC Probe, 40,000V AC/DC

Fluke 80K-6 Fluke 80K-6 High Voltage AC/DC Probe, 6,000V AC/DC

Fluke AC280 Fluke AC280 SureGrip Hook Clips for Models TL222 and TL224 (Red and Black)

Fluke TL940 Fluke TL940 Mini Hook Test Leads (Red and Black)

Fluke TL960 Fluke TL960 Micro Hook Test Leads (Red and Black)

Fluke TL970 Fluke TL970 Hook and Pincer Test Leads (Red and Black)

Fluke TL930 Fluke TL930 Patch Cords, 60 cm (Red and Black)

Fluke TL932 Fluke TL932 Patch Cords, 90 cm (Red and Black)

Fluke TL935 Fluke TL935 Patch Cords (Red and Black, 3 Sizes)

Fluke TL950 Fluke TL950 Mini Pincer Test Leads (Red and Black)

Fluke TP220 Fluke TP220 SureGrip Industrial Test Probes for Models TL222 and TL224...

Fluke TP912 REPLACEMENT TIPS FOR ELECTRONIC TEST PROBE(TL910)

Fluke TL26A Fluke TL26A 5-Way Telecom Test Leads, 60 in. (Red and Black)

Fluke TPAK Fluke TPAK ToolPak Magnetic Hanging Kit

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
