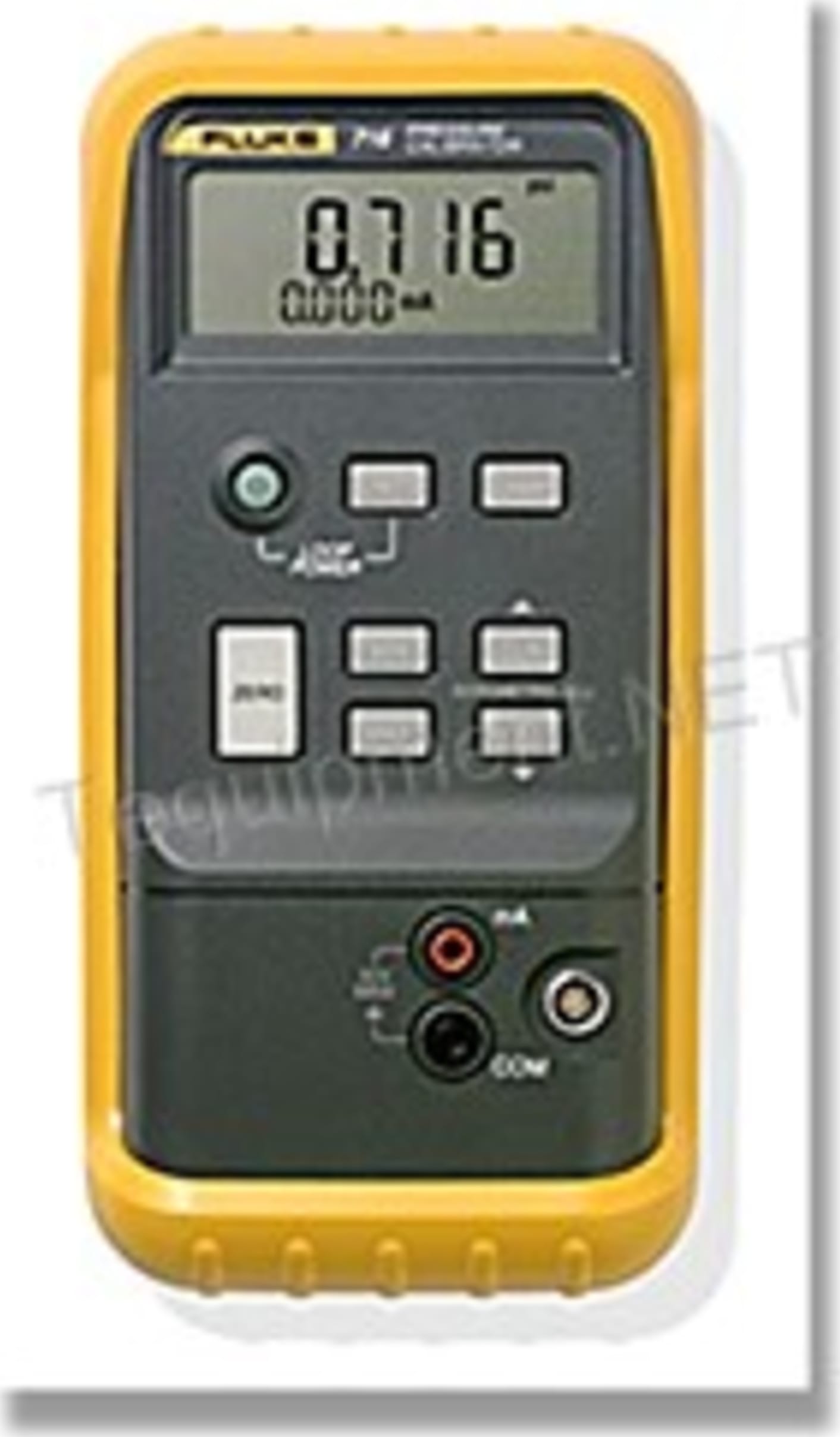

Fluke 716 Pressure Calibrators

Name: Fluke 716 Pressure Calibrators
Brand: Fluke
SKU: Fluke716
Availability: InStock

0 reviews | Model: Fluke 716

Compare

PRESSURE CALIBRATOR

Measure pressure to 10,000 psi/69 mPa using one of 29 Fluke 700 Pxx Pressure Modules
Measure mA with 0.025% accuracy and 0.001 mA resolution, while sourcing 24V loop power
Calibrate P/I or I/P transmitter with simultaneous pressure and current measurement
Select from eleven different engineering units
Zero, min, max, and hold functions

View Product Details

In Stock:

Recommended for you

Function Specifications
Measure Pressure (with Pressure Modules) Over pressure per pressure module specs	Range: 28 pressure modules, 1.0 in. H20 / 0.25 kPa to 10,000 psi / 69 Mpa Resolution: To 0.0001 psi, per Pressure Module specs Accuracy: To 0.05% of full span, per Pressure Module specs Note: Media compatibility per Pressure Module Specs, Zero, Min, Max, Hold, Damp
Measure mA	Range: 0 to 24 mA Resolution: 0.001 mA Accuracy: 0.025% + 1 count
Loop Supply	Range: 24 V dc Resolution: N/A Accuracy: +/- 10% Note: Drive; 20 mA into 1000 W for battery >6.8V; 700 W for battery 5.8 to 6.8 V

General Specifications
Operating temperature	-10ºC to 55ºC
Non-operating temperature	-40ºC to 60ºC
Relative humidity (% RH operating without condensation):	95% (10ºC to 30ºC); 75% (30ºC to 40ºC); 45% (40ºC to 50ºC); 35% (50ºC to 55ºC)
Operating altitude	3,000m max
Vibration	Random, 2g, 5-500 Hz
Shock	1m drop test
Safety	CSA C22.2 No. 1010.1:1992
Power	Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Size (with holster)	201 mm L x 98mm W x 52 mm D (7.93 in X 3.86 in x 2.06 in)
Weight (with holster)	Approx. 600g (21 oz)
Size (without holster)	187 mm L x 87mm W x 32 mm D (7.35 in X 3.41 in x 1.25 in)
Weight (without holster)	Approx. 330g (12 oz)
Display	Clear, 5 digit liquid crystal
Warranty	3 years
