Fluke 700LTP-1 Low-Pressure Test Pump

Name: Fluke 700LTP-1 Low-Pressure Test Pump
Brand: Fluke
SKU: Fluke700LTP-1
Price: 1072.99 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Catalog: 2811763 | UPC: 095969397704 | Model: Fluke 700LTP-1

Compare

Fluke 700LTP-1 Low-Pressure Test/Vacuum Pump, 100 psi, 6.9 bar/-12 psi, -.85 bar

Pump can be easily cleaned without disassembly
Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate
Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test
Slim design, easy to carry and use

View Product Details

Your Price: $1,072.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Fluke 700LTP-1 Fluke 700LTP-1 Low-Pressure Test/Vacuum Pump, 100 psi, 6.9 bar/-12 psi, -.8 ...	Fluke 700HTPK HYDRAULIC TEST PUMP KIT, 0 TO 10000 PSI/700 BAR	Fluke 700HTPK2 PREMIUM HYDRAULIC TEST PUMP KIT, 10,000 psi	Fluke 700PTP-1 Fluke 700PTP-1 Pneumatic Test/Vacuum Pump, 600 psi, 40 bar/-13 psi, -0.9 ba ...	Fluke 700PTPK PNEUMATIC TEST PUMP KIT, 0 TO 600 PSI/40 BAR	Fluke 700HTP-2 HYDRAULIC TEST PUMP, 10,000 PSI/690 BAR	Fluke 700PTPK2 PREMIUM PNEUMATIC TEST PUMP KIT, 600 psi	Fluke 700PMP PRESSURE PUMP, 150 psi	Fluke 700HPPK-NPT HIGH PRESSURE PNEUMATIC TEST PUMP KIT, 21 MPA, 3000 PSI	Fluke 700HPP-NPT HIGH PRESSURE PNEUMATIC TEST PUMP, 21 MPA, NPT, 3000PSI	Fluke 700HPPK-BSP HIGH PRESSURE PNEUMATIC TEST PUMP KIT, 21 MPA, BSP, 3000 PSI	Fluke 700HPPK-MET HIGH PRESSURE PNEUMATIC TEST PUMP KIT, 21 MPA, METRIC, 3000PSI	Fluke 700HPP-MET HIGH PRESSURE PNEUMATIC TEST PUMP, 21 MPA, METRIC, 3000PSI	Fluke 700HPP-BSP HIGH PRESSURE PNEUMATIC TEST PUMP, 21 MPA, BSP, 3000 PSI
Price
In Stock
Maximum Range Pressure (Gauges)	100 psi	10000 psi		600 psi	600 psi	10000 psi	600 psi	150 psi	3000 psi		3000 psi	3000 psi	3000 psi	3000 psi
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Fluke 700LTP-1 Accessories

Choose a Category

General Accessories

for the Fluke 700LTP-1

Fluke 71X Fluke 71X Calibrator Hose Kit for Models 717 and 718 (100 psi and Below)

Catalog: 3345825

(0)

In Stock!

Add to Cart

Fluke 700LTP-1 - Low-Pressure Test Pump

Pump can be easily cleaned without disassembly
Adjustable pressure relief valve with slow-bleed capability. Allows the slow release pressure at a controlled rate
Slim design, easy to carry and use

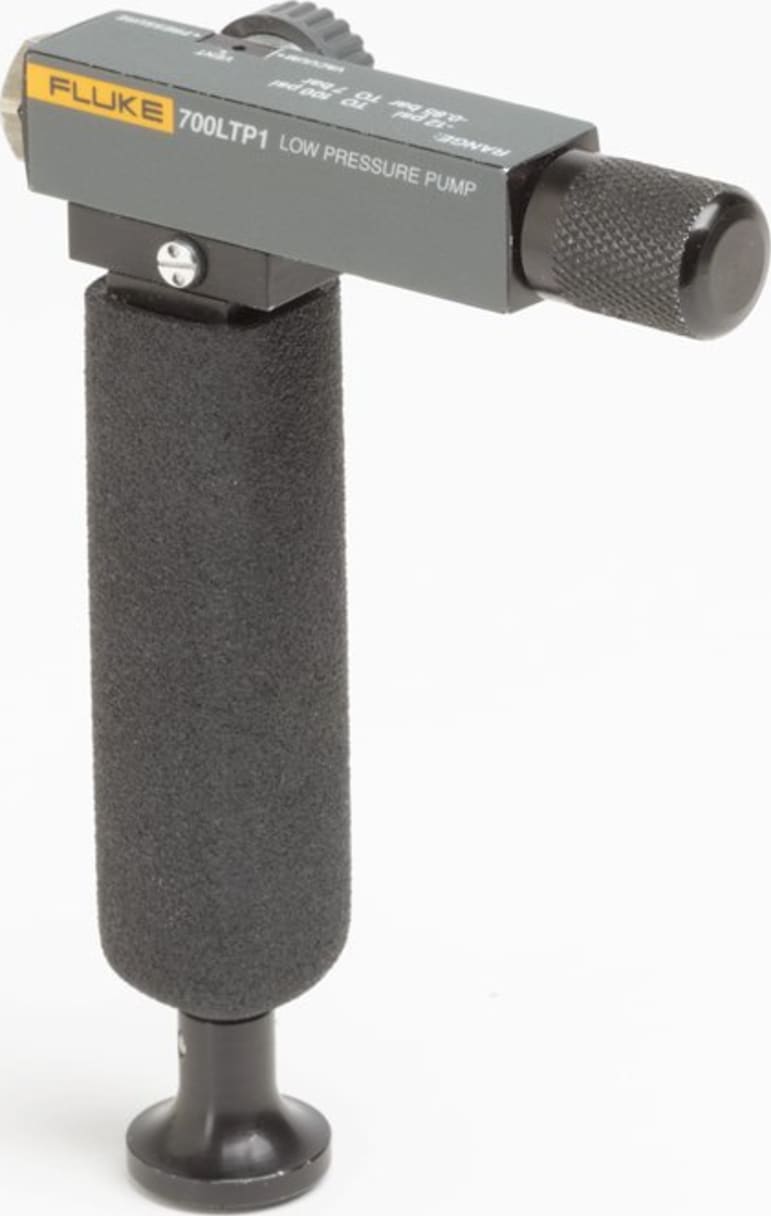

The Fluke 700LTP-1 is a hand-operated pressure pump designed to generate either vacuum to -13 psi / -.90 bar or pressures to 100 psi / 6.9 bar. The Fluke 700LTP-1 has two pressure ports with quick fit connectors. Test hoses are terminated with 1/4-NPT female fittings that can be adapted using the BSP/ISO adapters

For use with 700 series pressure modules and 717 pressure calibrators. Ideal for low-pressure applications requiring accurate low-pressure testing.

Mechanical & General Specifications
Size	length 5.9 in (150 mm), width 4 in (100 mm), depth 1.25 in (32 mm)
Weight	226 grams or .5 lbs (pump only)
Warranty	One year
Material	Exposed Materials: Aluminum, silicon, neoprene, stainless steel, Buna-N

Tech Specs

Process / Calibration/Pressure Calibration/Calibration Pumps Template
Style (pumps)	Pneumatic
Maximum Range Pressure (Gauges)	100 psi
Maximum Range Vacuum	-12
Fluid Compatability	Air
Adjustable Vent Release	Yes
Adjustable Vacuum Release	Yes
Display	No
NIST Calibration	No
Kits Available	No
Test Equipment General Attributes
Unique Features	Low-Pressure Test Pump is a portable, dual source of vacuum and pressure. Each pump incorporates a vacuum and pressure selector and fine adjustment control.
Warranty	1 YEARS
Product Weight	0.5 LBS
Product Height	5.00 IN
Product Length	5.9 IN
Product Width	4 IN
ECCN Number	EAR99
Country of Origin	China

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Delivery

5.0

Fast and prompt delivery.

Verified Purchase Anonymous on Apr 09, 2019

Recommend to a Friend

Fluke 700LTP-1

5.0

Item is as advertised. Best pricing I could find on-line. Extremely satisfied with delivery time and ease of ordering.

Verified Purchase Anonymous on Feb 04, 2014
