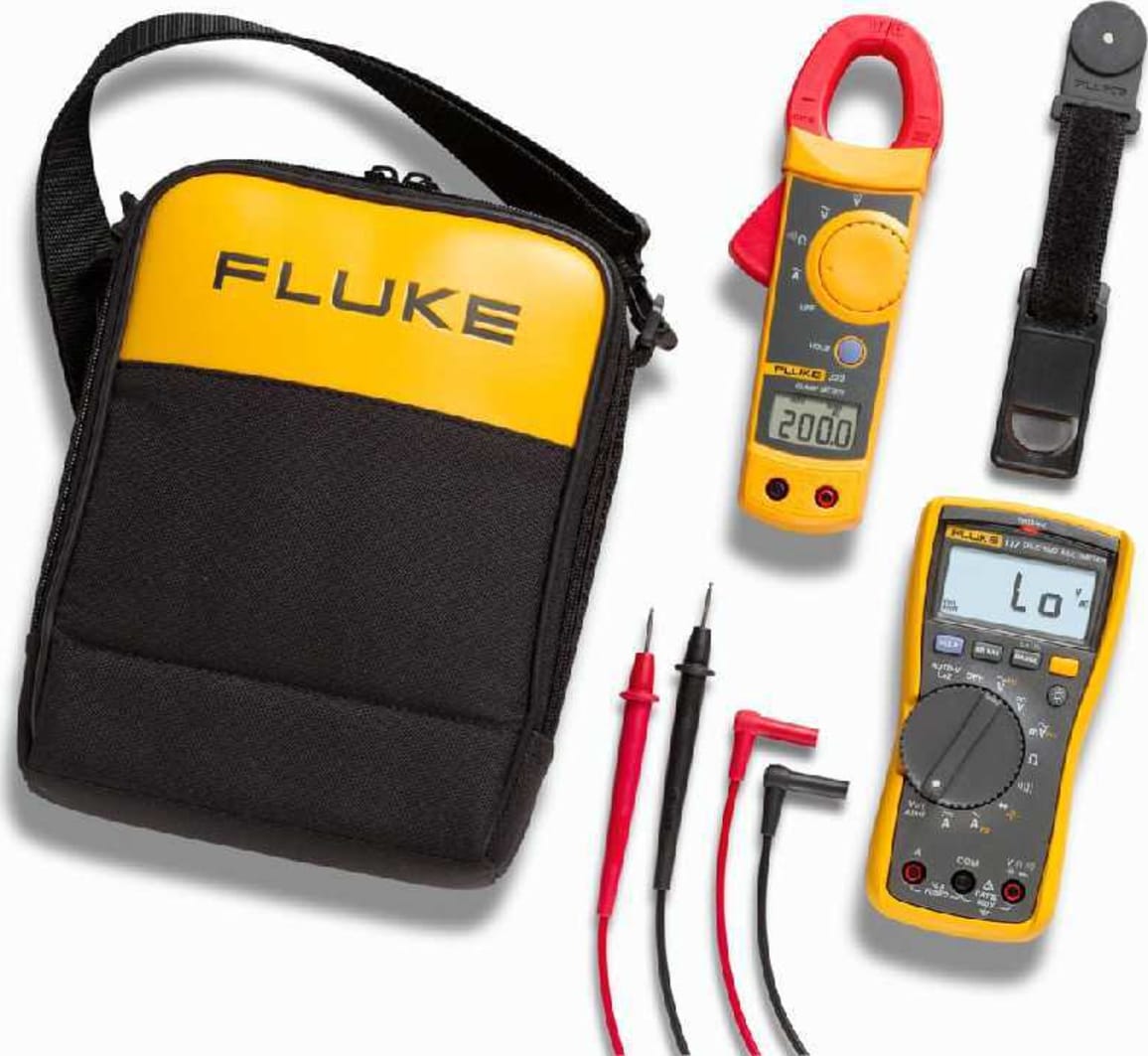

Fluke 115/322 Kit Discontinued Products

Name: Fluke 115/322 Kit Discontinued Products
Brand: Fluke
SKU: Fluke115/322 Kit
Price: 214.54 USD
Availability: InStock

0 reviews | Model: Fluke 115/322 Kit

Compare

Multimeter and Clamp Meter with Free Case - Limited Time!

Fluke 115 Field Service Technicians Multimeter

Resistance, continuity, frequency, capacitance, and diode test
Measures 20 A (30 seconds momentary; 10 A continuous)
Large white LED backlight to work in poorly lit areas
Compact ergonomic design for one-handed operation
Compatible with optional magnetic hanger (ToolPak)
True-rms for accurate measurements on non-linear loads
Min/Max/Average with elapsed time to record signal fluctuations
CAT III 600 V safety rated
True RMS
.5% Accuracy
28% larger digits
6000 counts
Bargraph
Backlight
Min-max recording
Display hold
Ergonomic, Compact Shape
Current AC/DC
Frequency
Capacitance

Fluke 322 Clamp Meter (320 Series)

New smaller size fits easily into tight places
Precise measurements with 1.8% basic accuracy
Resolution up to 0.01A and 0.1 V
Measures AC current to 400 A
Measures AC volts to 600 V
Measures DC volts to 600 V (Fluke 322 only)
Resistance measurement to 400 Ω
Continuity for quick checking of shorts
Automatic low battery indicator
Display hold function
Two year warranty

IWH C-66 High Quality Meter Case (Free)

Oversized dimensions for comfortable storage of a wide range of meters and other equipment (Approx. 10"x6"x3")
Durable, water resistant canvas material with inside padding
Belt loop and easy case access with no struggling to remove or insert a meter or accessories
Heavy duty YKK zippers with pull string and tab
Inside divider for additional accessory storage

View Product Details

List Price: $283.90

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Repair Parts and Fuses

for the Fluke 115/322 Kit

Fluke FUSE 803293 Fluke 803293 Replacement Fuse, 1000V AC, 11A AC

Catalog: 803293

(5)

In Stock!

Add to Cart

Fluke 115: Field Service Technicians Multimeter

Designed by electricians. Engineered by Fluke.

Compact true-rms meter for field service technicians. The Fluke 115 is the solution for a wide variety of electrical and electronic testing applications. This true-rms meter provides easy one-handed operation in a compact package.

Fluke 322: Clamp Meter (320 Series)

Big features, small package.

The Fluke 322 is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 322 also offers DC voltage measurements and has a higher resolution for loads below 40 A.

IWH C-66: High Quality Meter Case (Free)

The protection and durability you need with functional features that provide easy access to your equipment.

Fluke 115 Field Service Technicians Multimeter

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] )

Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Display	Digital: 6,000 counts, updates 4/sec
Bar graph	33 segments, updates 32/sec
Operating temperature	-10 °C to + 50 °C
Storage temperature	-40 °C to + 60 °C
Battery	9 volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life	400 hours typical, without backlight

Measurement	Range	Resolution	Accuracy ± ([% of reading] + [counts])
DC millivolts	600.0 mV	0.1 mV	2.0 % + 3
DC volts	6.000 V	0.001 V
	60.00 V	0.01 V
	600.0 V	0.1 V
Auto volts	600.0 V	0.1 V	2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts¹ true-rms	600.0 mV	0.1 mV	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
AC volts¹ true-rms	6.000 V	0.001 V	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
	60.00 V	0.01 V
	600.0 V	0.1 V
Continuity	600 O	1 O	Beeper on < 20 O, off> 250O; detects opens or shorts of 500 µs or longer.
Ohms	600.0 O	0.1 O	0.9 % + 2
	6.000 kO	0.001 kO	0.9 % + 1
	60.00 kO	0.01 kO
	600.0 kO	0.1 kO
	6.000 MO	0.001 MO
	40.00 MO	0.01 MO	1.5 % + 2
Diode test	2.000 V	0.001 V	0.9 % + 2
Capacitance	1000 nF	1 nF	1.9 % + 2
	10.00 µF	0.01 µF
	100.0 µF	0.1 µF
	9999 µF	1 µF
	100 µF to 1000 µF		1.9 % + 2
	> 1000 µF		5 % + 20
Lo-Z capacitance	1 nF to 500 µF		10 % + 2 typical
AC amps true-rms (45 Hz to 500 Hz)	6.000 A	0.001 A	1.5 % + 3
	10.00 A	0.01 A	1.5 % + 3
	20 A continuous overload for 30 seconds max.
DC amps	6.000 A	0.001 A	1.0 % + 3
	10.00 A	0.01 A	1.0 % + 3
	20 A continuous overload for 30 seconds max.
Hz (V or A input) ²	99.99 Hz	0.01 Hz	0.1 % + 2
	999.9 Hz	0.1 Hz
	9.999 kHz	0.001 kHz
	50.00 kHz	0.01 kHz

All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled.

Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.

Technical Specifications
AC Current	Range	0-400.0 A
	Accuracy	1.8% ± 5 counts (50 - 60 Hz) 3.0% ± 5 counts(60 Hz - 400 Hz)
	AC Response	Averaging
AC Volts	Range	0 - 400.0 V, 400 - 600 V
	Accuracy	1.2% + 5 counts (50 - 400 Hz)
	AC Response	Averaging
DC Volts	Range	Not Applicable
DC Volts	Accuracy	Not Applicable
Resistance	Range	0-400.0 Ohms
Resistance	Accuracy	1% ± 5 counts
Continuity	= 30 Ohms

General Specifications
Min/Max	No
Backlight	No
Operating Temperature	-14 °F to 122 °F (-10 °C to 50 ° C)
Battery Life	(2) AAA carbon zinc approximately 100 hours continuous, automatic low battery indicator.
Safety Rating	IEC 1010-2-031, 600 V CAT III
Warranty	Two years
Temperature De-rating	< 18 °C, > 28 °,C add 0.1 x specified accuracy / °C
Storage Temperature	-22 °F to 140 °F (-30 °C to 60 °C)
Display Hold	Yes
Size	Height	7.5" (19.05 cm)
	Width	2.5" (6.35 cm)
	Depth	1.4" (3.50 cm)
	Jaw Opening	1" (2.54 cm)
Weight	8 oz. (224 g)
