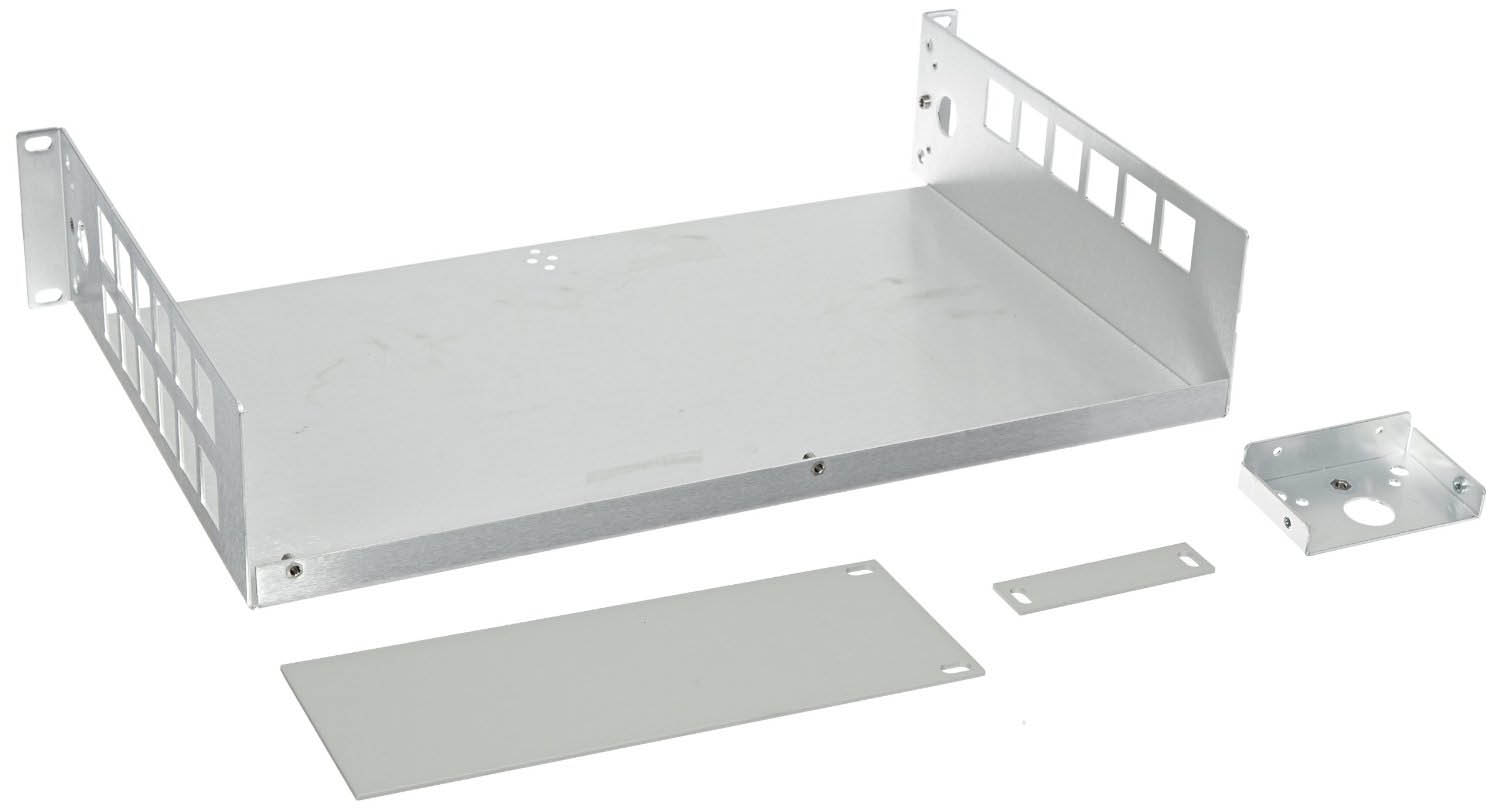

Single Rack Mount Kit

Small Filler Plate

• 2 #8-32 x 1/2 inch panhead Philips screws

Large Filler Plates

• 2 #6-32 x 1/4 inch panhead Philips screws

Rack Mount Tray

• 1 #6-32 x 1/2 inch panhead Philips screw

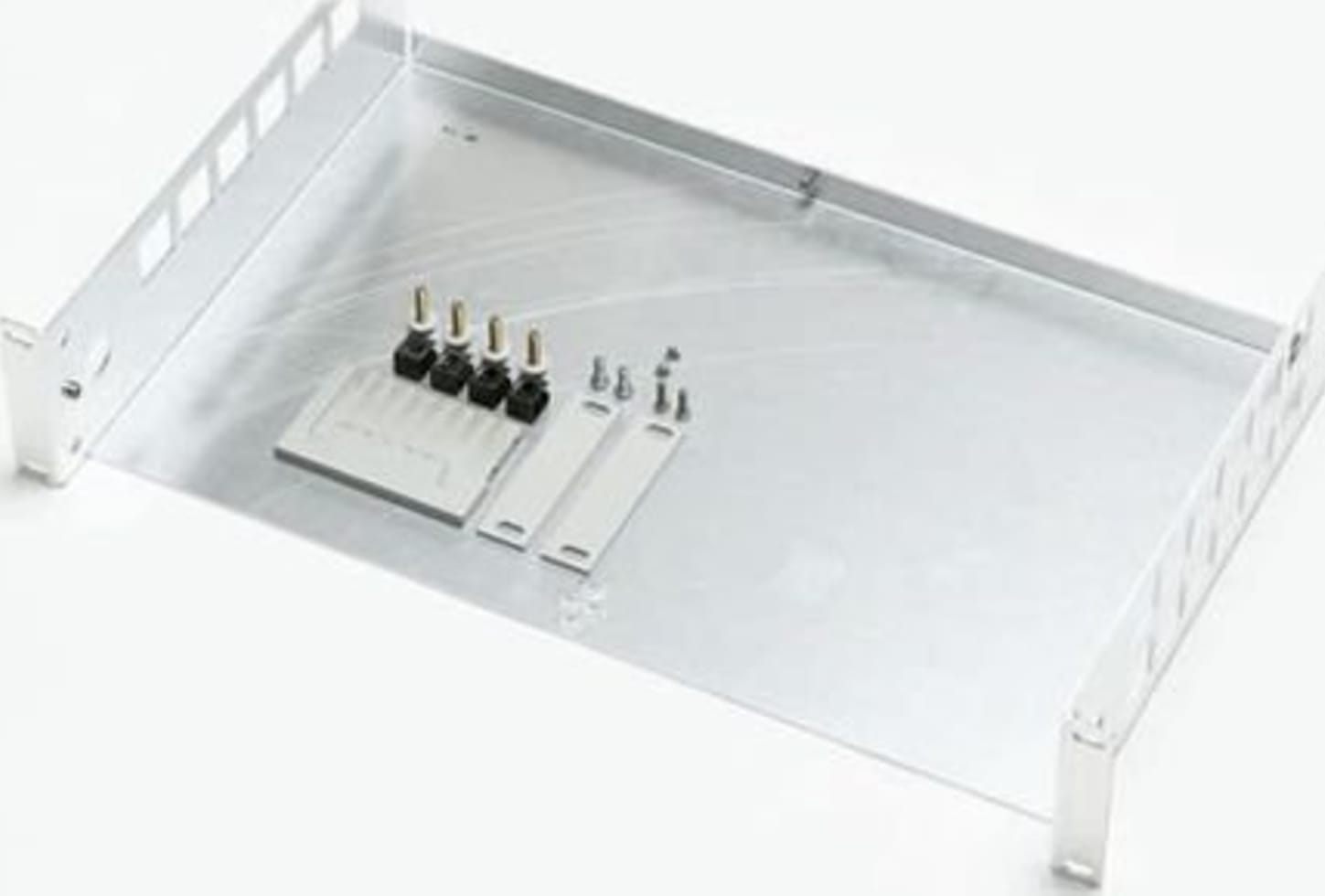

Fluke Y8846S Single Rack Mount Kit

The Fluke Y8846S rack mount kit enables single or dual mounting hardware for the Fluke 8845A or 8846A meters. The Fluke Y8846D dual rack mount kit allows you to mount two meters side-by-side in a standard 19-inch rack.

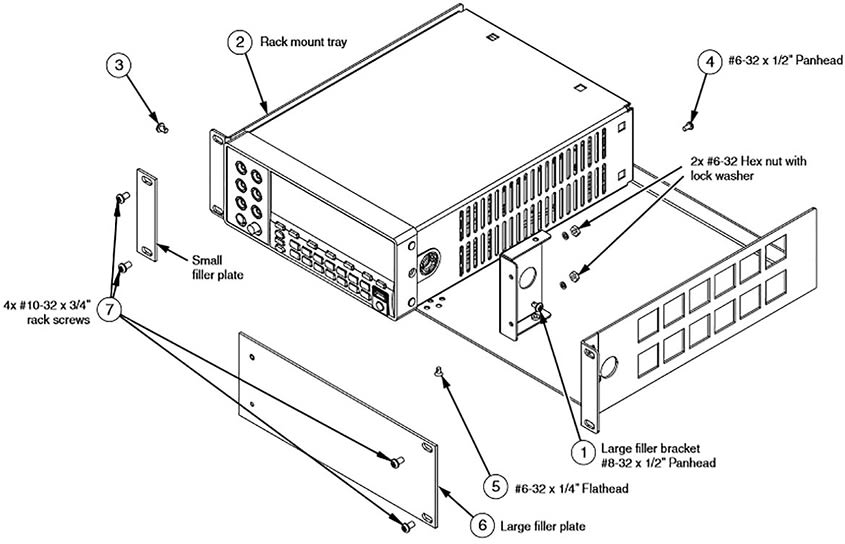

Installing a Single Rack Mount Kit

1. Using one #8-32 x ½" panhead screw, attach the right angle filler plate bracket on the right front side of the Meter, keeping the smooth face with two holes of the bracket facing the front.
2. With the tray flat on a desk with the rack screw ears toward you, place the Meter so the left side of the front frame is against the left wall of the tray.
3. Attach the Meter to the tray by inserting one #8- 32 x ½" panhead screw through the left-hand forward holes in the tray and into the side of the Meter.
4. Insert a #6-32 x ½" flathead screw through the hole in the back of the tray and into the back of the Meter.
5. Attach the filler plate bracket on the right side of the Meter to the bottom of the tray with a #6-32 x ¼" flathead screw.
6. Install the 9½" painted filler panel to the right front of the tray by inserting the attached screws through the holes in the right-angle bracket and locking it in with lock washers and lock nuts as shown.
7. Install the assembled rack mount kit in the rack using the four rack screws with the painted 1" wide plate under the screws on the left-hand side of the rack mount tray.
8. Complete the installation by installing the Meter’s power cord and other IO accessories through the rear of the rack.
