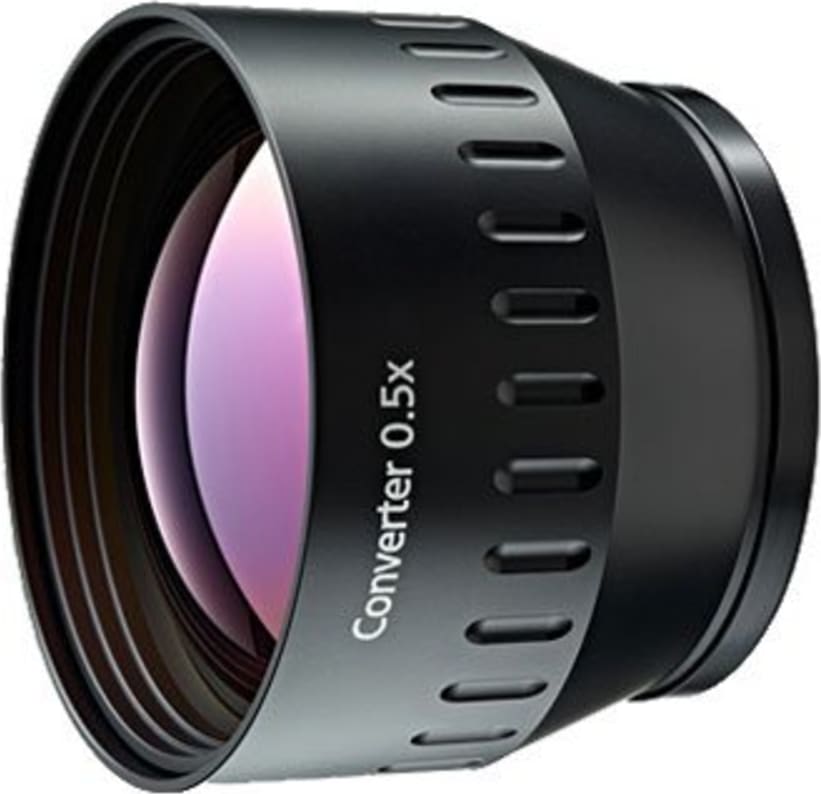

Fluke Xlens/Macro3 Macro 3 Infrared Lens

Close up macro lens (0.5x) for inspection and analysis of even smaller subjects in research and development applications – compatible with TiX1000, TiX660 and TiX640 models.

Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.

MACRO LENS COMPARISON:
FLK-Lens/25Mac2 » 25 Micron macro infrared smart lens†
Working distance: ~10 mm     Used with TiX560, TiX520, TiX500

FLK-Xlens/Macro1 »     81 Micron (TiX1000) or 119 micron (TiX660/640) macro infrared lens
Working distance: ~137 mm     Used with TiX1000, TiX660, TiX640

FLK-Xlens/Macro2 »     32 Micron (TiX1000) or 47 micron (TiX660/640) macro infrared lens
Working distance: ~47 mm     Used with TiX1000, TiX660, TiX640

FLK-Xlens/Macro3 »     35 Micron (TiX1000) or 50 micron (TiX660/640) macro infrared lens (must be paired with FLK-Xlens/Tele)
Working distance: ~100 mm     Used with TiX1000, TiX660, TiX640

†The lenses for TiX560, TiX520, TiX500, Ti400, Ti300, and Ti200 are smart lenses. They come pre-calibrated and don't require calibration to a specific camera, so they are interchangeable between compatible cameras. Lenses for TiX1000, TiX660, and TiX640 require calibration to the specific camera. Lenses for Ti32, Ti29, Ti27, TiR32, TiR29, and TiR27 have calibration files included with the lens, and you do not need to send the camera in for calibration.
