| Model |

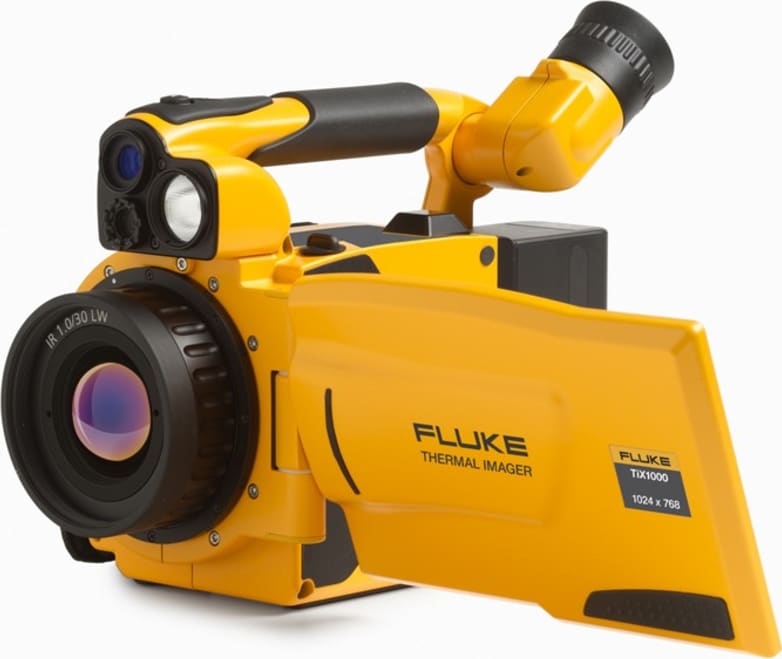

TiX1000 |
TiX660 |
TiX640 |
TiX620 |
| IFOV with standard lens (spatial resolution) |
0.6 mRad |
0.8 mRad |
0.85 mRad |
| Detector resolution |
1024 x 768 (786,432 pixels) |
640 x 480 (307,200 pixels) |
| Field of View (FOV) w/standard 30mm lens |
32.4° x 24.7° |
30.9° x 23.1° |
32.7° × 24.0° |
SuperResolution and Dynamic
SuperResolutin (resolution enhancement) |
Yes, MicroScan technology
quadruples IR measurement pixels |
No |
Subwindowing modes available
(add on at time of order) |
Option 1: 640 x 480 (60 fps)
Option 2: 384 x 288 (120 fps)
Option 3: 1024 x 96 (240 fps) |
Option 1: 384 × 288 (120 fps)
Option 2: 640 × 120 (240 fps) |
384 × 288 (60 fps) |
| LaserSharp ® Auto Focus |
Yes |
| Laser distance meter |
Yes, Accuracy: ± 1.5 mm, Range: 70 m (76.5 ft.),
Wavelength: 635 nm (red), Laser class: 2 |
| Auto focus |
Yes |
| Advanced manual focus |
Yes |
| EverSharp multifocal recording |
Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply
for the best image quality |
| Spectral range |
7.5 µm to 14 µm |
| Video recording/video streaming |
Non-radiometric infrared video recording (to SD card); Visual and infrared video streaming (radiometric and non-radiometric) with optional
Ethernet converter cable |
| Display |
Extra-large 5.6 in color TFT display, 1280 × 800 pixel resolution, suitable for daylight operation |
| AutoBlend™ mode |
Yes |
| Viewing options available |
Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures) |
| Thermal sensitivity [NETD] |
= 0.05 °C at 30 °C target temp (50 mK) |
= 0.03 °C at 30 °C target temp (30 mK) |
= 0.04 °C at 30 °C
target temp (40 mK) |
| Filter mode |
Yes |
| Level and span |
Smooth auto and manual scaling |
| Minimum span (in manual mode) |
2.5 °C (4.5 °F) |
| Minimum span (in auto mode) |
4.0 °C (7.2 °F) |
| Built-in digital camera (visble light) |
Yes, up to 8 Megapixel resolution for image and video recording |
| Frame rate |
30 Hz or 9 Hz versions |
60 Hz or 9 Hz versions |
30 Hz |
| Laser pointer |
Yes, class 2 |
| LED light (torch) |
Yes |
| Digital zoom |
Up to 32x |
| Geo-localization |
Yes |
| Extensive memory options |
Removable micro SD memory card |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Post-capture image editing (on camera) |
Yes. Conduct on-camera analysis for in-field results |
| Advanced text annotation |
Yes. Including standard shortcuts as well as user programmable options |
| File formats |
.irb, jpg, .wav, .avi |
| Memory review |
Thumbnail view navigation and review selection |
| Software |
SmartView ® software, included |
Export file formats with SmartView ®
software |
BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF and TIFF |
| Voice annotation |
Yes |
| Audio |
Integrated microphone and loudspeaker for voice annotations |
| IR-PhotoNotes™ |
Yes |
| Text annotation |
Yes |
| Video recording/video streaming |
Yes |
| Image/video storage |
SD HC memory card |
| Interfaces for image/data transfer |
Supported in camera data ports: SD card, GigE vision, RS-232, USB 2.0, DVI-D and composite video
Supported in SmartView ® software: SD card |
| Batteries (field replaceable, rechargeable) |
Two standard lithion ion video camera batteries with LED charge level
indicator |
One standard lithion ion video camera battery with
charge level indicator |
| Battery charging system |
External: 12 V dc to 24 V dc |
| AC operation |
Yes |
| Temperature measurement range |
-40 °C to +1200 °C (-40 °F to 2192 °F)
High temperature option: up to 2000 °C (3632 °F) |
-40 °C to +1200 °C
(-40 °F to 2192 °F) |
-40 to 600 °C
(-40 to 1112 °F) |
| Accuracy |
± 1.5 K or ± 1.5 % (±1 K when target measures 0 °C to 100 °C) |
± 2 K or ± 2 % |
| On screen emissivity correction |
Yes |
On-screen reflected background
temperature compensation |
Yes |
| Correction functions |
LDC™ - Laser rangefinder based distance correction, emissivity
(manual or material table) |
Emissivity (manual or material table) |
| Transmissivity I Ambient temperature I Humidity (option) |
| Standard palettes |
Rainbow, grayscale, ironbow, blue-red, marked, high contrast, steps, black rd, hot metal, menthol, sepia, grayscale/rainbow |
| Color alarms |
High-temperature and low-temperature |
| Operating temperature |
-25 °C to +55 °C (13 °F to 131 °F) |
| Storage temperature |
-40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidty |
10 % to 95 %, non-condensing |
| Center-point temperature measurement |
Yes |
| Measurement functions (selection) |
Multiple measurement spots, Hot/cold spot detection, Isotherms, Pro?les, Differences (subtraction) |
| Center box |
Yes. Adjustable shapes (region of interest) for advanced analysis (min, max and avg) |
| Vibration |
Operational: 2G, IEC 68-2-6 |
| Shock |
Operational: 25G, IEC 68-2-29 |
| Size (H x W x L) |
210 mm × 125 mm × 155 mm (8.25 in x 4.9 in x 6.1 in) |
206mm x 125mm x 139mm(8.1 in x 4.9 in x 5.5 in) |
| Weight |
1.95 kg (4.3 lb) |
1.4 kg (3.2 lb) |
| Viewfinder |
Tiltable LCoS color view?nder display, 800 × 600 pixel resolution |
None |
| Ergonomics |
Camcorder w/handle |
Camcorder |
| Enclosure rating |
IP54 |
| Warranty |
Two-years |
| Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
| Supported languages |
Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simpli?ed Chinese,
Spanish, Swedish, Traditional Chinese and Turkish. |
