Industrial-Commercial |
General use |
| |
Ti125 |
Ti110 |
Ti105 |
Ti100 |
Ti95 |

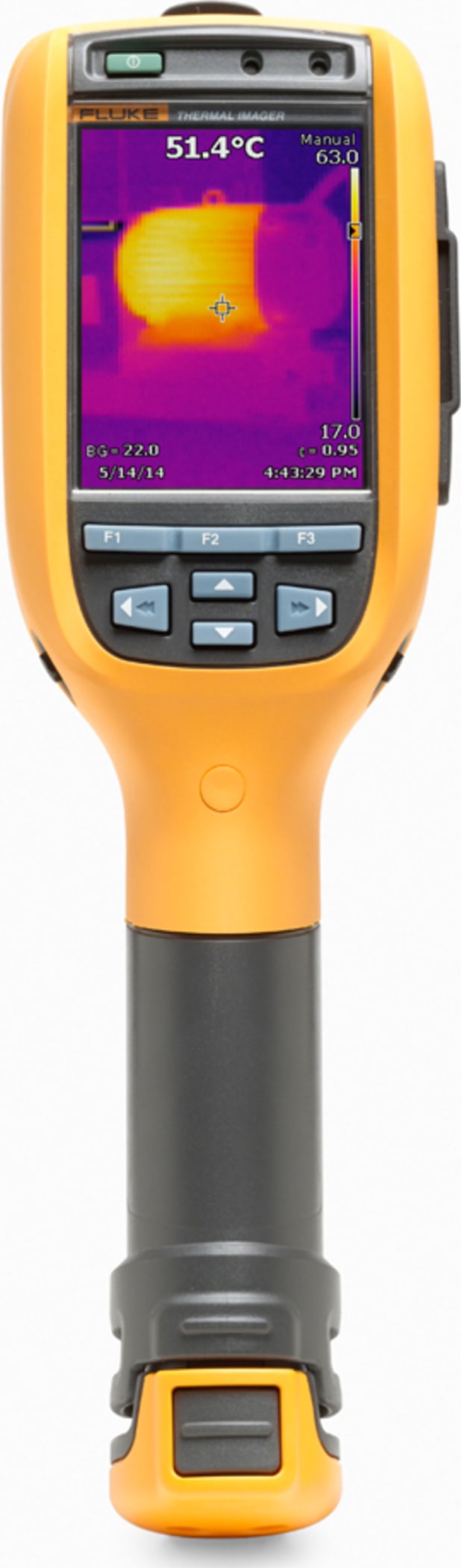

Ti90 |
| IFOV (spatial resolution)/ distance to spot (D:S) |
3.39 mRad |
5.6 mRad |
| IR resolution |
160 x 120 (19,200 pixels) |
80 x 80 (6,400 pixels) |
80 x 60 (4,800 pixels) |
| FOV (Field of view) |
22.5 °H x 31 °V |
26 °H x 26 °V |
19.5 °H x 26 °V |
| Wireless connectivity1 |
Fluke ConnectTM app compatible with included wireless SD card1 |
| LCD display |
3.5 inch diagonal (portrait format) |
| Focus mechanism |
IR-OptiFlex™ focus system |
Focus-free 1.2 m (4 ft) and beyond |
Focus-free 0.6 m (2 ft) and beyond |
| IR-Fusion® technology |
PIP, FULL IR, FULL VISIBLE, AutoBlend™ |
PIP, FULL IR, FULL VISIBLE |
PIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE |
No, full IR only |
PIP (1.2 m (4 ft) to 4.6 m (15 ft)), FULL IR, FULL VISIBLE |
FULL IR, FULL VISIBLE |
| Visible camera |
2 megapixel industrial-grade |
None - IR Only |
2 megapixel industrial-grade |
| Capture of refresh rate |
9 Hz or 30 Hz versions |
9 Hz only |
| NETD (thermal sensitivity) |
≤ 0.10 °C at 30 °C target temp (100 mK) Filtered mode to get to 80 mK |
≤ 0.10 °C at 30 °C target temp (100 mK) |
| Level and span control |
Manual and auto |
| Minimum span in auto mode |
5 °C |
| Minimum span in manual mode |
2.5 °C |
| Standard palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
Blue-red, grayscale, inverted grayscale, high-contrast, hot metal, ironbow, amber |
Blue-Red, Iron-bow, Grayscale, Amber |
Blue-red, grayscale, high-contrast, hot metal, ironbow, amber |
Blue-red, grayscale, ironbow |
| Ultra Contrast™ palettes |
Blue-Red, Grayscale, Inverted Grayscale, High-contrast, Hot Metal, Ironbow, Amber, Inverted Amber |
Blue-Red, Grayscale, Ironbow |
None |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to +350 °C (-4 °F to +662 °F) |
-20 °C to +250 °C (-4 °F to +482 °F) |
| Temperature measurement accuracy |
± 2 °C or 2 % (at 25 °C nominal, whichever is greater) |
| Centerpoint temperature measurement |
Yes |
| Centerbox (Min/Avg/Max) |
Yes |
None |
Yes |
None |
| Emissivity correction |
Yes |
| Transmission correction |
Yes |
No |
| Background (re?ected) compensation |
Yes |
| Spectral band |
7.5 µm to 14 µm (long wave) |
9 µm to 15 µm (long wave) |
| SmartView® Software |
Included |
| Fluke Connect® compatible |
Yes |
| Fluke Connect™ WiFi SD Card included |
Yes |
No |
| IR-PhotoNotes™ annotation system |
Yes (3 images) |
None |
| Voice annotation (audio) |
Yes (60 seconds) per image |
No |
| Multi-mode video output |
Streaming USB video output (infrared, visible and IR-Fusion modes) |
None |
| Multi model video redording (standard avi w/ mpeg encording) |
Yes (AVI with MPEG encoding, up to 5 minutes) |
None |
| Multi-mode video recording (radiometric.is3) |
Yes, radiometric .is3 for approximx 2.5 to 5 minutes depending upon thermal scene |
None |
| Memory review |
Thumbnail review |
| Color alarms |
High temperature, low temperature, isotherm |
High temperature, low temperature |
High temperature |
None |
| Hot/cold markers |
Yes |
None |
Yes |
| User de?nable spot markers |
Three on camera and in SmartView® |
None |
| Laser pointer |
Yes |
None |
| Torch |
Yes |
None |
| Drop test |
2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) |
IP54 |
| Standard warranty period |
Two-years |
| Extended warranty and service plans |
Yes |
| Battery (?eld-replaceable, rechargeable) |
Two |
One |
| Battery life |
4+ hours (each)* |
| External battery charging base |
Yes |
Optional (accessory) |
| Charging power supply |
Yes |
| Weight |
0.726 kg (1.6 lb) |
| Size |
28.4 cm x 8.6 cm x 13.5 cm (11.2 in x 3.4 in x 5.3 in) |
| Minimum IR focus distance |
15.25 cm (6 in) |
122 cm (48 in) |
| Minimum parallax |
~45.7 – 55.9 cm (~ 18 in – 22 in) |
~122 cm (48 in) |
None - IR Only |
~45.7 cm (18 in) |
| Recommended Calibration cycle |
Two years |
| Multifunction card reader |
Included |
Optional (accessory) |
| Memory storage |
2 GB WiFi SD memory card |
2 GB SD memory card |
| Operating temperature range |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature range |
-10 °C to +50 °C (14 °F to 122 °F) |
| Operating humidity |
Operating and storage 10 % to 95 %, non-condensing |
| Vibration and shock |
2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards |
CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01 |
| C Tick |
IEC/EN 61326-1 |
| EMI, RFI, EMC |
EN61326-1; FCC Part 5 |
| Users manuals |
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simpli?ed Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
