| General Specifications |
| |

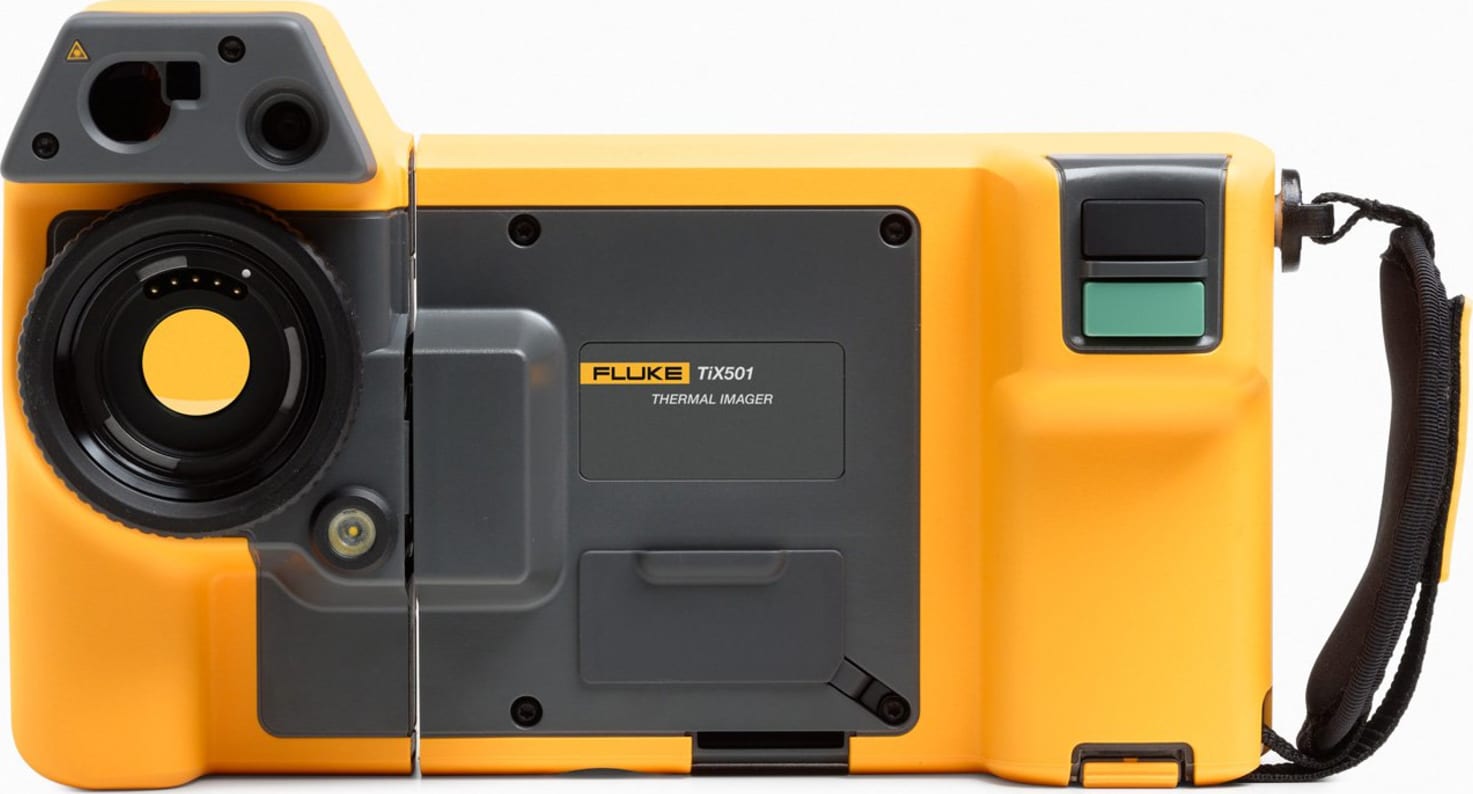

TiX501 |
TIX580 |
| Key features |
| Detector resolution |
640 x 480 (307,200 pixels) |
640 x 480 (307,200 pixels) |
| SuperResolution |
No |
Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| IFOV with standard lens (spatial resolution) |
0.93 mRad, D:S 1065:1 |
0.93 mRad, D:S 1065:1 |
| Field of view |
34 °H x 24 °V |
34 °H x 24 °V |
| Minimum focus distance |
15 cm (approx. 6 in) |
| MultiSharp™ Focus |
No |
Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus |
Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter |
Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus |
Yes |
| Wireless connectivity |
Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) |
| Fluke Connect® app compatible |
Yes*, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect® Assets optional software |
Future**, Automatically assign images to assets, easily compare measurement types in one location and create reports through a cloud-based system. |
Yes*, assign images to assets and create work orders. Easily compare measurement types in one location. |
| Fluke Connect® Instant Upload |
Yes*, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect® Instant Server Upload |
Yes* |
| IR-Fusion® technology |
Yes, adds the context of the visible details to your infrared image |
| Ruggedized touchscreen display |
5.7 inch (14.4 cm) landscape 640 x 480 LCD |
5.7 inch (14.4 cm) landscape 640 x 480 LCD |
| Thermal sensitivity (NETD)** |
≤ 0.075 °C at 30 °C target temp (75 mK) |
≤ 0.05 °C at 30 °C target temp (50 mK) |
| Level and span |
Smooth auto and manual scaling |
| Fast auto toggle between manual and auto modes |
Yes |
| Fast auto-rescale in manual mode |
Yes |
| Minimum span (in manual mode) |
2.0 °C (3.6 °F) |
| Minimum span (in auto mode) |
3.0 °C (5.4 °F) |
| Built-in digital camera (visible light) |
5MP |
| Frame rate |
60 Hz or 9 Hz versions |
| Laser pointer |
Yes |
| LED light (torch) |
Yes |
| Digital zoom |
2x |
2x, 4x, and 8x |
| Data storage and image capture |
| Extensive memory options |
Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to for permanent storage. |
| Image file formats |
bmp, jpeg, is2, is3, AVI |
Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files |
| Memory review |
Thumbnail and full screen review |
| Software |
SmartView® software—full analysis and reporting software |
Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system |
| Export file formats with Fluke Connect® desktop software |
Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation |
60 seconds maximum recording time per image; reviewable playback on camera, optional bluetooth headset available but not required |
60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes |
Yes (2 images) |
Yes (5 images) |
| Text annotation |
Yes |
| Video recording |
Standard |
Standard and radiometric |
| Remote control operation |
Remote display through Fluke Connect |
Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app |
| Auto capture (temperature and interval) |
No |
Yes |
| Battery |
| Batteries (field-replaceable, rechargeable) |
Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life |
2-3 hours per battery (*Actual life varies depending on settings and usage) |
| Battery charge time |
2.5 hours to full charge |
| Battery charging system |
Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation |
AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving |
User selectable sleep and power off modes |
*Fluke Connect analysis and reporting software is available in all countries but Fluke Connect is not. Please check availability with your authorized Fluke distributor.
** Best possible |
