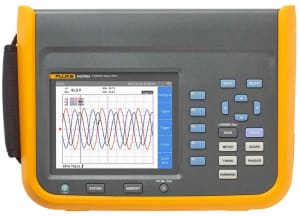

Fluke NORMA 6003 Portable Power Analyzer without Speed and Torque, Three-Channel

Name: Fluke NORMA 6003 Portable Power Analyzer without Speed and Torque, Three-Channel
Brand: Fluke
SKU: FlukeNORMA 6003
Price: 11094.99 USD
Availability: InStock

0 reviews | Catalog: 5125180 | UPC: 095969918701 | Model: Fluke NORMA 6003

Fluke Norma 6000 Series Portable Power Analyzers

Compare

Portable Power Analyzer without Speed and Torque, Three-Channel

Inputs: 3 Voltage + 3 Current
Portable Power Analyzer without Speed and Torque, Three-Channel
Measure voltage, current, active power, reactive power, apparent power, power factor and harmonics with associated values
Get accurate, precise results with 0.1% measurement accuracy and a 500kHz bandwidth
Take precision power measurements almost anywhere - highly portable, battery powered analyzer weighing only 3.5kg with up to 10 hours of battery life
Highly portable and easily installed in tight spaces - only 9.6 cm thick.
Operate continuously for up to 10 hours without an external power supply using the 5000mAh Li-ion Internal Battery.
Measure safely - safety rated for CAT III 1000V, CAT IV 600V environments.
Measure three phase power and DC output power at the same time with 3 or 4 channel models, with voltage and current inputs on each channel.
Make mechanical torque and speed measurements using the included inputs and outputs of the Fluke 6003+ and 6004+.
0.1% accuracy, 500kHz bandwidth, 200ks/s sample rate so you can rely on the power conversion system measurements you take no matter what distortion may be present.
USB and RS485 interface and open communication protocol for easy system integration and software platform flexibility.
Combine two analyzers to enable simultaneous measurement of multiple circuits for even more troubleshooting capability - configurable to 6 or 8 channels using dual analyzer synchronization.
View critical data in the field on the main display - Meter, Waveform, Harmonics up to the 100th, Vector and Trend.
Ensure high common-mode rejection and allow flexible configurations according to measurement requirements using the electrically isolated channels.
User adjustable measurement rate from 100ms to 1s with continuous logging via 32GB of on board storage.
Easy in-field set up using the integrated front panel or a remote PC connection (USB or RS485).
Online measuring, data download and analysis with included PC software (Fluke Power Analyzer Software).
Full remote control of the connected instrument using Fluke Power Analyzer Software and a local USB or long-distance RS485 connection.

View Product Details

Your Price: $11,094.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
Request a Demo

View Payment Options

Request Quote

Items in This Series



Product	Fluke NORMA 6003 Portable Power Analyzer without Speed and Torque, Three-Channel	Fluke NORMA 6004+ Portable Power Analyzer with Speed and Torque, Four-Channel	Fluke NORMA 6004 Portable Power Analyzer without Speed and Torque, Four-Channel	Fluke NORMA 6003+ Portable Power Analyzer with Speed and Torque, Three-Channel
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Fluke Norma 6000 Series Portable Power Analyzers

Portable Power Analyzer without Speed and Torque, Three-Channel

Inputs: 3 Voltage + 3 Current
Measure voltage, current, active power, reactive power, apparent power, power factor and harmonics with associated values
Get accurate, precise results with 0.1% measurement accuracy and a 500kHz bandwidth
Take precision power measurements almost anywhere - highly portable, battery powered analyzer weighing only 3.5kg with up to 10 hours of battery life
Highly portable and easily installed in tight spaces - only 9.6 cm thick.

The Fluke Norma 6000 Series Portable Wide band Precision Power Analyzers give you more freedom than ever before to make high accuracy power measurements wherever you need to - whether in the lab, or in the field. Designed for portability the lightweight, battery powered Fluke 6000 Series eliminates the need to carry large, fragile, expensive analyzers into the field, allowing you to make measurements directly at the load in nearly any environment. By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables, not just at a test bench or in the lab.

The Fluke 6003 includes three measurement channels which each consist of a voltage and current input making it ideal for three-phase power measurements.

General Specifications
Inputs	Norma 6003	3 Voltage + 3 Current
	Norma 6003+	3 Voltage + 3 Current + 1 Motor
	Norma 6004	4 Voltage + 4 Current
	Norma 6004+	4 Voltage + 4 Current + 1 Motor
Sample rate	200ks/s
Measurement update rate	100ms, 200ms, 500ms, 1s
Dimensions (H * W * L)	298mm x 215m x 96mm
Weight	3.5 kg (7.7 lbs)
Display	5.7 inch, TFT LCD, 640x480
Operating temperature	-10 °C to +50 °C
Storage temperature	-30 °C to +60 °C
Operating humidity	Non-condensing (< 10 °C ) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C)
Operating altitude	2000m
Storage altitude	12000m
Ingress protection	IP 50 (Terminals mated) according to IEC 60529:
Battery	BP 291, 10.8V/5000mAh, 54Wh IEC 62133, UN38.3 Operating time: 10 Hours (on battery)
Safety	IEC 61010-1: Pollution Degree 2 IEC 61010-2-030: CAT IV 600V, CAT III 1000 V
EMC	IEC 61326-1: Industrial IEC 61326-2-2
Warranty	1 Year
Communication Interface	USB/RS485
Dual Analyzer Synchronization Mode	Able to extend to 6, 7 or 8 channels (using multiple instruments)
PC Software	Fluke Power Analyzer software
Storage Capacity	32GB
Data trend storage rate	As per display rate
Main Function	Meter, Scope, Harmonic, Phasor, Trend
Electrical Specifications
Voltage
Range	10 V, 100 V, 1000 V
Crest Factor	CF ≤ 2
Maximum Voltage	10 % overload
Input Impedance	2M Ω/10pF (Typical)
Temperature Coefficient	0.05 * (Spec)/k
Bandwidth	1000V range: 500kHz; 100V range: 200 kHz; 10V range:100 kHz
CMRR	120 dB @ 50/60 Hz

Accuracy (% reading + % range)
Range	1000 V	100 V	10 V
DC	0.1 + 0.1	0.1 + 0.1	0.1 + 0.2
AC (10Hz to 1kHz)	0.1 + 0.1	0.1 + 0.1	0.1 + 0.2
AC (10kHz)	5 + 0.5	5 + 0.5	5 + 0.5
Current
Crest Factor	CF ≤ 2
Temperature Coefficient	0.05 x (Spec)/k
Overload capacity	10 % overload
CMRR	120 dB @ 50/60 Hz
Shunt (current input)
Measuring Range	0.1 A, 1 A, 10 A
Input Impedance	0.025 Ω (Typical)
Bandwidth	10 A range: 500 kHz; 1 A range: 200 kHz; 0.1 A range: 100 kHz
BNC (voltage input)
Range	0.1 V, 1 V, 10 V
Input Impedance	100k Ω/100pF (Typical)
Bandwidth	10 V range: 500 kHz; 1 V range: 200 kHz; 0.1 V range: 100 kHz

Test Equipment General Attributes
Product Height	10.50 IN
Product Length	16.00 IN
Product Width	12.00 IN
HTS/Schedule B Number	9030.39.0100
ECCN Number	3A992
Country of Origin	China
Shipping Height	10.50 IN
Shipping Length	16.00 IN
Shipping Width	12.00 IN
