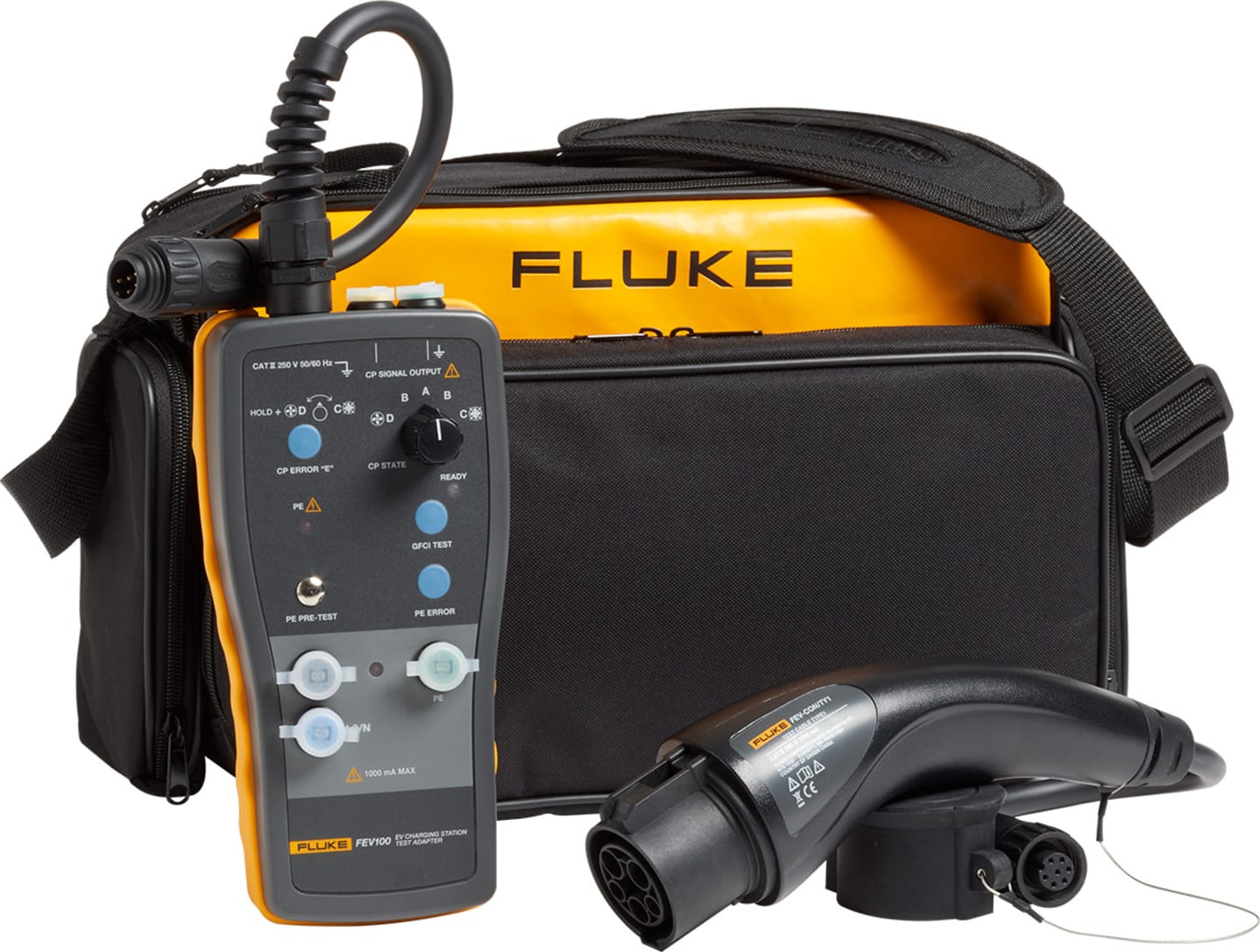

Fluke FEV100/TY1 - Test Adapter EV Charging Stations with Type 1 Connector And Cable

Name: Fluke FEV100/TY1 - Test Adapter EV Charging Stations with Type 1 Connector And Cable
Brand: Fluke
SKU: FlukeFEV100/TY1
Price: 1199.99 USD
Availability: InStock

0 reviews | Catalog: 5258790 | UPC: 195112015001 | Model: Fluke FEV100/TY1

Images (9) | Videos (12)

Compare

TEST ADAPTER EV CHARGING STATIONS W/TYPE 1 CONNECTOR and CABLE

Test different charging states of an electric vehicle charging station with the turn of a button
Verify the charging voltage using a digital multimeter
CP Control Pilot state simulation tests different charging states
PE Pre-Test for dangerous voltage
Output voltage: Max. 250 V / 60 Hz, CAT II 300 V
Digital multimeter, oscilloscope
GFCI TESTING Stay protected from and check risk of electric shock
Integrates into Fluke portfolio of test and measurement tools
SAE J1772 Complies with North American standards

View Product Details

Your Price: $1,199.99

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Fluke FEV100/TY1 TEST ADAPTER EV CHARGING STATIONS W/TYPE 1 CONNECTOR and CABLE	Fluke FEV100/BASIC Electric Vehicle Charging Station EVSE Test Adapter	Fluke FEV100/TY1 KIT TEST ADAPTER EV CHARGING W/TYPE 1 PLUG, 87V, TL224, US	Fluke FEV100/TY1 KIT2 TEST ADAPTER EV CHARGING W/TYPE 1 PLUG, 125B, 87V, TL224, US	Fluke FEV100/TY1 & TSL TEST ADAPTER EV CHARGING W/TYPE 1 and TESLA TYPE PLUG, US	Fluke FEV-CON-TSL TESLA TYPE PLUG FOR TEST ADAPTER EV CHARGING, US
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Fluke FEV100/TY1 Accessories

Choose a Category

for the Fluke FEV100/TY1

Fluke BT521 Fluke BT521 Advanced Battery Analyzer with Short Probe, Extender Set and...

Catalog: 4489996

(1)

In Stock!

Add to Cart

Fluke FEV-CON/TY1 Type 1 Connector and Cable for EV Test Adapter

Catalog: 5258815

(0)

In Stock!

Add to Cart

Fluke 376 FC 1000A AC/DC TRMS CLAMPMETER W/ 18" IFLEX

Catalog: 5065965

(14)

In Stock!

Add to Cart

Fluke 1664FC FLUKE CONNECT INSTALLATION TESTER W/INSULATION PRE-TEST, US

Catalog: 4884288

(0)

In Stock!

Add to Cart

Fluke 1630-2 FC EARTH GROUND LOOP AND LEAKAGE CLAMP

Catalog: 4829532

(0)

In Stock!

Add to Cart

Fluke 1587 FC Fluke 1587 FC True-RMS Megohmmeter/Insulation Resistance Tester and...

Catalog: 4691215

(10)

In Stock!

Add to Cart

Fluke FEV100/TY1 - Test Adapter EV Charging Stations with Type 1 Connector And Cable

Test different charging states of an electric vehicle charging station with the turn of a button
Verify the charging voltage using a digital multimeter
CP Control Pilot state simulation tests different charging states
PE Pre-Test for dangerous voltage
Output voltage: Max. 250 V / 60 Hz, CAT II 300 V

Fluke FEV100/TY1 is the first Fluke product for the electric vehicle charging segment. It is designed to test function and safety of electric vehicles charging stations, recommended to comply with SAE-J1772 standards for US stations. Provides critical protective ground testing of the station, GFCI troubleshooting and CP communication stages between vehicle and station.

Fluke FEV100/TY1 Specifications
Safety standards	IEC 61010-1, Pollution Degree 2 IEC 61010-2-030
Electromagnetic Compatibility (EMC)
International	IEC 61326-1: Basic Electromagnetic Environment CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
USA (FCC)	47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Functions
CP States	A, B, C, D
CP Error “E”	On/off
PE Error	On/off
GFCI Test	Yes, test resistor of 2 kΩ connected between L1 and PE, time limitation 40 ms
PE Pre-Test (typical)	Visible indication >30 V on PE conductor
Outputs (for test purpose only)
Measuring terminals L1, L2/N, PE	Max. 250 V 50/60 Hz, CAT II 250 V
CP signal output terminals	Approx. ±12 V (under normal conditions), in case of wrong wiring or error of the charging station these terminals can be hazardous ≥ max. 250 V against PE

Tech Specs

General Attributes
Warranty	3 YEARS
Product Weight	4.4 LBS
Product Height	8.66 IN
Product Length	1.77 IN
Product Width	4.33 IN
Country of Origin	China
Test Equipment General Attributes
IP Rating	IP54
