Diagnostic specifications |
Standard faults |
Unbalance, looseness, misalignment and bearing failures |
Analysis for |
Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles |
Machine rotational speed range |
200 rpm to 12000 rpm |
Diagnosis details |
Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra |
Electrical specifications |
Ranging |
Automatic |
A/D converter |
4 channel, 24 bit |
Usable bandwidth |
2 Hz to 20 kHz |
Sampling |
51.2 Hz |
Digital signal processing functions |
Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging |
Sampling rate |
2.5 kHz to 50 kHz |
Dynamic range |
128 dB |
Signal to noise ratio |
100 dB |
FFT resolution |
800 lines |
Spectral windows |
Hanning |
Frequency units |
Hz, orders, cpm |
Amplitude units |
in/sec, mm/sec, VdB (US), VdB* (Europe) |
Non-volatile memory |
SD micro memory card, 2 GB internal + user accessible slot for additional storage |
General specifications |
Dimensions (HxDxW) |
18.56 cm x 7.00 cm x 26.72 cm (7.30 in x 2.76 in x 10.52 in) |
Weight (with battery) |
1.9 kg (4.2 lb) |
Display |
¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight |
Input/Output Connections |
Triaxial sensor connection 4 pin M12 connector
Single axis sensor connection BNC connector
Tachometer Connection Mini DIN 6 pin connector
PC Connection Mini ‘B’ USB (2.0) connector |
Battery |
Battery type Lithium-ion, 14.8 V, 2.55 Ah
Battery charging time Three hours
Battery discharge time Eight hours (under normal conditions) |
AC adapter |
Input voltage 100 Vac to 240 Vac
Input frequency 50/60 Hz |
Operating system |
WinCE 6.0 Core |
Language Support |
English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish |
Warranty |
Three-years |
Environmental Specifications |
Operating temperature |
0 °C to 50 °C (32 °F to 122 °F) |
Storage temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
Operating humidity |
10 % to 95 % RH (non-condensing) |
Agency approvals |
CHINA RoHS, CSA, CE, C TICK, WEEE |
Electromagnetic compatibility |
EN 61326-1:2006, EN 61010:1:2001 2nd ed. |
Sensor specifications |
Sensor type |
Accelerometer |
Sensitivity |
100 mV/g (± 5 %, 25 °C) |
Acceleration range |
80 g peak |
Amplitude nonlinearity |
1 % |
Frequency response |
Z: 2 - 7,000 Hz ± 3dB
X, Y: 2 - 5,000 Hz ± 3dB |
Power requirement (IEPE) |
18 V dc to 30 V dc, 2 mA to 10 mA |
Bias output voltage |
12 V dc |
Grounding |
Case grounded |
Sensing element design |
PZT ceramic / shear |
Case material |
316L stainless steel |
Mounting |
10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength) |
Output connector |
4-Pin, M12 |
Mating connector |
M12 - F4D |
Non-volatile memory |
TEDS 1451.4 compatible |
Vibration limit |
500 g peak |
Shock limit |
5000 g peak |
Electromagnetic sensitivity, equivalent g |
100 µg/gauss |
Sealing |
Hermetic |
Temperature range |
-50 °C to 120 °C (-58 °F to 248 °F) ± 7 % |
Warranty |
One-year |
Tachometer specifications |
Dimensions (DxW) |
2.86 cm x 12.19 cm (1.125 in x 4.80 in) |
Weight |
96 g (3.4 oz) with cable |
Power |

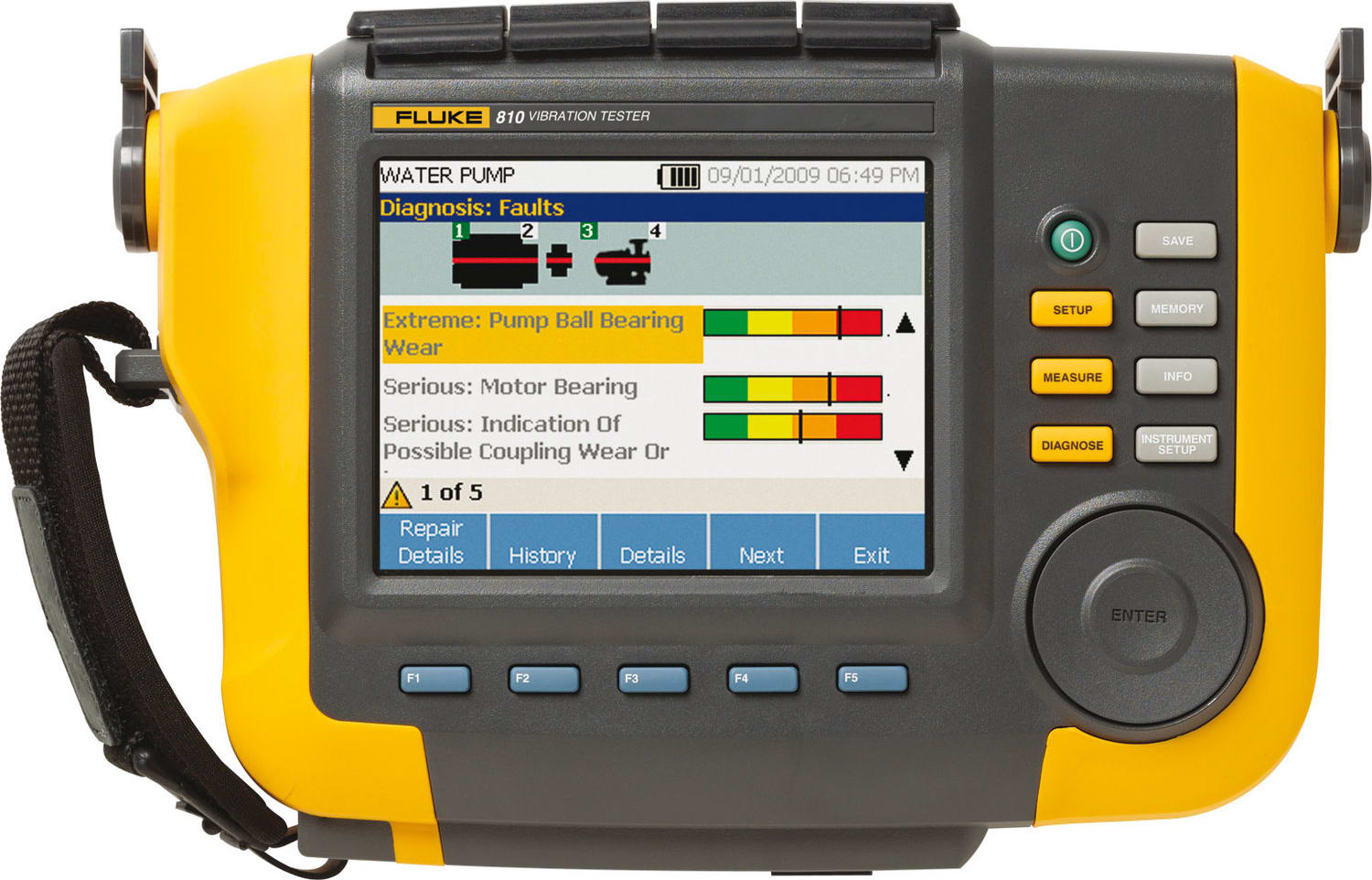

Powered by 810 Vibration Tester |
Detection |
Laser Diode Class 2 |
Range |
6.0 to 99,999 rpm |
Accuracy |
6.0 to 5999.9 rpm: ± 0.01 % and ± 1 digit
5999.9 to 99999 rpm: ± 0.05 % and ± 1 digit |
Resolution |
0.1 rpm |
Effective range |
1 cm to 100 cm (0.4 in to 39.27 in) |
Response time |
1 second (> 60 rpm) |
Controls |
Measure on/off transparent button |
Interface |
6 Pin Mini DIN |
Cable length |
50 cm (19.586 in) |
Warranty |
One-year |
Tachometer accessories |
Reflective tape: 1.5 cm x 52.5 cm (0.59 in × 20.67 in) |
Viewer PC Software |
Minimum hardware requirements |
1 GB RAM |
Operating system requirements |
Windows XP, Vista |
