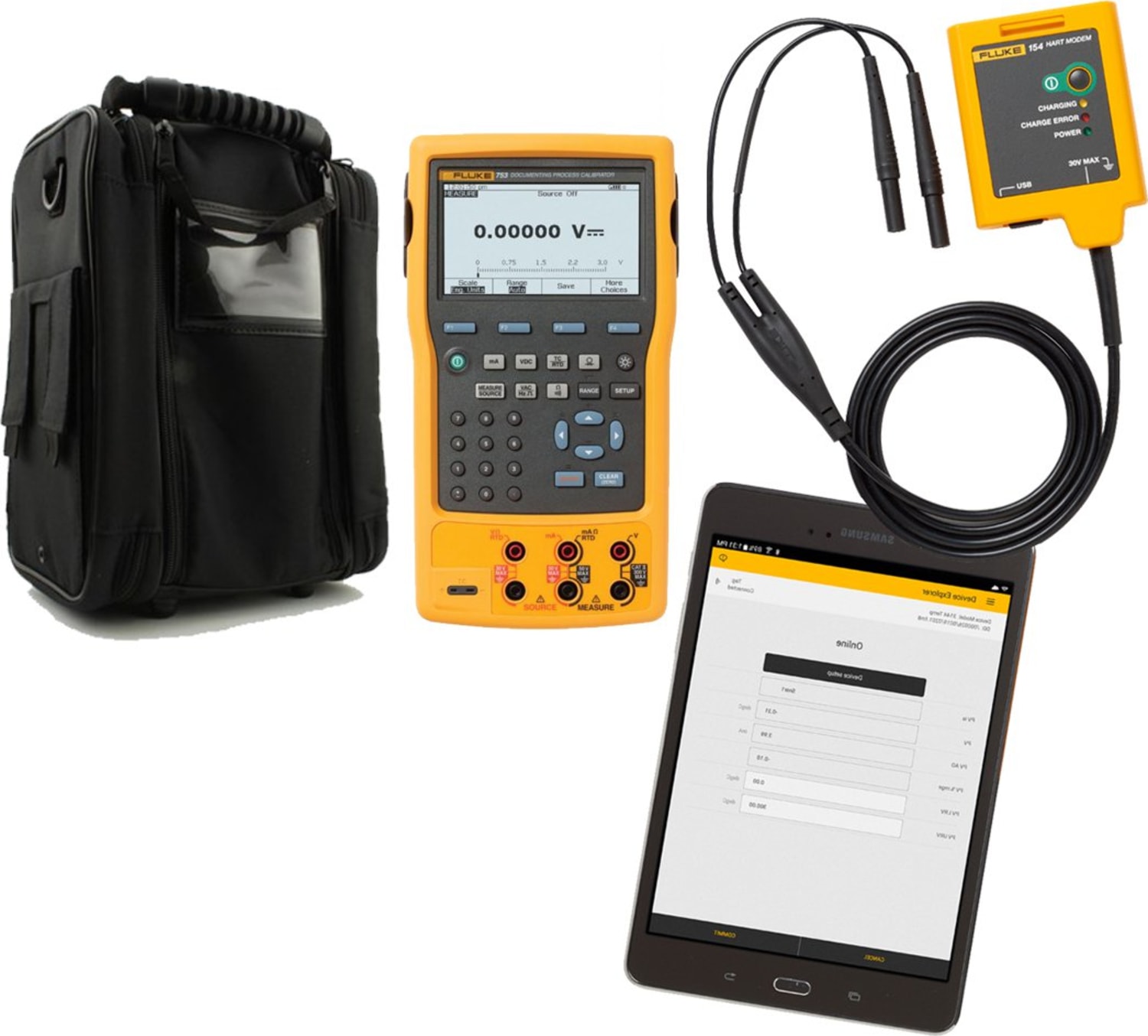

Fluke 753/154 BU Bundle with Rugged Case

Name: Fluke 753/154 BU Bundle with Rugged Case
Brand: Fluke
SKU: Fluke753/154 BU
Price: 9249.99 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | Catalog: 4816019 | UPC: 095969827683 | Model: Fluke 753/154 BU

Images (3) | Videos (3)

Compare

Fluke 753/154 BU Documenting Process Calibrator, HART Communications Calibration Assistant Combo Kit

753 Documenting Process Calibrator

Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments
Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results
Holds up to a full week of downloaded procedures and calibration results
Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc

154 HART Calibration Assistant

Full HART Device Description (DD) support of all HART devices
Configure HART devices
Perform HART trim on HART devices when used with a Fluke 750, or 720 series calibrator
Monitor device PV, SV, TV, QV and other measured HART variables
Quarterly HART DD updates for free
Convenient wireless connectivity to HART modem
Easy to use, fast connect and view HART data
Store HART device configurations
Long range wireless communication up to 250 feet

View Product Details

List Price: $9,249.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Alligator Clips

for the Fluke 753/154 BU

Fluke AC175 SLIDE-ON ALLIGATOR CLIP SET

Catalog: 4101772

(5)

In Stock!

Add to Cart

Fluke 753/154 BU Bundle with Rugged Case

Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters
Power transmitters during test using loop supply with simultaneous mA measurement
Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results

Fluke 154 HART Calibration Assistant

Full HART Device Description (DD) support of all HART devices
Configure HART devices
Perform HART trim on HART devices when used with a Fluke 750 or 720 series calibrator
Monitor device PV, SV, TV, QV and other measured HART variables
Quarterly HART DD updates for free
Convenient wireless connectivity to HART modem

Fluke 753 Specification
Environmental Specifications
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +60 °C
Dust/water resistance	Meets IP52, IEC 529
Operating Altitude	3000 m above mean sea level (9842 ft)
Safety Specifications
Agency Approvals	CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993
Mechanical & General Specifications
Size	136 x 245 x 63 mm (5.4“ x 9.6 x 2.5)
Weight	1.2 kg (2.7 lb)
Batteries	Internal Battery Pack Li-ion: 7.2V, 4400mAh, 30 Wh
Battery Life	>8 hours typical
Battery Replacement	Via snap-shut door without opening calibrator; no tools required
Side port connections	Pressure module connector USB Connector to interface to your PC Connection for optional battery charger/eliminator
Data storage capacity	1 week of calibration procedures results
90 day specifications	The standard specification interval for the 750 Series are 1 and 2 years Typical 90 day measurement and source accuracy can be estimated by dividing the one year "% of reading" or "%of output" specifications by 2 Floor specifications, expressed as "% of full scale" or "counts" or "ohms" remain constant.
Fluke 154 Specification
Tablet
Operating system	Android 5.0 or newer
Processor	ARM or Atom
Memory RAM	1 GB
Memory ROM	2GB
Screen	960x540 qHD
Communication port	Bluetooth
HART Modem
Enclosure
Material	High strength ABS Plastic
Dimensions (LxWxH)	10.16 cm x 2.5 cm x 6.9 cm (4 in x 1 in x 2.75 in)
Total unit weight	.16 kg (0.36 lb)
Cables
HART cable length	4 ft (1.2 m)
HART cable connectors	Mini-Grabber
HART Interface
Interface	Capacitive coupling
Output	600 mVpp
Leakage	< 10 uA
Connections	Across loop resistor or HART field device
Specifications	HART 4, HART 5, HART 6, HART 7
HART physical layer spec	HCF_SPEC-54
Wireless Interface
Specification Bluetooth	v2.0
Frequency	2.4 GHz
Class 1 master distance	275 ft (83.8 m)
Battery
Type	Rechargeable Li-Ion
Life	19 hours continuous use
Environmental
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-10 °C to 45 °C (-14 °F to 113 °F)
Humidity	0 % to 90 % (non-condensing)

Tech Specs

Test Equipment General Attributes
Product Height	7.00 IN
Product Length	17.00 IN
Product Width	14.00 IN
Country of Origin	United States
Shipping Height	7.00 IN
Shipping Length	17.00 IN
Shipping Width	14.00 IN

5

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Displaying all 2 reviews

Most Helpful First | Newest First

Recommend to a Friend

Great Instrument

5.0

Fantastic price on a great instrument. Didn't need the 754, because the 154 is a more capable HART communicator.

Verified Purchase R Paul Lusich Jr on May 13, 2019

Recommend to a Friend

Extremely Capable, Full Featured Test Instrument

5.0

The 753 is Full Features, and intuitive. A great addition to our process control troubleshooting, testing, and calibration equipment. The 154 Hart comm tool is also very easy to use, and capable.

Verified Purchase R Paul Lusich Jr on Apr 19, 2019
