Fluke 5618B-6-I Temperature Probes - Max Temperature: 300 C, Min Temperature: -200 C, Wire Termination: Other

Name: Fluke 5618B-6-I Temperature Probes - Max Temperature: 300 C, Min Temperature: -200 C, Wire Termination: Other
Brand: Fluke
SKU: Fluke5618B-6-I
Price: 1327.00 USD
Availability: InStock

0 reviews | Catalog: 3003354 | UPC: 095969402934 | Model: Fluke 5618B-6-I

Compare

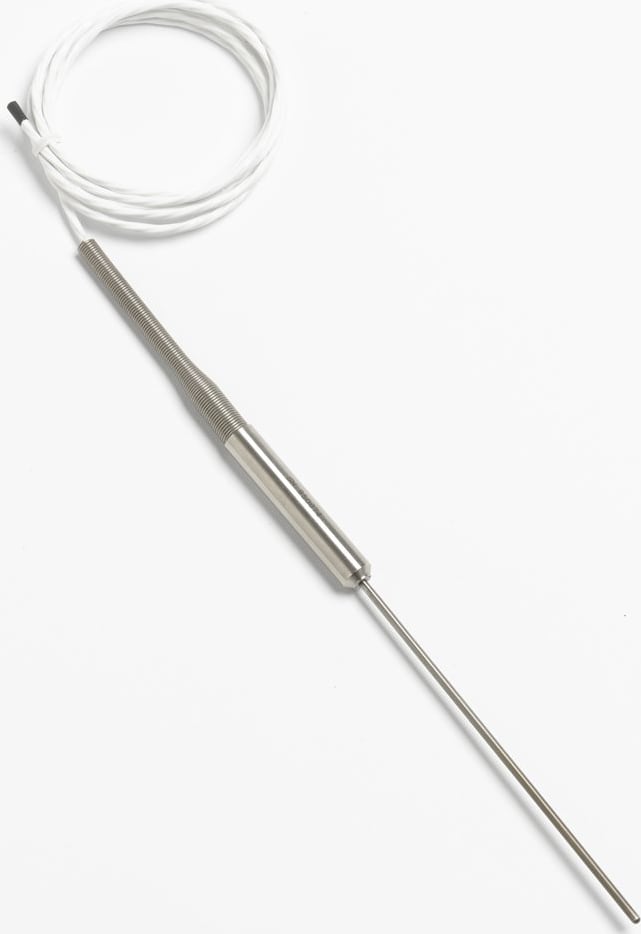

PROBE, SECON. PRT, 6 X 1/8 INCH OD

Small diameter sheath, 3.2mm (0.125 in)
Excellent stability
Includes ITS-90 coefficients
NVLAP-accredited calibrated from –200°C to 500°C, lab code 200706-0

View Product Details

List Price: $1,327.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Cases

for the Fluke 5618B-6-I

Fluke 2601 CASE, PROBE CARRYING

Catalog: 1650896

(0)

In Stock!

Add to Cart

Fluke 2609 CASE, LONG PROBE CARRYING

Catalog: 2788701

(0)

In Stock!

Add to Cart

With each probe you will receive a full NVLAP-accredited calibration report. On the report you’ll get the test data and the ITS-90 calibration coefficients that you can easily input into your Fluke Calibration thermometer.

The 5618B is also a great probe to use for calibrating your Fluke Calibration 9132 or 9133 infrared calibrators. In fact, these IR black body heat sources were designed to be calibrated with this type of probe. Now you can calibrate these targets in your own lab!

For use from –200 °C to 500 °C (the six-inch model goes to 300 °C), you won’t find a better industrial standard in this configuration than our 5618B. We recommend using the 5618B PRTs with the 1523, 1524, 1502A, 1529, or 1560 thermometer readouts.

Specifications

Resistance

Nominal 100 Ω at 0 °C

Temperature
Coefficient

0.003923 Ω/Ω/ °C nominal

Temperature
Range

–200 °C to 500 °C
(–200 °C to 300 °C for 5618B-6-X)

Drift Rate

± 0.1 °C when used periodically to 500 °C

Sheath Material

316 SST

Leads

22 AWG PTFE, 6’

Termination

Specify

Hysteresis

Less than 0.01 °C at 0 °C when using –196 °C and
420 °C as the end points.

Time Constant

Four seconds maximum for 63.2 % response to
step change in water moving
at 3 fps.

Thermal EMF

Less than 25 mV at 420 °C

Calibration

Includes manufacturer’s NVLAP-accredited
calibration w/ITS-90 coefficients, R vs. T values in
1 °C increments, lab code 200706-0

Size

5618B-12: 305 mm L x 3.2 mm dia. (12 x 1/8 in)
5618B-9: 229 mm L x 3.2 mm dia. (9 x 1/8 in)
5618B-6: 152 mm L x 3.2 mm dia. (6 x 1/8 in)

Calibrated
Accuracy† (k=2)

± 0.026 °C at –200 °C
± 0.066 °C at 0 °C
± 0.219 °C at 500 °C

†Includes
calibration
uncertainty and
drift specification.

NVLAP† Calibration Uncertainty
Temperature	Expanded Uncertainty (k=2)
–196 °C	0.024 °C
–38 °C	0.011 °C
0 °C	0.010 °C
200 °C	0.018 °C
420 °C‡	0.029 °C
Note: Calibration uncertainties depend on the uncertainties of the lab performing the calibration. Subsequent calibrations of this probe performed with different processes, at different facilities, or with changed uncertainty statements may state different uncertainties. †Lab code 200706-0 ‡300 °C for 5618B-6

Tech Specs

Accessories/Probes/Temperature Probes Template
Application/Properties	Gas/Air, General, Immersion, Piercing, Pipe, Surface
Max Temperature	300 C
Min Temperature	-200 C (-328 F)
Wire Termination	Other
Insulation Material	Stainless Steel
Probe Length	6 IN
Lead Length	72 IN (25.40 MM)
Test Equipment General Attributes
Unique Features	Resistance Nominal 100 Ω at 0 °C Temperature Coefficient 0.003923 Ω/Ω/ °C nominal Temperature Range –200 °C to 500 °C (–200 °C to 300 °C for 5618B-6-X) Drift Rate ± 0.1 °C when used periodically to 500 °C Sheath Material 316 SST Leads 22 AWG PTFE, 6’ Termination Specify Hysteresis Less than 0.01 °C at 0 °C when using –196 °C and 420 °C as the end points. Time Constant Four seconds maximum for 63.2 % response to step change in water moving at 3 fps.
Warranty	1 YEARS
Additional Info/Comments	Thermal EMF Less than 25 mV at 420 °C Calibration Includes manufacturer’s NVLAP-accredited calibration w/ITS-90 coefficients, R vs. T values in 1 °C increments, lab code 200706-0 Size 5618B-12: 305 mm L x 3.2 mm dia. (12 x 1/8 in) 5618B-9: 229 mm L x 3.2 mm dia. (9 x 1/8 in) 5618B-6: 152 mm L x 3.2 mm dia. (6 x 1/8 in) Calibrated Accuracy† (k=2) ± 0.026 °C at –200 °C ± 0.066 °C at 0 °C ± 0.219 °C at 500 °C
Interfaces I/O	Other
Product Weight	7.94 LBS
Product Height	7.99 IN
Product Length	24.02 IN
Product Width	12.01 IN
Shipping Weight	8.73 LBS
Data Logging	No
ECCN Number	3A992
Calibration Included	NIST Calibration
Country of Origin	United States
Shipping Height	3.15 IN
UPC	095969402934
Shipping Length	20.87 IN
Shipping Width	11.02 IN
