PROBE, BARE THERMISTOR - TEFLON, I = INFO-CON for 1521 or 1522

Temperature probes with short-term accuracy to ± 0.01 °C; one-year drift < ± 0.01 °C
Accredited NVLAP calibration optional
Flexible PTFE and silicone coated fast-response models
Rugged polished stainless steel sheaths
X = termination. Specify “A” (INFO-CON for 914X), “B” (bare wire), “D” (5-pin DIN for Tweener Thermometers), “G” (gold pins), “I” (INFO-CON for 1521 or 1522), “J” (banana plugs), “L” (mini spade lugs), “M” (mini banana plugs), “P” (INFO-CON for 1523 or 1524), or “S” (spade lugs).

View Product Details

List Price: $926.00

In Stock:

View Payment Options

Recommended for you

These temperature probes are available in a variety of sheath materials appropriate for your specific application. In addition to our metal-sheathed temperature probes, we offer flexible PTFE encapsulated and silicone coated thermistors that have smaller tips and can measure those places where even a metal-sheathed thermistor can't reach.

PTFE encapsulated thermistor
The 5611T is an especially versatile PTFE coated thermistor probe. With a PTFE encapsulated tip that is just 3 mm (0.12 in) in diameter and a PTFE coating that makes it impervious to most liquids, the PTFE Probe is handy for measuring in a wide variety of applications, including bio-pharmaceuticals. It's even immersible to nearly 20 feet and flexible enough that you could roll it up into a ball in your hand if you wanted to!

The 5611T's thermistor bead is encapsulated in a Mylar sleeve that is encapsulated inside a PTFE sleeve. The PTFE sleeve is then melted around the PTFE-insulated cable, forming a moisture-proof seal.

Stainless steel sheathed thermistors

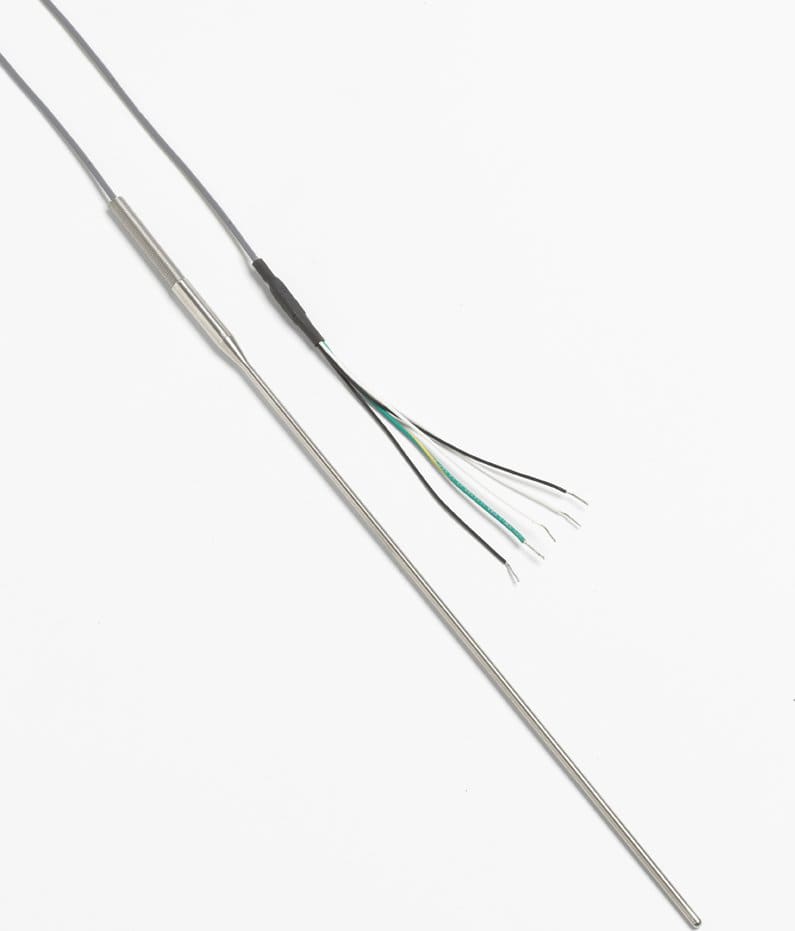

Our stainless steel metal-sheath probes include our 5610-6 and 5610-9 immersion probes, as well as our 5665 fully immersible probe. These probes are great for measuring in air, liquid or soil.

Silicone coated thermistor
With a diameter at the tip of just 1.5 mm (0.06 in), the 5611A's tip has the smallest diameter of any of our secondary reference thermistors and can fit nearly anywhere. Its faster response time, flexible sheath, and silicone coating make the 5611A great for use in many applications. However, applications involving silicone oil could damage the thermistor and should be avoided.

Higher performance
All Fluke Calibration secondary reference thermistors have small diameters and very small sensing elements, which means they require far less immersion than a PRT to avoid errors caused by stem effect. Self heating is usually negligible, giving them an advantage when taking measurements in air. Their small size also improves response time, allowing measurements to be taken more quickly.

If your application involves frequent handling, you'll be especially interested to know thermistors are less susceptible to mechanical shock than PRTs. The bottom line may be better accuracy in fieldwork.

Additionally, higher base resistance and larger resistance coefficients make it easier to achieve precision readings with thermistors, so better resolution and accuracy are possible for a lower cost. All of these thermistors have a negative temperature coefficient of resistance (NTC).

Readouts
These probes come in a complete assembly ready for use, and each works well with the uncertainties of our thermometer readouts: the 1504 Tweener, the 1523 and 1524 Handheld Thermometers, the 1529 Chub-E4, the 1560 Black Stack, and the 1575A and 1590 Super-Thermometers.

These probes provide most accurate readings when coupled with a 2563 Standards Thermistor Module or 1590 Super-Thermometer, but they are most portable when used with a handheld reference thermometer.

Calibrated accuracy
What's more, the Secondary Reference Series Thermistors are accurate to ± 0.01 °C and cover the temperature range of 0 °C to 100 °C. They come with a NIST-traceable calibration and a resistance-versus-temperature table printed in 0.1 °C increments that can be interpolated to 0.0001 °C. NVLAP accredited calibrations as single thermistors or as systems combined with their readouts, are also available.

No other sensors can match the accuracy and price combination of these high-accuracy thermistor probes. Try one and you'll agree.

Specifications
Resistance	Nominal 10,000 Ω at 25 °C
Range	0 °C to 100 °C
Calibration	R vs. T table with 0.1 °C increments, interpolation equation furnished
Calibration Uncertainty	Table and equation are accurate to ± 0.01 °C Optional accredited† calibration uncertainties ± 0.006 °C
Drift	Better than ± 0.01 °C per year (k=3)
Repeatability	Better than ± 0.005 °C

Termination	Specify when ordering.
†NVLAP Lab Code 200348-0

Fluke Calibration Platinum Resistance Thermometers (PRTs)
Model	Range	Size	Basic Accuracy^†
Platinum Resistance Thermometer: Secondary Standard PRT
5608-9-X	–200 to 500 °C	9 in x 1/8 in	Select from available calibration options
5608-12-X	–200 to 500 °C	12 in x 1/8 in
5609-12-X	–200 to 670 °C	12 in x 1/4 in
5609-15-X	–200 to 670 °C	15 in x 1/4 in
5609-20-X	–200 to 670 °C	20 in x 1/4 in
5609-300-X	–200 to 670 °C	300 mm x 6 mm
5609-400-X	–200 to 670 °C	400 mm x 6 mm
5609-500-X	–200 to 670 °C	500 mm x 6 mm
5626	–200 °C to 661 °C	305 or 381 x 6.35 mm (12 or 15 x 0.25 in	±0.007 °C at 0 °C
Platinum Resistance Thermometer: Secondary Reference PRT
5616-12	–200 °C to 420 °C	6.35 mm x 298 mm (0.250 x 11.75 in)	± 0.010 °C at 0.010 °C
5615-6	–200 to 300 °C	4.76 mm x 152 mm (0.188 x 6.0 in)	± 0.013 °C at 0.010 °C
5615-9	–200 °C to 420 °C	4.76 mm x 229 mm (0.188 x 9.0 in)	± 0.013 °C at 0.010 °C
>5615-12	–200 °C to 420 °C	6.35 mm x 305 mm (0.250 x 12.0 in)	± 0.013 °C at 0.010 °C
Platinum Resistance Thermometer: Precision Industrial PRT
5627A-6	–200 °C to 300 °C	152 x 4.7 mm (6 x 0.187 in)	±0.05 °C at 0 °C
5627A-9	–200 °C to 300 °C	229 x 4.7 mm (9 x 0.187 in)	±0.05 °C at 0 °C
5627A-12	–200 °C to 420 °C	305 x 6.35 mm (12 x 0.25 in)	±0.05 °C at 0 °C
Platinum Resistance Thermometer: Fast Response PRT
>5622-05	–200 °C to 350 °C	100 x 0.5 mm	±0.04 °C at 0 °C
>5622-10	–200 °C to 350 °C	100 x 1.0 mm	±0.04 °C at 0 °C
>5622-16	–200 °C to 350 °C	200 x 1.6 mm	±0.04 °C at 0 °C
>5622-32	–200 °C to 350 °C	200 x 3.2 mm	±0.04 °C at 0 °C
Platinum Resistance Thermometer: Small Diameter Industrial PRTs
5618B-6	–200 °C to 300 °C	152 x 3.2 mm (6 x 0.125 in)	±0.05 °C
5618B-9	–200 °C to 500 °C	229 x 3.2 mm (9 x 0.125 in)	±0.05 °C
5618B-12	–200 °C to 500 °C	305 x 3.2 mm (12 x 0.125 in)	±0.05 °C
Platinum Resistance Thermometer: Full Immersion PRTs
5606 Immersion PRT	–200 to 160 °C	50 x 3.1 mm ( 2 x 1/8 in)	±0.05 °C
5607 Immersion PRT	0 to 450 °C	75 x 3.1 mm (3 x 1/8 in)	±0.055 °C
5623B Freezer Probe	–100 °C to 156 °C	152 x 6.35 mm (6 x 0.25 in)	±0.05 °C
Thermistors
Thermistor: Standards
5640	0 °C to 60 °C	229 x 6.35 mm (9 x 0.25 in)	±0.0015 °C
5641	0 °C to 60 °C	114 x 3.2 mm (4.5 x 0.125 in)	±0.001 °C
5642	0 °C to 60 °C	229 x 3.2 mm (9 x 0.125 in)	±0.001 °C
5643	0 °C to 100 °C	114 x 3.2 mm (4.5 x 0.125 in)	±0.0025 °C
5644	0 °C to 100 °C	229 x 3.2 mm (9 x 0.125 in)	±0.0025 °C
Thermistor: Secondary Probes
5610	0 °C to 100 °C	152 or 229 x 3.2 mm (6 or 9 x 0.125 in)	±0.01 °C
5611A	0 °C to 100 °C	1.5 mm (0.06 in) tip dia.	±0.01 °C
5611T	0 °C to 100 °C	28 x 3 mm (1.1 x 0.12 in)	±0.01 °C
^†“Basic Accuracy” includes calibration uncertainty and short-term repeatability. It does not include long-term drift. X = termination. Specify A (INFO-CON for 914X), B (bare wire), D (5-pin DIN for Tweener Thermometers), G (gold pins), I (INFO-CON for 1521 or 1522), J (banana plugs), L (mini spade lugs), M (mini banana plugs), P (INFO-CON for 1523 or 1524), or S (spade lugs).

Tech Specs

Accessories/Probes/Temperature Probes Template
Application/Properties	Gas/Air, General, Immersion, Piercing, Pipe, Surface
Max Temperature	100 C
Min Temperature	0 C (32 F)
Wire Termination	Other
Insulation Material	Teflon
Probe Length	1.1 IN
Lead Length	240 IN (25.40 MM)
Test Equipment General Attributes
Unique Features	•Temperature probes with short-term accuracy to ± 0.01 °C; one-year drift < ± 0.01 °C •Accredited NVLAP calibration optional •Flexible PTFE and silicone coated fast-response models •Rugged polished stainless steel sheaths
Warranty	1 YEARS
Interfaces I/O	Other
Product Weight	7.94 LBS
Product Height	7.99 IN
Product Length	24.02 IN
Product Width	12.01 IN
Shipping Weight	8.73 LBS
Data Logging	No
ECCN Number	3A992
Calibration Included	NIST Calibration
Country of Origin	United States
Shipping Height	3.15 IN
UPC	095969369831
Shipping Length	20.87 IN
Shipping Width	11.02 IN
