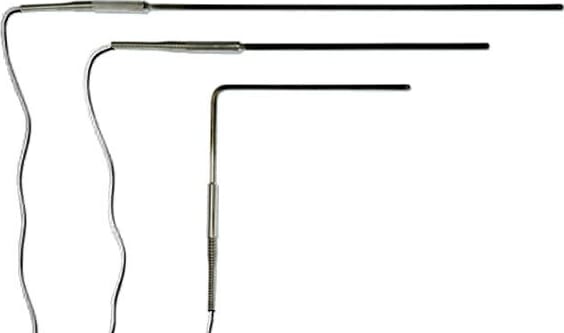

| Specifications |
| Temperature range |
5608: –200 °C to 500 °C |
5609: –200 °C to 670 °C |
| Nominal resistance at 0.01 °C |
100 Ω ± 0.5 Ω |
| Temperature coefficient |
0.0039250 Ω/Ω/°C |
| Relative Accuracy[1] |
± 0.007 °C at –200 °C
± 0.008 °C at 0 °C
± 0.020 °C at 420 °C
± 0.027 °C at 660 °C |
| Short-term repeatability[2] |
± 0.007 °C at 0.010 °C
± 0.013 °C at max temp |
| Drift[3] |
± 0.01 °C at 0.010 °C
± 0.02 °C at max temp |
| Hysteresis |
± 0.01 °C maximum |
| Sensor length |
30 mm ± 5 mm (1.2 in ± 0.2 in) |
| Sensor location |
3 mm ± 1 mm from tip (0.1 in ± 0.1 in) |
| Sheath material |
Inconel™ 600 |
| Minimum insulation resistance |
5608: 500 MΩ at 23 °C, 20 MΩ at 500 °C
5609: 500 MΩ at 23 °C, 10 MΩ at 670 °C |
| Transition junction temperature range[4] |
–50 °C to 200 °C |
| Transition junction dimensions |
71 mm x 12.5 mm (2.8 in x 0.49 in) |
|
Minimum immersion length[5] (<5 mK error)
|
5608: 80 mm (3.1 in)
5609: 100 mm (3.9 in) |
| Maximum immersion length |
305 mm (12 in) |
| Response time[5] |
5608: 9 seconds typical
5609: 12 seconds typical |
| Self heating (in 0 °C bath) |
5608: 75 mW/°C
5609: 50 mW/°C |
| Lead-wire cable type |
PTFE 24 AWG |
| Lead-wire length |
1.8 m (6 ft) |
| Lead-wire temperature range |
–50 °C to 250 °C |
| Calibration |
Calibration not included; NVLAP-accredited calibration optional, lab code 200348-0. Please see calibration uncertainty table and its explanation of changeable uncertainties.
|
[1] Includes short-term repeatability and 100 hr drift. Calibration will add additional uncertainties.
[2] Three thermal cycles from min to max temp, includes hysteresis, 95 % confidence (k=2)
[3] After 100 hours at max temp, 95 % confidence (k=2)
[4] Temperatures outside this range will cause irreparable damage. For best performance, transition junction should not be too hot to touch.
[5] Per ASTM E 644 |
| Calibration Uncertainty for optional NVLAP-accredited† calibration |
| Temperature |
Expanded Uncertainty (k=2) |
| –200 °C |
0.025 °C |
| –100 °C |
0.025 °C |
| –40 °C |
0.025 °C |
| 0 °C |
0.025 °C |
| 156 °C |
0.025 °C |
| 230 °C |
0.030 °C |
| 420 °C |
0.045 °C |
| 660 °C |
0.050 °C |
| Note: Calibration uncertainties depend on the uncertainties of the lab performing the calibration. Subsequent calibrations of this probe performed with different processes, at different facilities, or with changed uncertainty statements may state different uncertainties. †Lab code 200348-0 |
|
