0 reviews | Catalog: 5009268 | UPC: 095969876278 | Model: Fluke 3561/3502 FC
Fluke 3561/3502 FC Vibration Sensor Starter Kit with Model 3561 FC (x4), Model 3502 FC, and Fluke Connect Condition Monitoring Software (1 Year)
List Price: $1,195.00
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
The Fluke 3561 FC Vibration Sensor makes predictive maintenance fast and scalable. Install this 10-1000Hz wireless sensor and begin gathering data immediately. Use this sensor to remotely monitor dangerous or hard-to-reach places for three years. Be alerted to conditional changes with alarming based on the Fluke Overall Vibration Severity scale. Monitor vibration measurements to detect imbalance, misalignment, looseness, and bearing wear faults. The Fluke Connect™ system grades asset health from 37 machine categories, enabling you to decrease routes and improve uptime by giving you actionable insights.
Use the FCCM software from your computer or mobile device for remote monitoring.
FCCM software uses the Fluke Overall Vibration Severity scale to grade the health of 37 machine categories and sends alarms to user's smart devices or computers within seconds of an abnormality.
Using the Fluke Connect app, compare your vibration data with data from other portable and fixed Fluke tools and create work orders against the measurement data. Build a reliable mainte- nance program with over 80 Fluke Connect tools now available.
Chiller
Fans
Cooling tower drives
Centrifugal Pumps
Positive Displacement Pumps
Air compressors
Blowers
Generic gearboxes
Machine Tools
Example 1:
Example 2:
Example 3:
Answers (1) - Asked by Anonymous
I have this question too (0)
The 3502 FC Gateway only connects to the 3561 FC sensors. It does not connect to any other Fluke tools."
I found this helpful (0)
Inaccurate? (0)
Answered by Anonymous
No, it doesn''t require extensive setup and commissioning. Ideal for techs with little or no vibration experience
Subscriptions for each sensor starts at activation. If you buy the FLK-3561/3502 FC 3YR and activate those sensors you have 3 year from that point. If you buy more kits later on the subscription will start when you activate those new sensors.

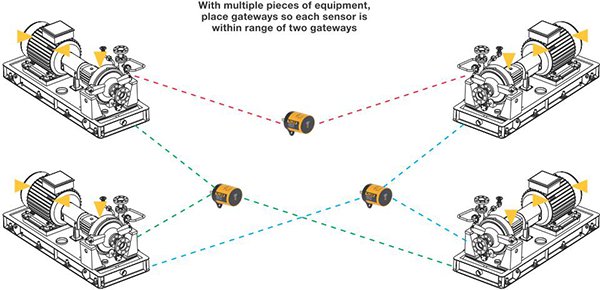

I''m assuming this would be for a contractor that would like to put multiple units at different customers sites. Separating the numbers as described above can be done. Because the software subscription is attached to the sensor, the sensors can be divided up as long as there is a gateway to capture the data and send to the Fluke Connect Cloud.
Because of the software aligning to the unit you would not get 6 years but rather 3 year for all the sensors you have.
The software subscription is attached to a unit so with four sensors in a kit there are 4 software subscriptions. The 3 year software subscription aligns with the 3 year battery life of the sensor (batteries are not replaceable). If you buy a Starter Kit with a 3 year subscription, any additional expansion kits will have their own licenses, either 1 year or 3 year.
I have this question too (1)
Battery life will range from 3-5 years and it is not replaceable / rechargeable.
Yes, you must have at least one gateway. Consider one of the starter kits that includes a gateway, vibration sensors, and software subscription.
Yes, if you buy a 1 year software subscription, a Fluke representative will reach out to you toward the end of your subscription to discuss buying another year-long subscription.
The 3561 FC sensors come in sets of 4 as a minimum. We do not sell individual 3561 FC sensors. If a single sensor is damaged and falls within the warrant regulations (this product as a 1 year warrant), then Fluke will replace it.
I found this helpful (1)
