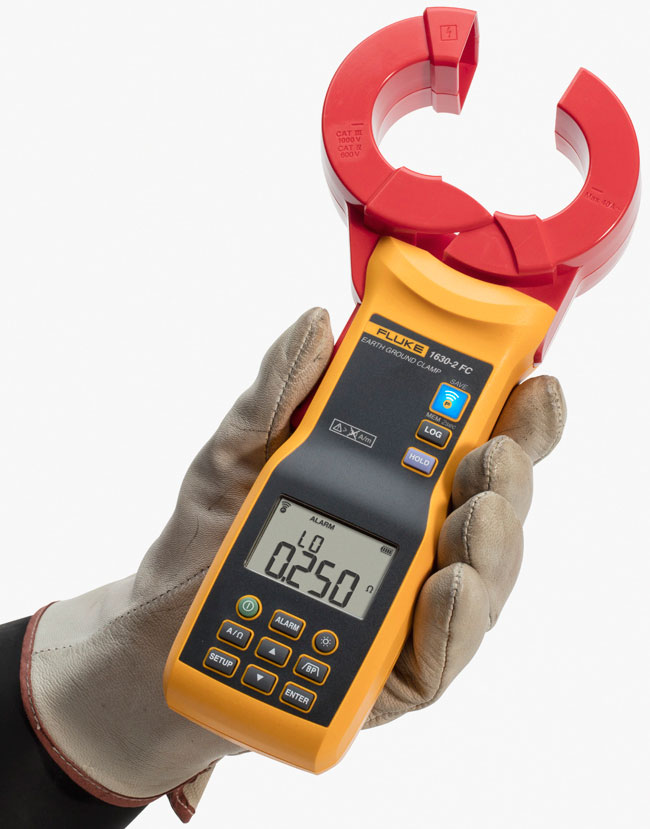

Fluke 1630-2 FC-B Ground Clamp Meters

Name: Fluke 1630-2 FC-B Ground Clamp Meters
Brand: Fluke
SKU: Fluke1630-2 FC-B
Price: 1799.99 USD
Availability: InStock

0 reviews | Catalog: 4829532-B | UPC: 095969831185 | Model: Fluke 1630-2 FC-B

Images (7)

Compare

EARTH GROUND LOOP AND LEAKAGE CLAMP - ?This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit

This open box item may be missing original packaging, missing some small accessories or a lightly used demo unit
Earth ground ac leakage current measurement - Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting
Rugged - Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments
Logging measurements - The earth ground clamp saves time by automatically recording data at pre-set intervals and saves up to 32,760 measurements in memory at the set logging interval. Saves time by recording and storing measured values
Alarm threshold - User-defined high/low alarm limits, for rapid measurement evaluation
Band-pass filter - Selectable band-pass filter function removes unwanted noise from the ac leakage current measurement

View Product Details

List Price: $1,799.99

In Stock:

View Payment Options

Recommended for you

Fluke 1630-2 FC Earth Ground Loop and Leakage Clamp

Stakeless earth ground loop and ac leakage current clamp for fast, safe indoor/outdoor earth ground resistance tests
Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes
Stay on line—identify ground loop resistance without the need to disconnect then reconnect the earth electrode from the system

Stakeless Earth Ground Clamp

The Fluke 1630-2 FC Stakeless Earth Ground Clamp is the kind of high-quality, rugged tool you expect from Fluke. Heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments.

Stakeless measurement

The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don’t have access to soil to place auxiliary test stakes.

Fluke Connect® Wireless System

The 1630-2 FC supports the Fluke Connect Wireless System (may not be available in all regions). Fluke Connect wirelessly connects the clamp with an app on your smartphone or tablet. The app shows the ground resistance measurements on your smartphone or tablet display. You can save these measurements, GPS location from your phone and images to Fluke Connect Cloud storage and share with your team.

LEARN MORE ABOUT FLUKE CONNECT

Electrical Specifications

Maximum voltage to earth ground:

1000 V

Battery type:

AA alkaline IEC/EN LR6 (x4)

Battery life:

More than 15 hours*

Frequency range:

40 Hz to 1 kHz

Ingress protection:

IEC/EN 60529: IP30 with jaw closed

LCD:

Digital reading: 9999 counts
Refresh rate: 4 per second

Operating temperature:

-10 °C to + 50 °C

Storage temperature:

-20 °C to + 60 °C

Operating humidity:

Non condensing (<10 °C) (< 50 °F)
≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F])
≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F])
≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F])
(Non condensing)

Operating altitude:

2000 m (6561 feet)

Storage altitude:

12 000 m (39,370 feet)

Reference temperature:

23 °C ±5 °C (73 °F ±9 °F)

Temperature coefficient:

0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F])

Overload indication:

Data logging capacity:

Minimum of 32,760 measurements

Data logging interval:

1 second to 59 minutes and 59 seconds

Display reading specification with standard loop resistance

Input (Ω)	Minimum	Maximum
0.474	0.417	0.531
0.5	0.443	0.558
10	9.55	10.45
100	96	104

Safety

General:

IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1

Measurement:

IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V

Current clamp for leakage current measurements:

IEC/EN 61557-13: Class 2, ≤30 A/m

Resistance to earth:

IEC/EN 61557-5

Effectiveness of thepProtective measures:

IEC/EN 61557-16

Electromagnetic compatibility (EMC)

International: IEC/EN 61326-1: Portable Electromagnetic Environment
CISPR 11: Group 1, Class B, IEC/EN 61326-2-2

Korea (KCC): Class A equipment (Industrial Broadcast & Communications Equipment)
USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103

Wireless Radio

Frequency range:

2412 MHz to 2462 MHz

Output power:

<10 mW

Radio frequency certification:

FCC ID:T68-FBLE IC:6627A-FBLE

General Specifications

Conductor size:

40 mm (1.57 in) approximately

Dimensions (L x W x H):

283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in)

Weight:

880g (31 oz)

Warranty:

One year

Earth Ground Loop Resistance

Range	Accuracy¹ ± (% of reading + Ω)
0.025 Ω to 0.249 Ω:	1.5% + 0.02 Ω
0.250 Ω to 0.999 Ω:	1.5% + 0.05 Ω
1.000 Ω to 9.999 Ω:	1.5% + 0.10 Ω
10.00 Ω to 49.99 Ω:	1.5% + 0.30 Ω
50.00 Ω to 99.99 Ω:	1.5% + 0.50 Ω
100.0 Ω to 199.9 Ω:	3.0% + 1.0 Ω
200.0 Ω to 399.9 Ω:	5.0% + 5.0 Ω
400 Ω to 599 Ω:	10.0% + 10 Ω
600 Ω to 1500 Ω:	20.00%

¹ Loop resistance with no inductance, conductor centered and perpendicular to jaw

Range	Resolution	Accuracy¹ ± (% of reading + mA)
0.200 mA to 3.999 mA	1 μA	2.0% + 0.05 mA
4.00 mA to 39.99 mA	10 μA	2.0% + 0.03 mA
40.0 mA to 399.9 mA	100 μA	2.0% + 0.3 mA
0.400 A to 3.999 A	1 mA	2.0% + 3 mA
4.00 A to 39.99 A	10 mA	2.0% + 30 mA

¹ Applies to signal frequency
• 40 Hz to 1 kHz with filter set to OFF
• 40 Hz to 70 Hz with filter se to ON

* In Ground Resistance measurement mode, with backlight turned off, and RF mode turned off

Tech Specs

Ground Testers/Ground Clamp Meters Template
Maximum Ground Resistance	1500 Ohms (1.5 K Ohms)
Minimum Ground Resistance	0.025 Ohms
Resistance Measurement Frequency	1 kHz (1000 Hz)
Maximum Current Range	39.99 A
Display Hold	Yes
Jaw Capacity Conductor Size	1.57 IN
CAT Rating	III
CAT Voltage	1,000 V
Alarms	Yes
General Attributes
Warranty	1 YEARS
Product Weight	1.94 LBS
Shipping Weight	6.09 LBS
UPC	095969831185
Product Height	1.9 IN
Product Length	11.1 IN
Product Width	4.1 IN
Shipping Height	5.31 IN
Shipping Length	13.5 IN
Shipping Width	9.53 IN
Country of Origin	China
Test Equipment General Attributes
Unique Features	OPEN BOX ITEM Fluke Connect wirelessly connects the clamp with an app on your smartphone or tablet. The app shows the ground resistance measurements on your smartphone or tablet display. You can save these measurements, GPS location from your phone and images to Fluke Connect Cloud storage and share with your team
Safety Approval	CE
Data Logging	Yes
HTS/Schedule B Number	9030.39.0100
ECCN Number	EAR99
Calibration Included	None
Battery Type	AA
Power Supply Voltage	Battery Powered
