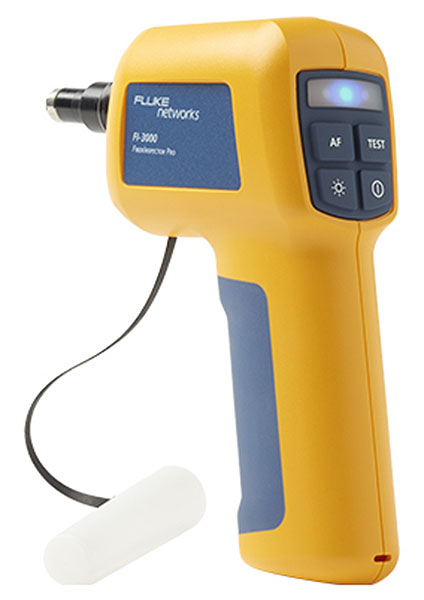

The FI-3000 FiberInspector Pro is the industry’s most efficient MPO inspection solution. Start with an instant view of the entire fiber endface using the Live View feature. Then use the simple gesture-based interface to zoom in on each fiber or perform an automated PASS/FAIL analysis in seconds. Its ergonomic design makes it comfortable even when inspecting hundreds of bulkheads and cables. Choose from two user interface and reporting methods. First, the iOS/Android app allows you to inspect your MPO installation using your phone and easily share their inspection results via text or even social media. Second, pair the FiberInspector with Versiv Cabling Certification System using its user interface and industry-leading LinkWare reporting system. With Versiv and LinkWare you can test copper, fiber loss, OTDR and inspection and combine the results into one complete report.
Eliminate the #1 cause of fiber failure
Endface contamination the leading cause of fiber failures. Dirt and debris cause insertion loss and back-reflection that inhibit optical transmission and cause havoc with transceivers. Fiber loss and OTDR testing can expose this problem, but in many cases, dirty connections make testing fiber time consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one end-face to another upon mating, both sides of any connection must always be cleaned and inspected. Further, mating contaminated connectors can cause permanent damage as microscopic debris is crushed between end-faces in physical contact. Even factory terminated patch cords or pigtails must be inspected as protective caps do not keep end-faces clean. Avoiding this common cause of failure, starts with inspecting the end-face and eliminating any contamination before insertion into a bulkhead or piece of equipment. Inspection is critical for MPO based fiber installations as dirt and other debris can be easily moved from one fiber end face to another.
Grab the Most Efficient MPO Inspection Solution
The FI-3000 FiberInspector Pro offers an extensive feature set that makes testing MPO trunks easy and efficient. The multiple camera design with autofocus provides a Live View of the entire endface on your smart phone or Versiv instantly - then use simple touchscreen gestures to look at individual endfaces in real time. Touch "Test", and in seconds, you’ll get an automated PASS/FAIL result compliant with IEC 61300-3-35. Store results on your phone and share them through text messages or email or use the industry-leading LinkWare platform to store complete project reports including copper, fiber loss, OTDR and endface images*. Compact, ergonomic design with autofocus makes it comfortable and fast even when you’re testing hundreds of cable or ports.
- Total endface visibility with Live View from full trunk to individual endface
- Integrates with Versiv / LinkWare for simple operation and documentation or with mobile phones for testing and sharing*
- Automated PASS/FAIL results in less than two seconds per fiber
- Multiple Autofocus/Autocentering Camera design for real time imaging
- Rugged, ergonomic design
- Supports one or two rows of 8,12, or 16 UPC or APC connectors as well as single fibers*
*Versiv, LinkWare, and single fiber support available second half 2019
Live View with AutoFocus and AutoCentering For Instant Real Time Visibility
Plug the connector into the FI-3000, touch the autofocus button, and the Live View feature delivers a live view of the fiber endface immediately - with no setup or processing time. Dual cameras provide a single, integrated view of the entire endface. Use simple gestures to zoom into the portion of interest, pan across the connector or just tap the image of a specific fiber for a detailed view.
