The tips on the DSX-PLA004 and DSX-PLA804 Permanent Link adapters used by the DSX CableAnalyzer are field replaceable. If the tips are worn and exhibit persistent open pins on wiremap during testing, replacing the tips is a much less expensive option than replacing the entire DSX-PLA004S or DSX-PLA804S (Permanent Link Adapter Set).

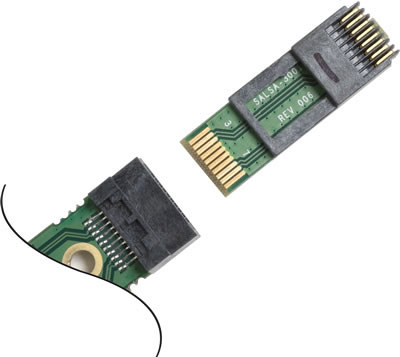

For the DSX-PLA804 adapters, use the tips in the DSX-PLA804SPRP kit.
Replace worn tips on DSX-PLA804 Permanent Link Adapters
To replace the tip, use a smaller philips screwdriver to remove the metal housing. The conductive washer is designed to stay on the screw, but please take a little care when removing the housings:
With the metal housing removed, pull off the tip, replace it with the new one.
Important:

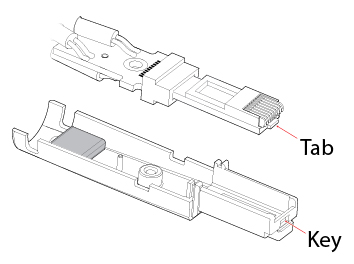

It is very important that the end tab of the upper housing is not on top of the contact block of the tip and fits inside the space provided for the tab. If the tab is bent by screwing the upper case onto the lower case, it cannot be bent back and if bent, it will likely break off and new case parts must be obtained.
After lowering the upper housing onto the lower housing, the screw is tightened slightly to hold the assembly together.
