Fluke Networks DSX-CHA-M12-X-S - DSX M12X Female Channel Adapter Set of 2

Name: Fluke Networks DSX-CHA-M12-X-S - DSX M12X Female Channel Adapter Set of 2
Brand: Fluke Networks
SKU: Fluke DSX-CHA-M12-X-S
Price: 865.48 USD
Availability: InStock

0 reviews | Catalog: 4963838 | UPC: 754082146278 | Model: Fluke Networks DSX-CHA-M12-X-S

Compare

DSX-CHA-M12-X-S, DSX M12-X CHANNEL SET

DSX M12X female channel adapter, set of 2
Reduce failures by validating cables with M12X connectors from End to End
Avoid wasting time installing bypass cables. Pass/Fail indication in 10 seconds with full measurement details
Validate at the Machine Builder and again when commissioning the machine at the Plant, and after making changes
Works with hybrid cables that have an RJ45 or M12D on one end and M12X on the other
Supports EtherNet/IP, Profnet, ModBus TCP and other protocols

View Product Details

List Price: $985.99

Your Price: $865.48

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Fluke Networks DSX-CHA-M12-X-S - DSX M12X Female Channel Adapter

DSX-CHA-M12-X-S, Industrial Ethernet M12X (8 position) Adapter Set for DSX CableAnalyzers.

Cable problems are 50% of industrial ethernet problems. The M12X adapter set (two adapters) is used with the DSX-5000 CableAnalyzer to allow industrial companies and machine builders to validate cables with M12X connector(s) to ensure they comply with international standards thereby reducing machine start-up time, and production down time.

Set the Reference

Before you use the M12 adapters to test and certify links, set the reference. Repeat the reference procedure every thirty days at minimum.

Turn on the tester and the remote a minimum of 1 minute before you set the reference.

Note: Set the reference only after the testers are at an ambient temperature between 50 °F and 104 °F (10 °C and 40 °C).

Connect the main and remote testers together as shown at the top or bottom of Figure 1.
On the home screen, tap TOOLS, then tap Set Reference.
On the SET REFERENCE screen tap TEST.

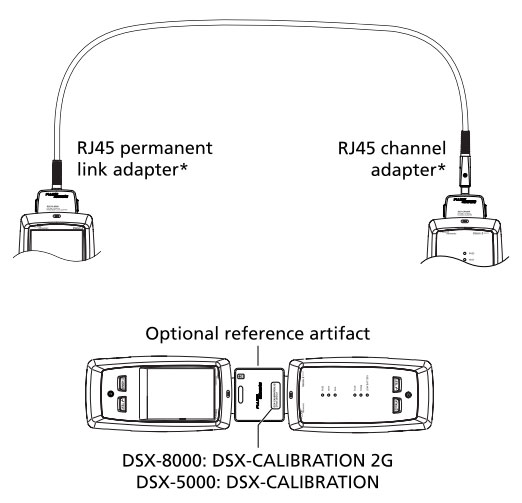

Figure 1. Reference Connections

Test Equipment General Attributes
Product Height	5.50 IN
Product Length	10.50 IN
Product Width	6.75 IN
Shipping Weight	0.26 LBS
Country of Origin	Malaysia
Shipping Height	5.50 IN
UPC	754082146278
Shipping Length	10.50 IN
Shipping Width	6.75 IN
