Fieldpiece AVG2 Digital Vacuum Micron Gauge Accessory Head

Name: Fieldpiece AVG2 Digital Vacuum Micron Gauge Accessory Head
Brand: Fieldpiece
SKU: FieldpieceAVG2
Price: 103.70 USD
Availability: InStock

0 reviews | UPC: 872641001261 | Model: Fieldpiece AVG2

Compare

Vacuum gauge head

Accurate Results in a Compact Design
Vacuum from 50 to 2000 Microns
Displays pressure in steps of 1 micron
Withstands pressures up to 500 psi
Use for direct measurement or data logging

View Product Details

List Price: $122.00

In Stock:

View Payment Options

Recommended for you

Fieldpiece AVG2 Digital Vacuum Micron Gauge Accessory Head

Displays pressure in microns in steps of 1 micron
Range: 50 to 2000 microns of mercury (50 - 4000 if meter has millivolt range)
Resolution: 1 micron of mercury
Auto-off can be disabled for data logging
"T" for in line vacuum testing
Fitting: 1/4" flared brass fitting (male)
Accuracy (@~75ºF): ±10%, 0-1000 microns of mercury

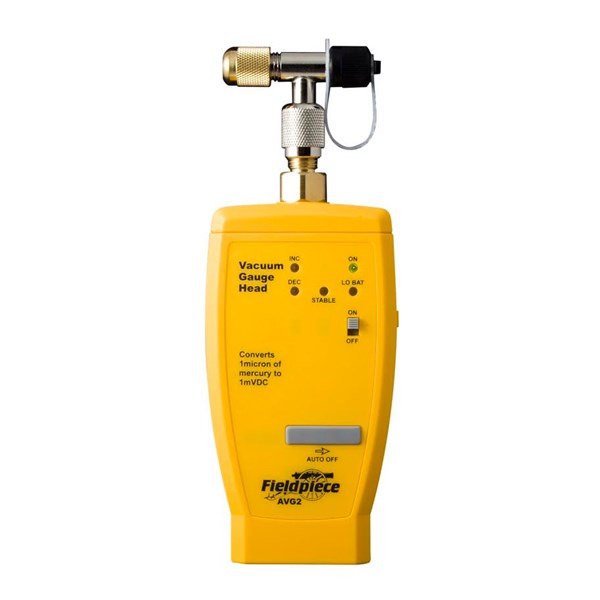

The Fieldpiece AVG2 Digital Vacuum Gauge Accessory is a thermistor based digital multimeter accessory that digitally measures a vacuum of 50 to 2000 microns and converts that reading into millivolts DC on your compatible DMM or our electronic handle and data logger. LEDs provide a pump down indicator showing progress from atmospheric pressure. The sensor has been designed to withstand pressures up to 500 psi (3400kPa) so that no damage to the AVG2 will occur if it is exposed to full system pressures.

Designed for HVAC/R, the Digital Vacuum Gauge Accessory, model AVG2, gives technicians an accurate results in a compact design.

Sensor	Precision thermistor.
Fitting	Standard 1/4” flared brass fitting (male). “T” fitting included.
Conversion rate	1 mVDC/1 micron of mercury.
Range	50 to 2000 microns of mercury.
Resolution	1 micron of mercury.
Accuracy	+/-10%, (0 to 1000 microns) @73ºF +/-9ºF, <90%RH.
Operating environment	32ºF to 122ºF at <75%RH.
Storage environment	-4 to 140°F (-20 to 60°C) @ <80%RH with battery removed
Pump down indication	When pumping down from atmospheric pressure to 2000 microns, output of head goes from over 3VDC to 2VDC.
Overload	500 psi.
Battery	9V (included).
Battery life	35 to 40 hours typical (alkaline).
Auto-off	Can be disabled for data logging. Automatically turns off after 5 minutes at pressures above 70,000 microns.

Tech Specs

Test Equipment General Attributes
Warranty	1 YEARS
Product Height	13.25 IN
Product Length	2.00 IN
Product Width	6.25 IN
Country of Origin	Taiwan
Shipping Height	13.25 IN
Shipping Length	2.00 IN
Shipping Width	6.25 IN

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

Fieldpiece accessory heads can be connected to any of the following items: •HS26 stick meter •HS33 stick meter •HS35 stick meter •HS36 stick meter •EH4W wireless electronic handle •EHDL1 electronic handle •EHDL1 electronic handle •HG3 HVAC Guide System Analyzer •Any Fieldpiece multimeter that reads DC millivolts

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous

Answers (1) - Asked by Anonymous

I have this question too (0)

There are 15 different accessory heads - links to each item can be found below: •AAT3- Hot wire anemometer and psychrometer •AAV3- Air velocity and temperature accessory head •ACH4- 400A amp clamp accessory head •ACM4- Carbon monoxide detector accessory •ADMN2- Dual port manometer accessory head •AMN2- Manometer accessory head •AOX2- Oxygen and carbon dioxide accessory head •ARH4- Digital psychrometer accessory head •ARH5- Psychrometer accessory head •ASX14- Superheat and subcooling accessory head •ATH4- Dual temperature accessory head •ATIR3- Infrared temperature accessory head •AUA2- Milliamps and microamps accessory head •AVG2- Digital Vacuum micron gauge accessory head •AVH1- Voltage accessory head

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
