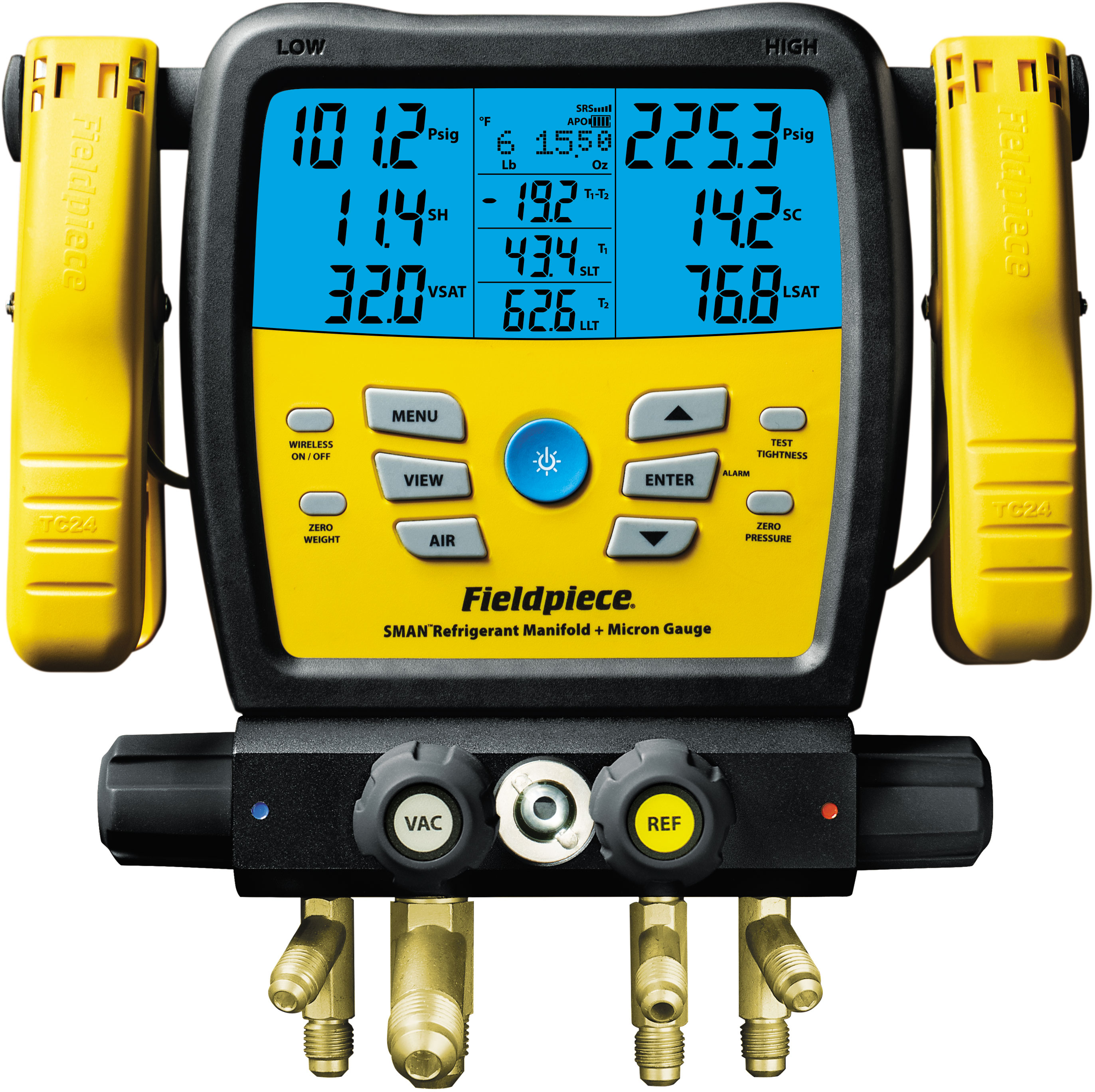

The Fieldpiece SM480V is a four port digital manifold with micron gauge. The SM480V is the direct replacement for the SMAN400 series (SMAN440 and SMAN460) and does not require the JL2 transmitter for wireless connections.

Designed for Performance

Knowledge, power and experience are packed into the newly designed SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market.

From the extremely rugged overmolded casing, reinforced hook, and hermetically sealed sight glass, to the wireless capabilities, data logging, and tightness test, the SM480V is built so you can do your job easier, faster and better.

Simply Strong

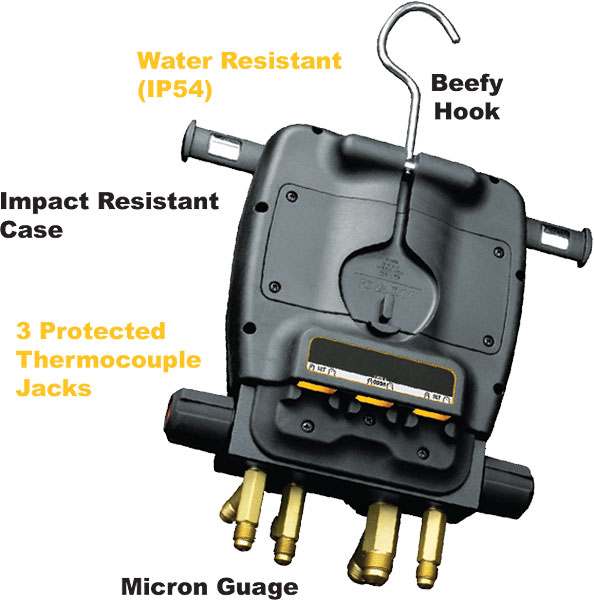

The new SM480V is simply strong. The heavy duty casing, reinforced hook, water resistance, impact resistant screen, strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigors of field use.

Packed with Knowledge

The SM480V is designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need.

Data Logging Stores up to 9 jobs internally Easy download via USB port Displays % free storage space before logging begins Logs up to 7 days (168 continuous hours) Tightness Test Check for leaks after repairs or installations View pressure differential over time Timer tracks duration of test Temperature compensated with SL temp to avoid false positives

Customizable

• Adjust auto power off duration
• Adjust back light duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

Receives Wireless Measurements

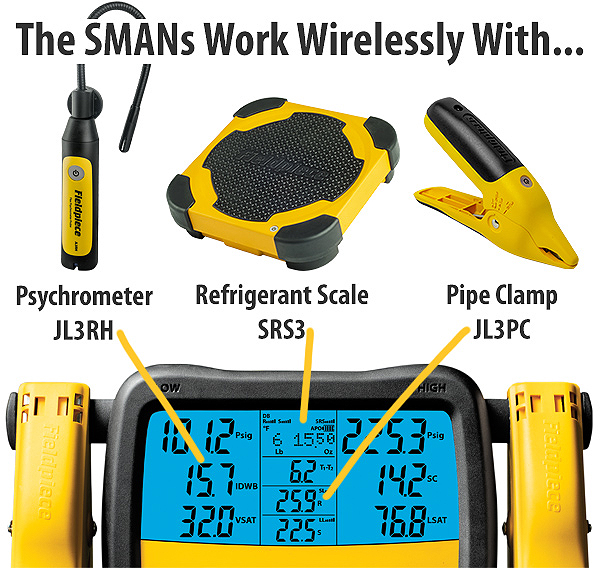

The SM480V is also compatible with several wireless tools from Fieldpiece, including the JL3RH psychrometer, JL3PC pipe clamp and SRS3 refrigerant scale. Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments. Please note - the JL3RH, SRS3 and JL3PC are sold separately.


Increase Professionalism with Job Link System App

Streamline and simplify your call even further with the Job Link System App. See your measurements up to 350' away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.

• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 350' wireless range (no transmitter needed)
