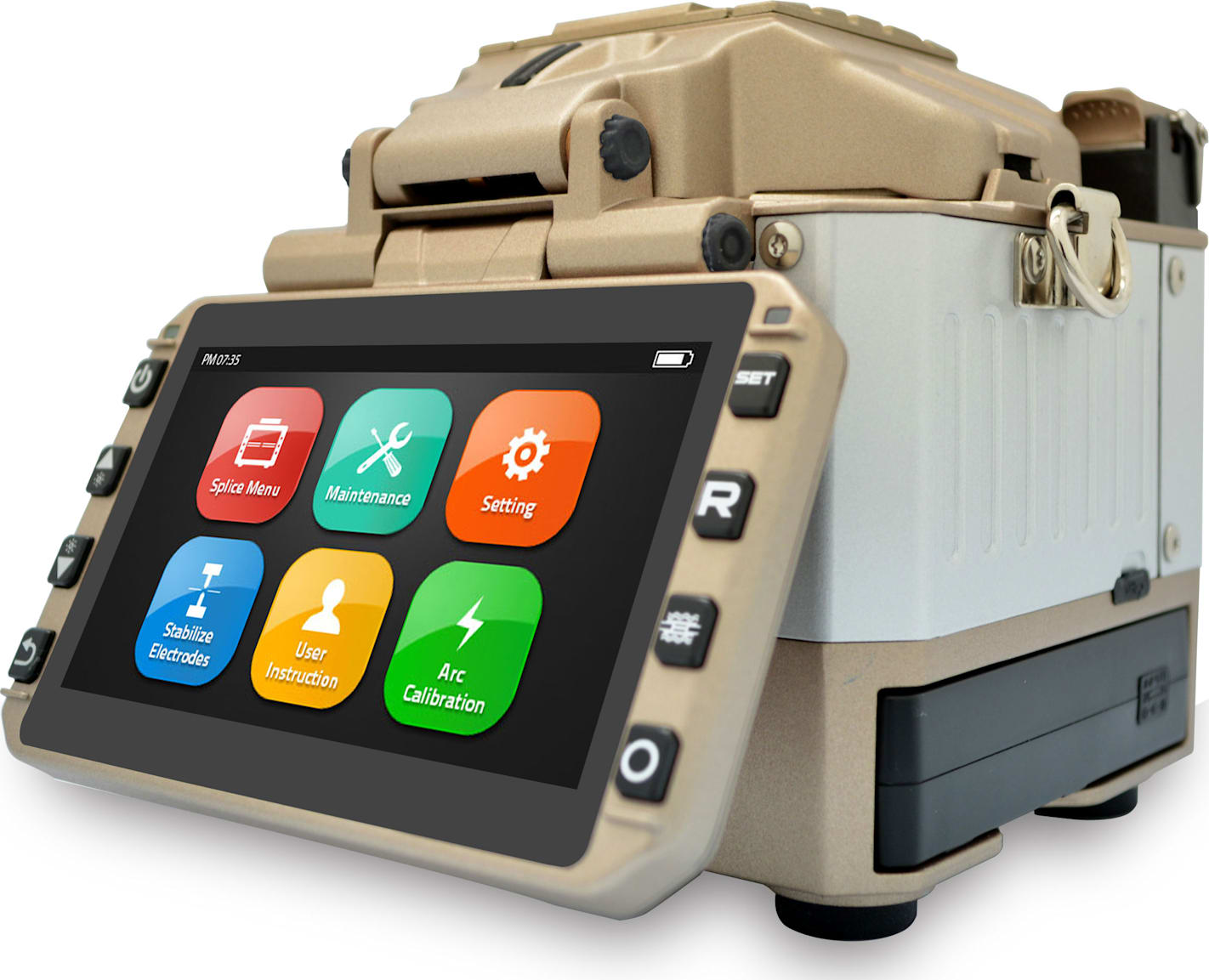

Splicing Method |
Core Alignment DWACAS(Digital Wavelength Automatic Core Alignment System) |
Average Loss |
SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB) |
Return Loss |
>>60dB |
Splice Time |
12s average SM / SM 7s Quick mode |
Electrodve Lifespan |
>3,500 arcs |
Applicable Fiber |
SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655),
IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable) |
Cleaved Length |
Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum |
Coating Diameter |
100-1,000um |
Cladding Diameter |
80-150um |
Heating Programs |
Factory installed mode : 37, User installable mode : 110 |
Heating Time |
16s |
Protection Sleeve |
40mm, 60mm, SOC Connector |
Data Output |
Micro HDMI-USB master device |
Splice Programs |
Factory installed mode: 33, User installable mode: 70+ |
Splice Memory |
Up to 2,000 records and 2,000 splice images |
Battery Typical |
200 Cycles (Splice & Heat) / single battery <2 Batteries Standard> |
Power Supply |
AC 100-240V input or DC 9~14V |
Monitor |
Color 4.3’’ LCD monitor, with Touch Screen (Tempered Glass) |
Cameras |
2 CCD camera system |
magnification |
XY style : 150 power, X/Y : 300 power |
Fiber Display |
X/Y or XY, single X.Y |
Weight |
3.09 lbs (without battery) |
Size |
4.8 x 4.88 x 5.4 (in) |
Wind Protection |
The max wind speed 15m/s |
Operating Environment |
Elevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity |
Storage Condition |
Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚F |
Pull Test |
1.96~2.25N (standard) |
