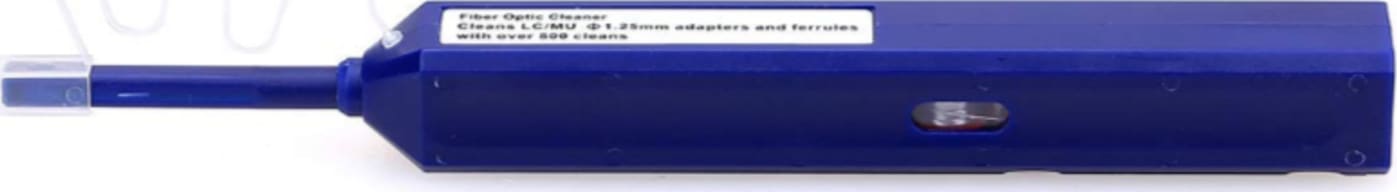

Fiberfox CP-125 Fiber Optic End Face Cleaning Pen

Name: Fiberfox CP-125 Fiber Optic End Face Cleaning Pen
Brand: Fiberfox
SKU: FiberfoxCP-125
Price: 50.00 USD
Availability: InStock

0 reviews | Model: Fiberfox CP-125

Compare

Fiber Optic End Face Cleaning Pen for cleaning LC/MU Connectors

Fiber Optic End Face Cleaning Pen for LC/MU Connectors
FiberFox Cleaning Pen removes dust and oil adhering to the ferrule end face of fiber optic connector with one push mechanical action.
Made of superfine fiber for higher cleaning effect.
Over 750+ engagements per unit.
The Cleaning Pens are dry cloth cleaners specially designed to clean single fiber connectors residing in an adapter, faceplate or bulkhead.
The dust cap of the cleaner acts as an adapter for cleaning unmated connectors.
Easy one push motion engages connector and initiates cleaner
Made from antistatic resins
Cleaning micro fibers are densely stranded and debris free
Extendable tip reaches recessed connectors

View Product Details

Your Price: $50.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Fiberfox CP-125
Fiber Optic End Face Cleaning Pen

Fiber Optic End Face Cleaning Pen for LC/MU Connectors
FiberFox Cleaning Pen removes dust and oil adhering to the ferrule end face of fiber optic connector with one push mechanical action.
Made of superfine fiber for higher cleaning effect.
Over 750+ engagements per unit.
The Cleaning Pens are dry cloth cleaners specially designed to clean single fiber connectors residing in an adapter, faceplate or bulkhead.

The Fiber End-Face Cleaning Penor 1.25mm LC/MU Connectors is a high-performance device designed for cleaning the ferrule of LC/MU connectors.It has many distinct special features than other normal fiber optic cleaning products.

1.Easy pushing motion engages connector and initiates cleaner
2.Disposable with 800+ cleanings per unit
3.Made from anti static resin
4.Cleaning micro fibers are densely stranded and debris free
5.Extendable tip reaches recessed connectors
6.Cleaning system rotates 180 for a full sweep
7.Audible click when engaged

Applications

Connect Inside Adaptor
Step 1: Remove guide cap from the device
Step 2: Insert tip of cleaner into LC/MU Adaptor
Step 3: Push the outer shell to start cleaning the LC/MU connector end face. A ‘click’ like sound indicates end of cleaning process. Close the cover after use.

Connect Plugs Alone
Step 1: Open the cover on the guide cap
Step 2: Insert LC/MU connector into the guide cap
Step 3: Push the outer shell to start cleaning the LC/MU connector end face. A ‘click’ like sound indicates end of cleaning process. Close the cover after use.
