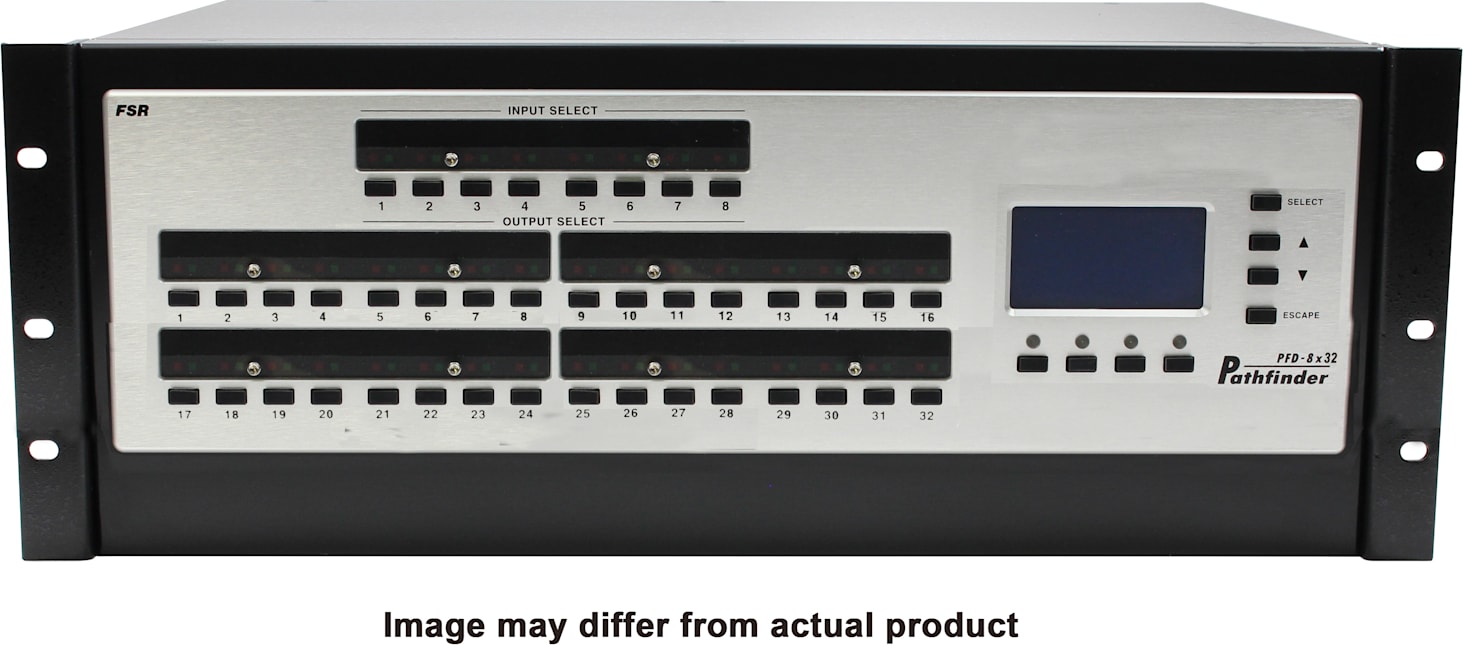

The pathfinder matrix switcher 8x32 RGB and stereo audio matrix is a ground-up development aimed at bringing new capabilities and a new level of performance to matrix switching. In order for a display to accurately reproduce the original image, every component in the video system must have enough bandwidth to carry the signal and be as flat as possible in order to maintain clarity and color fidelity. The Pathfinders set a new standard in both areas.
Excellent Bandwidth and Frequency Response
The HD Component and RGB models feature greater than 600MHz@-3dB bandwidth with +/- 1.0 dB flatness to 300MHz making the Pathfinders the highest bandwidth and flattest matrix switchers on the market. For Composite and S-Video users, the Pathfinders offer 200MHz@-3dB bandwidth with +/- 0.5dB flatness to 150MHz. FSR's optional cable length equalization feature allows the user to adjust for signal loss on both the input and output sides of the Pathfinder taking the worry out of longer cable run applications. The settings are easily programmed from the unit's front panel or via RS-232 commands.
Future Proof
The newest feature to be added to the Pathfinders is Split Mode Switching. This allows each color channel to be switched independently. Take an 8x8 RGBHV matrix as an example. Inputs 1-4 could be assigned to be RGB while the Red channel on inputs 5-8 can be composite while the Green and Blue channels on inputs 5-8 are S-Video. This allows one physical matrix switcher to perform the duties of several units saving money by ensuring that the switching capabilities are present as video types and resolutions are upgraded in the future.
Size Matters
The Pathfinders are available in sizes ranging from 8x4 to 32x32 (see ordering tables.) Chassis sizes are optimized based on matrix sizes and video types to save as much space as possible in the rack.
Stereo Audio
Pathfinders are available for composite, S-Video, HD components, and RGBHV. The stereo audio option provides balanced and unbalanced stereo audio switching with independent input trim control and output volume control. Independent input gain switches allow unity or +14 dB gain settings for each input to maintain optimal S/N ratio.
The Outside World
The Pathfinder command set is an easy-to-follow, easy-to-implement ASCII command set that gives control systems complete access to all functions. Each unit is equipped with an RS-232 serial port along with an IP port for today's remote communications and tomorrow's.
