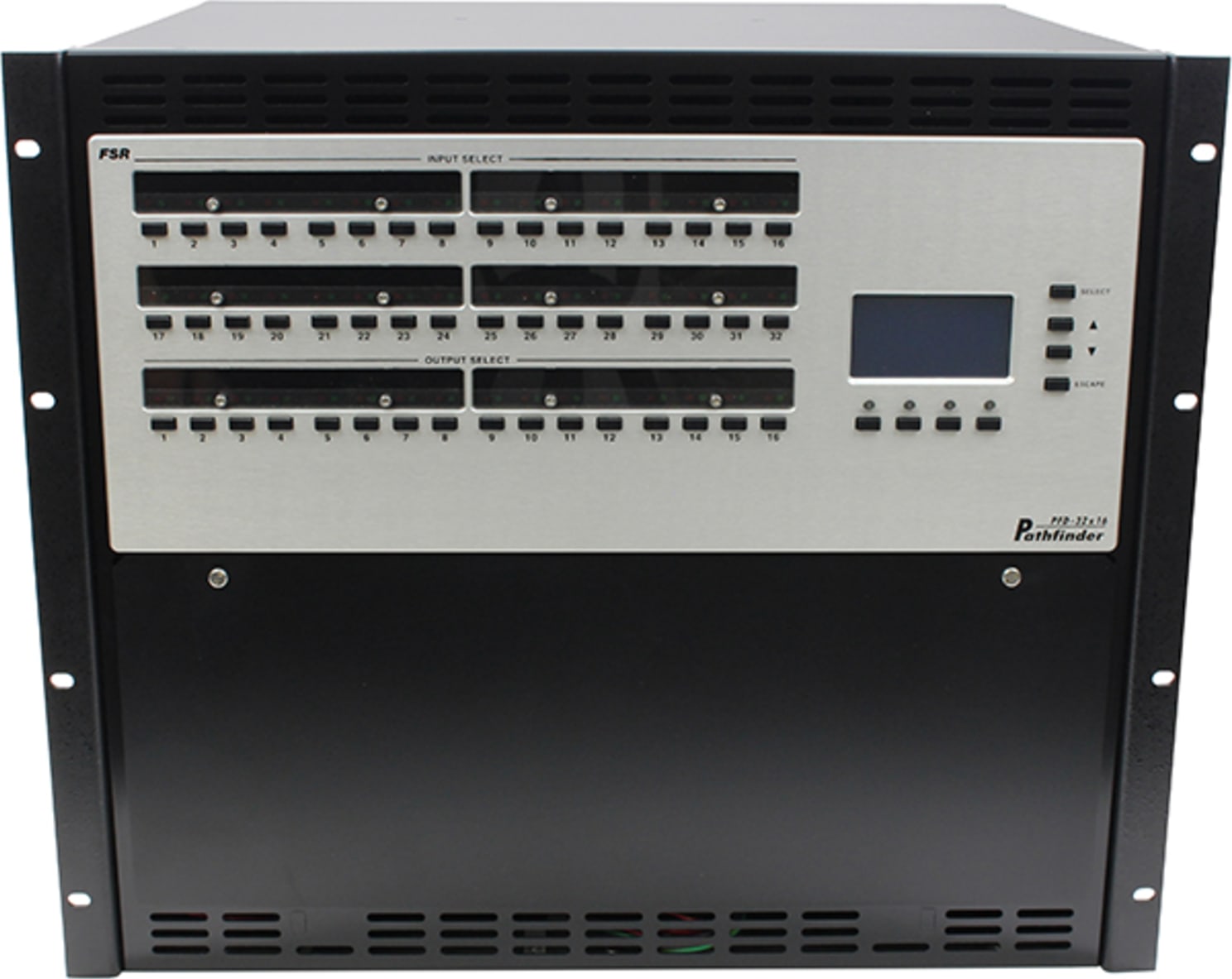

A 32x16 PathFinder RGB matrix switcher

The FSR PFD-32x16-RGB is a PathFinder 32x16 RGB matrix switcher that features >625MHz @ -3dB+/- <1dB. The PathFinder Matrix Switcher family is a ground-up development aimed at bringing new capabilities and a new level of performance to matrix switching.

In order for a display to accurately reproduce the original image, every component in the video system must have enough bandwidth to carry the signal and be as flat as possible in order to maintain the clarity and color fidelity. The PathFinders set a new standard in both areas.

Delivers high bandwidth and flat frequency response

At the heart of the PathFinder is a design that delivers high bandwidth and flat frequency response to insure that the original image is switched and distributed without being altered. Proper signal reproduction is much more than bandwidth. Frequency response plays a vital role in the clarity and accuracy of an image.

Can be easily controlled via front panel buttons or RS-232 input

The Pathfinders can be easily controlled via front panel buttons or RS-232 input from a control system or PC. The command set is an easy to follow, easy to implement ASCII command set that gives control systems complete access to all functions. The PFD-32x16-RGB has an RS-232 input and output port to allow daisy chaining of additional serial controlled devices.

The PathFinders are also available in sizes ranging from 4x2 to 32x32 enabling you to support any size application in a variety of formats. It includes a 3-year warranty.

Applications:

• Video room combining
• K-12 and higher education
• Houses of worship
• Control rooms
• Planning, deployment and monitoring centers
• Courtrooms
• City government center
