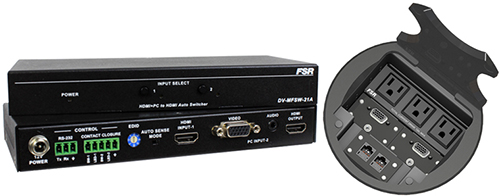

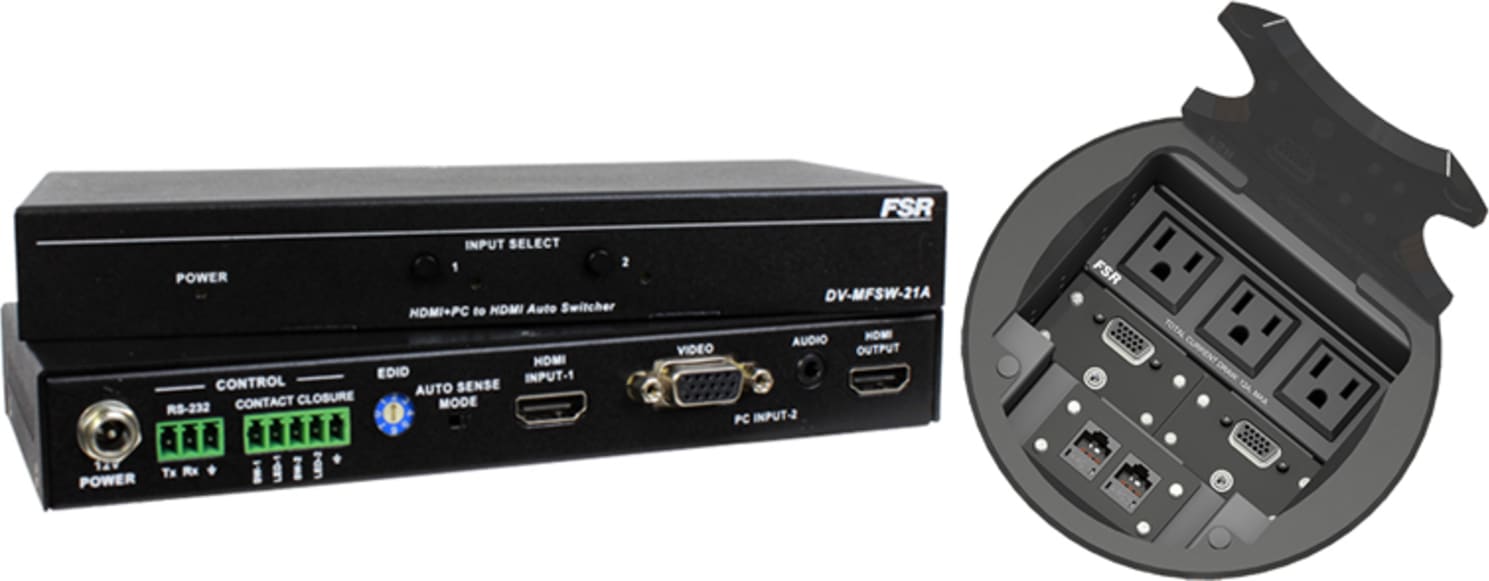

T6-2B Button control with HDMI switcher (DV-MFSW-21A)
The FSR HV-MFSW21A-T6-2B package includes T6-2B button control with DV-MFSW-21A HDMI switch. The T6 table box cavities are 100% configurable for all your high and low voltage needs. It provides low voltage connectivity options which include retractors, gravity feed cable pulls, and our IPS and Simple Solutions pass-thru type connectors. It features an elegant addition to your conference table including a multi-tiered, plate-stacking arrangement and overall depth adjustment; the cover can be closed while in use with cables exiting through the milled openings, your choice of AC power cords or hardwired versions, round or square covers, and finishes include black anodized, clear anodized aluminum or brushed brass. Covers with brush seals to protect against dust and debris are available.
Mounting is a snap. Whether you select a round or square cover, the mounting is always a 6” diameter round hole. The T6 can be also ordered in a variety of configurations.
HDMI plus VGA and audio to HDMI switcher
The FSR HV-MFSW21A-T6-2B also includes an HDMI + VGA & Audio to HDMI switcher (DV-MFSW-21A). This switcher has 1 HDMI input supporting resolutions up to 4k x 2k @30Hz and 1 VGA (HD-15) input supporting resolutions up to 1920 x 1200 @ 60Hz. The DV-MFSW-21A has a locking 12v power supply and can be controlled via front panel push-buttons, contact closure, or RS-232 via Phoenix 3-pin, or Auto-Sensing. It provides LED Feedback for contact closures and will work with HuddleVU T3 Dual Table Boxes for a compact VGA & HDMI HuddleVU System.
HDMI Switch applications:
- Hotel lobbies
- Classrooms
- Boardrooms
- Command and control centers
- PoP / PoS kiosks
- Digital signage
- Collaboration systems such as HuddleVU
