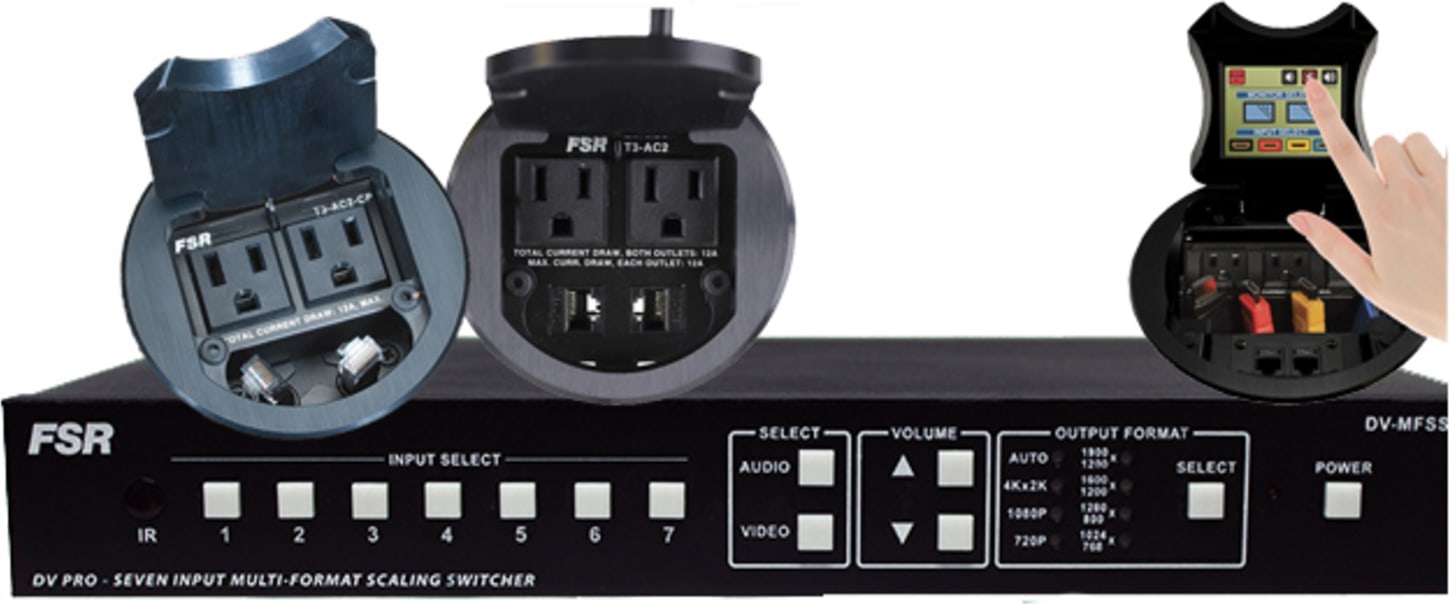

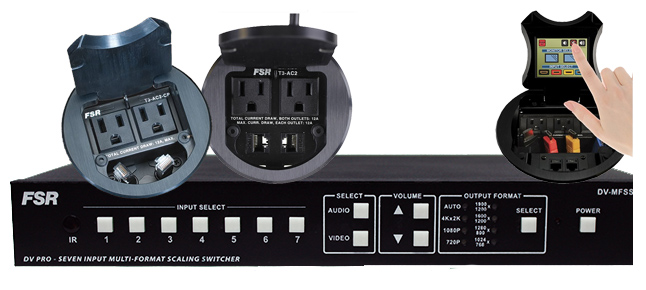

The FSR HV-MFSS71-T6BTN-OP2T3 is a HV-T6 Table control unit with optional (2) HV-T3 table box and the DV-MFSS-71 scaling switcher. The HV-T6 table box allows 1 to 4 users to plug in and power their laptops or other input devices and simply push a button to display their desktop information on the main display. Any user can switch to their own laptops, tablets, and smartphones at any time simply by pushing their own button on the T6 housing. Color coded HDMI cables, which are included with the system, match corresponding integrated button on the HV-T6 Table Control unit.

The HV-T3 table box contains a pullout HDMI cable and an AC outlet. A single push of a button on each T3 is all that is needed to display the laptop or iPad's desktop information onto the main display.

DV PRO - Seven input multi-format scaling switcher

The DV-MFSS-71 is our new 7 x 1 scaling switcher. It has 7 multi-format inputs (4 HDMI, 1 DisplayPort, and 1 DVI-I, and 1 VGA/RGB/YPbPr) and one HDMI out that supports scaled resolutions up to 4k x 2k 30hz. Each input also has audio inputs available via captive screw terminals and has a stereo output as well. The 1 rack unit high scaling switcher can be controlled from the front panel, via RS-232, or IP via the integrated GUI Control.

The DV-MFSS-71 Seven Input Multi-Format Scaling Switcher also easily integrates with our HuddleVU FLEX Collaboration System.

Applications:

• Video Wall System
• Large LED Sign Board
• Medical Imaging Equipment
• TV Broadcast Station
• Auditorium
• Conference Room
• Church Video System
