| Model: HV-MFSS71-T6-FLX-OP2T3 Specifications |
| Description |

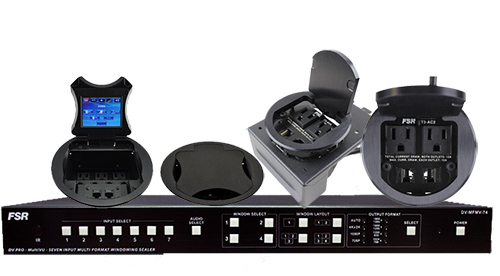

HV-T6 Flex with optional 2 T3-Flex with DV-MFSS-71 |
| T6 Flex |
| Serial Ports (RS-232) |
| Speed |
2400-115,200 bps (Ports 1,2,3) 2400-57,600 bps (Port 4) |
| Pins |
TX, RX and GND |
| Connector type |
Screw terminal |
| IR Ports |
| Connector type |
Screw terminal |
| I/O Ports |
| Output |
Open collector, current limited to 100mA, (24VDC max) |
| Input |
VIH_MIN = 5VDC, VIH_MAX = 24VDC, VIL_MAX = 0.4VDC |
| Connector type |
Screw terminal |
| Ethernet Port |
| Type |
10/100BASE T/X |
| Compliance and supported features |
Compliant with IEEE 802.3/802.3u (100BASE-TX),Compliant with ISO 802-3 / IEEE 802.3 (10BASE-T), Supports Auto-negotiation, Supports Automatic polarity detection and correction, Supports HP Auto MDI/MDI-X (no crossover cables required) ,Protocols TCP/IP, UDP |
| Connector type |
RJ-45 |
| Power |
| Local adapter |
| Voltage |
12VDC |
| Current |
500mA |
| Power supply |
Included |
| Connector type |
Screw terminal |
| DVMFSS-71 |
| Description |
4K 7x1 Multi-format Presentation Switcher |
| Supported Formats |
| HDMI & DisplayPort Inputs |
Supports HDMI 1.4 8/10/12-bit deep color modes Resolutions up to 4K 2160p (3840x2160) @30Hz (300 Mhz) Supports MHL2.0 input resolution up to 1080p HDMI & DisplayPort Inputs DVI operates up to 165MHz (up to UXGA@60Hz) HDMI supports uncompressed Audio Channels (7.1@ 192KHz) HDMI supports Lip Sync Supports embedded stereo audio on Display Port |
| DVI-I Input |
Resolutions up to 2560 x 1600 @ 60Hz DVI-I Input Display Port v1.2a complaint (Supports HBR) 2-channel L-PCM & IEC 61937 compressed audio formats |
| VGA / RGB / YPbPr Input |
Up to 1920 x 1440 @ 60Hz |
| Color Space |
YUV, RGB |
| Standards Conversion |
Converts the input signal to the output EDID (E.G. DVI signal to HDMI, RGB to YCbCr 4:2:2) |
| HDMI Output |
4K 2160p (3840 x 2160) @30Hz, 1920 x 1080 @60Hz, 1280 x 720 @60Hz, 1900 x 1200 @60Hz, 1600 x 1200 @60Hz, 1280 x 800 @60Hz, 1024 x 768 @60Hz, HDMI embedded audio output |
| Audio Output |
Supports Multi-Channel Coaxial Supports stereo analog audio output |
| Connectors |
| Video Input |
4 x HDMI Type A 19-pin, female, 2 x DisplayPort (Full Size) 20-pin, female, 1 x VGA DB-15 15-pin, female |
| Video Output |
1 x HDMI Type A 19-pin, female |
| Audio Input |
7 Program audio inputs via captive screw terminals 1 Mix audio input via captive screw terminals |
| Audio Output |
1 Stereo via captive screw terminals, 1 x Optical |
| RS-232 |
1 x DB-9, female |
| IP Control (LAN) |
1 x RJ-45 |
| USB (Reserved) |
Type A 4-pin, female |
| AC Power |
1 x 12V, Max Current: 1.5A 110~240V AC Adapter |
| Operational |
| Power Input |
110~240V AC |
| Power Consumption |
15W (max.) |
| Physical |
| Dimensions (W x H x D) |
17.3” x 1.7” x 10.7” (440mm x 43.5mm x 272mm) |
| Unit Weight |
7.3 lbs (3.3 kg) |
| T3-Flex |
| Description |
Perfect table boxes for one or two users. |
