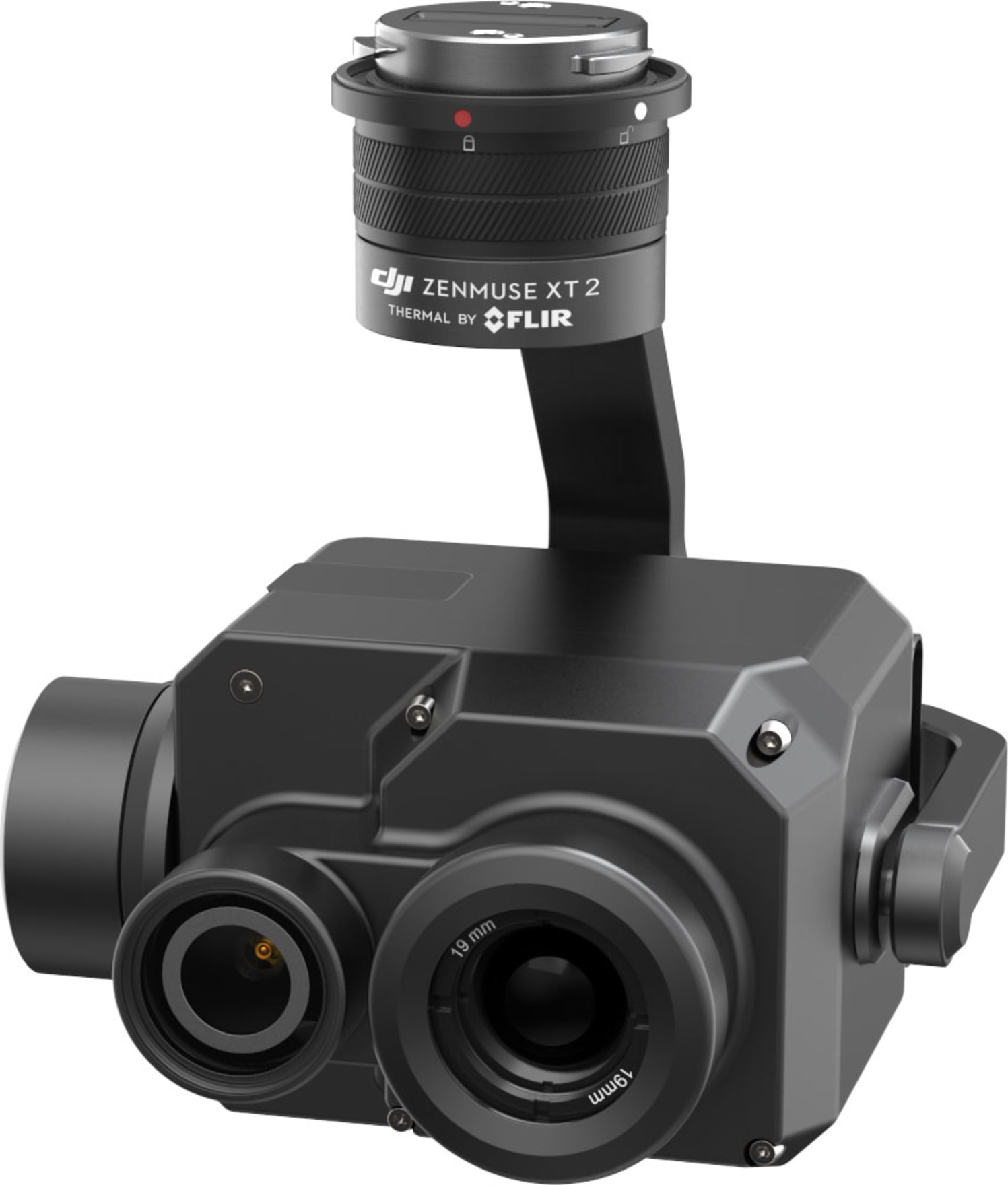

FLIR Zenmuse XT2 - UAS Payload, 640x512 / 25mm / 30Hz (Catalog Number FZXT2A25FR)

• Camera only - drone sold separately
• Catalog number FZXT2A25FR
• 640x512 resolution
• 25mm lens
• 30Hz refresh rate

The FLIR Zenmuse XT2 is a dual payload drone gimbal which integrates a high-resolution FLIR thermal sensor and a 4K visual camera. The advanced thermal sensor provides high sensitivity imaging for infrastructure monitoring, energy inspections, firefighting, search and rescue missions, and more. With a fully integrated dual payload, professionals can now capture actionable thermal and color visible data in a single flight, saving time, money, and lives.

The HeatTrack and QuickTrack features make it easy to mark and track objects on your mobile device's screen. The FLIR longwave infrared thermal camera provides high-sensitivity (<50 mK @ nf/1.0) infrared scanning at 640/30 fps or 336/60 fps (depending on the camera model), and has 9 mm, 13 mm, 19 mm, and 25 mm lens options. The visual camera captures 4K videos and 12MP photos.

The Zenmuse XT2 is available in several configurations, as can be seen below:


As with other DJITM 3-axis gimbal systems, the Zenmuse XT 2 can be mounted onto the MATRICETM 200 series and Matrice 600 series aircraft and can stream live HD video to the DJI Pilot app. This makes it excellent for aerial thermal applications such as inspection and maintenance, search and rescue, and precision agriculture.

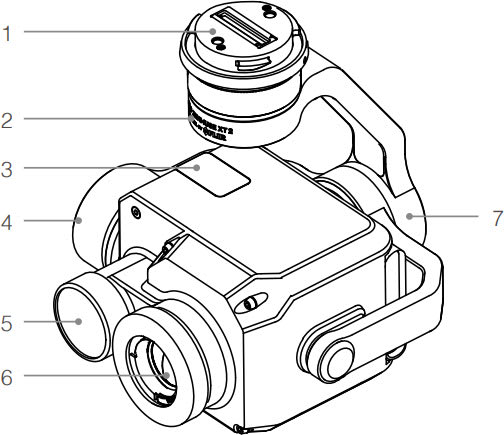

Zenmuse XT2 Overview

1. Gimbal Connector
2. Pan Motor
3. MicroSD Card Slots
4. Tilt Motor
5. Visual Camera
6. Infrared Thermal Camera
7. Roll Motor
