FLIR VSC-IR32 - Probe for VS290 Videoscope

Name: FLIR VSC-IR32 - Probe for VS290 Videoscope
Brand: FLIR
SKU: FLIRVSC-IR32
Price: 2729.00 USD
Availability: InStock

0 reviews | Catalog: VSC-IR32 | UPC: 793950429037 | Model: FLIR VSC-IR32

Compare

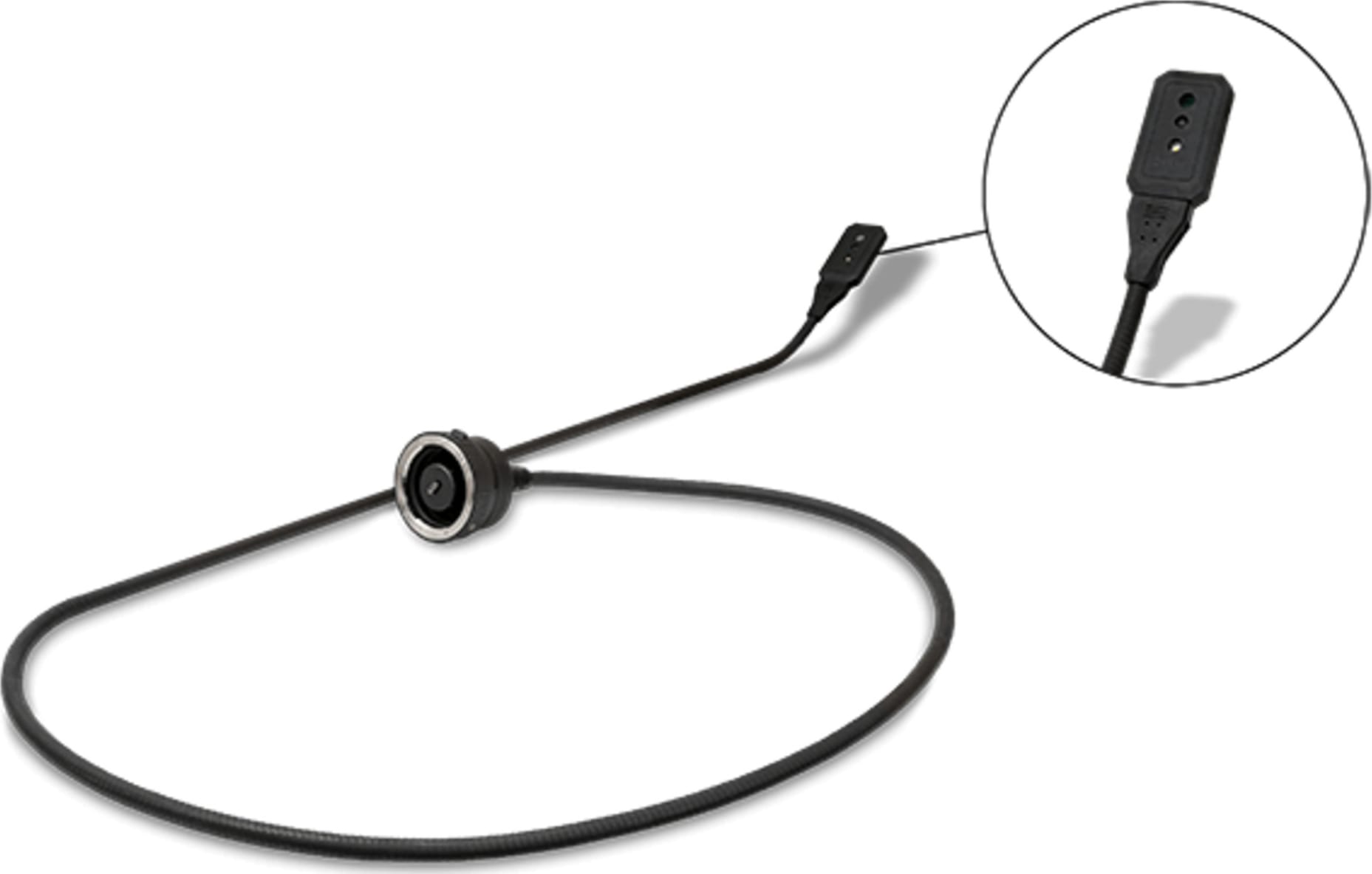

Thermal 160x120 MSX Camera Probe with Rectangular Tip (VS290)

View Product Details

Your Price: $2,729.00

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Imaging and optical data
IR resolution	160 × 120 pixels
Digital image enhancement	Yes
Thermal sensitivity/NETD	<100 mK
Field of view (FOV)	57° × 44°
Minimum focus distance	0.15 m
Minimum focus distance with MSX	0.65 m
Image frequency	8.7 Hz
Focus	Fixed
Detector data
Focal plane array/spectral range	Uncooled microbolometer/7.5–14 µm
Detector pitch	12 μm
Measurement
Object temperature range	–10°C to 400°C (14°F to 752°F) (at room temperature)
Accuracy	At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F). 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3%
Probe
Structure and Dimensions	2 m total length with 3 segments: 1.2 m semi-rigid 0.7 m rigid 0.1 m semi-rigid Probe tip dimensions: 71.7 x 40.5 x 11 mm (2.8 x 1.6 x 0.43 in)
Probe Insulation	2-layers of ruggedized insulating material. Black outer layer and bright yellow inner layer.
Digital camera
Resolution	2 MP (1600 × 1200 pixels)
Field of view	83°
Worklight
Model	CREE XPG2
LED CCT	6500 K
LED CRI	70
Beam angle	120°
Rated power	0.7 W
Light output (Lumens)	117 lm
Encapsulation	Probe tip : IP67 (IEC 60529)
Safety	CAT IV 600 V
Physical data
Weight (including battery)	470 g (1.04 lbs)
Size (L × W × H)	212.2 x 0.69 cm (83.5 x 0.3 in)
Warranty and service
Shipping information
Packaging, type	Cardboard box
Packaging, contents	Thermal MSX camera probe
Packaging, weight	1.26 kg (2.78 lbs)
Packaging, size	32 x 17 x 11.5 cm (12.6 x 6.69 x 4.5 in)

Accessories/Borescope Probes and Camera Heads Template
Shaft Length	83.5 IN
Shaft Diameter	0.3 IN (0.025 M)
Test Equipment General Attributes
Product Weight	1.04 LBS
Product Height	4.53 IN
Product Length	12.60 IN
Product Width	6.70 IN
Shipping Weight	2.78 LBS
HTS/Schedule B Number	9013907000
ECCN Number	6A993.a
Country of Origin	Taiwan
Shipping Height	4.53 IN
Shipping Length	12.60 IN
Shipping Width	6.70 IN
