FLIR VS70-1W Wireless General Purpose Combo (VS70 + VST + VSC80-1R)
The FLIR VS70 is a rugged, waterproof and shock-resistant videoscope that features intuitive handset controls that enable users to maneuver the narrow camera probe into tight spaces to deliver vivid and sharp video and images to a large 5.7” color LCD display. Advanced inspection solutions, expansion cameras, and add-on accessories enable users to expand their FLIR VS70 to address many different inspection needs.
Let the VS70 take you where few have gone before.
Bring hidden problems into clear view by accessing extremely confined areas. The new FLIR VS70 is a rugged, waterproof videoscope featuring user-friendly, ambidextrous handset controls that help you easily maneuver the narrow camera probe into extremely tight spaces to uncover hidden problems.
View clear video and images on the durable 5.7” (145mm) color LCD display that is easy to see, even in bright outdoor areas. All cameras are equipped with adjustable LED lights to illuminate dark inspection targets. On-screen menus include support for 26 languages.
World-class features that meet your real-world needs.
The FLIR VS70’s rubber-reinforced case is waterproof and dustproof (IP67-rated) – as well as oil and chemical resistant. Droptested from a height of 2 meters (6.5 feet), the VS70 is built for rough use in harsh environments.
Designed for on-the-job endurance, the VS70 has a rechargeable lithium battery that lasts 6 to 8 hours. Flexible USB recharging options and the included vehicle charger means your VS70 will work all day long.
![FLIR_VS70_Generator_Inspection]() |
![FLIR_VS70_Inspecting_cylinder_in_aircraft_motor_with_VSA2-1M]() |

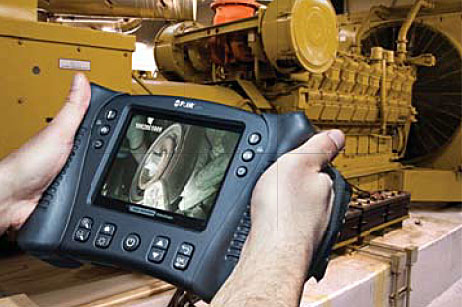

| FLIR VS70 Generator Inspection |

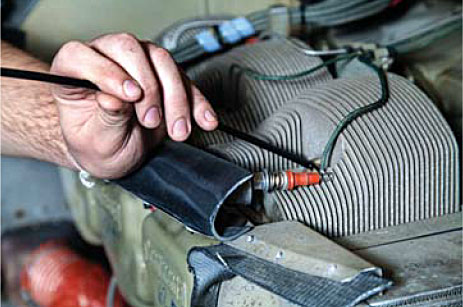

FLIR VS70 Inspecting cylinder in aircraft motor with VSA2-1M |
Different cameras :
- Short or long focus solution
- 2/1 Way articulation or not
- Diameter
Differents Kits
| Kit |
Components |
Description |
| VS70-1 |
VS70 + VSC8.0-1R + accessories + case |
General purpose (wired) long focus combo kit includes the VS70, base kit and 8mm long focus camera on a 1-meter
semi-rigid cable. This kit enables users to perform basic inspections and add options as needs grow. |
| VS70-1w |
VS70 + VST + VSC8.0-1R + accessories + case |
Wireless general purpose combo kit includes the VS70, wireless handset (VST), and a non-dedicated 8mm long focus
camera on a 1-meter semi-rigid cable. The wireless handset makes it easy to manipulate the camera probe while keeping
the display in clear view. |
| VS70-2 |
VS70 + VSC5.8-1RM + accessories + case |
Small opening short focus combo kit includes the VS70, base kit, and a 5.8mm short focus camera on a 1-meter semirigid
cable. Allows close-up inspections. |
| VS70-3 |
VS70 + VSA2-1 + accessories + case |
Wired articulation combo kit includes the VS70 and wired handset with dedicated 6mm long focus camera with 2-way
articulation on a 1-meter semi-rigid cable. Long focus offers farther viewing distances and articulation provides greater
internal camera control. |
| VS70-3w |
VS70 + VSA2-1w + accessories + case |
Wireless articulation combo kit includes the VS70 and wireless handset with a dedicated 6mm long focus camera and
2-way articulation on a 1-meter semi-rigid cable. Offers farther viewing and greater internal camera control. |
| VS70-Kit |
VS70 + VSA2-1 + VSC5.8-1RM
+ accessories + case |
Starter bundle includes the VS70 and a wired handset with a dedicated 6mm long locus camera with 2-way articulation
on a 1-meter semi-rigid cable, and an 8mm short focus camera on a 1 meter semi-rigid cable. Offers long-distance views
and close-up inspections. |
| VS70-Kit-w |
VS70 + VSA2-1-w + VSC5.8-1RM
+ accessories + case |
Wireless bundle includes the VS70 and a wired handset with a dedicated 6mm long focus, 2-way articulation camera on
a 1-meter semi-rigid cable, and an 8mm short focus camera on a 1-meter cable. Allows long-distance views and close-up
inspections. |
FLIR VS70 Customizable Camera Options
Camera Probes and Camera Lenses
A wide variety of camera probe diameters (from 3.9mm to 28mm) enable users to gain access into otherwise inaccessible areas. Probe sizes are selected based on the width of access points.
![FLIR_VS70_Customizable_Camera_Options]() |

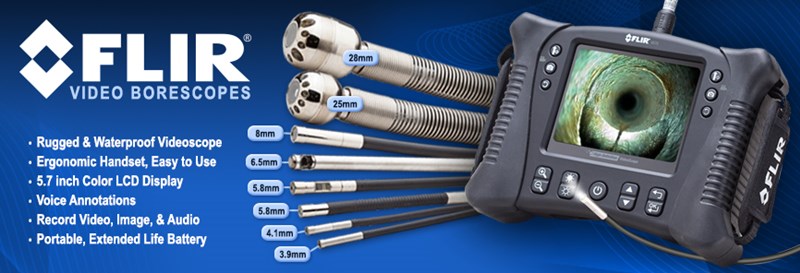

| FLIR VS70 Customizable Camera Options |
Long Focus (65mm/2.36” to 8) Lenses enable you to see further within confined areas. They are ideal for accessing larger areas where the inspection targets are viewed at longer distances from the camera tip.
Short Focus (20 to 65mm / 0.59” to 2.36”) Lenses let you perform inspections in areas where close-up viewing of detailed features is essential, such as when inspecting turbine blades or boiler tubes.
Mix-and-Match Options
Customized Solutions
The FLIR VS70 is available with a wide range of probes and other accessories that enable users to create custom-configured solutions that meet their specific needs. One such accessory is the Videoscope Transmitter (VST), a general purpose wireless transmitter designed to work with all cameras.
Choose the right optical camera tip available with the VS70—long focus or macro focus—that’s right for your job requirements.
|
Selection Guide
|
|
Answer the below questions to begin the selection process. Match up the colored circles in the Selection Guide to the VS70 options that best meet your needs.
Smallest opening sizes?
• Smallest diameter cameras for openings less than 5mm
• Smaller diameter cameras for openings less than 10mm (3/8”) in size
• Larger diameter cameras for openings more than 10mm (3/8”) in size
Distance to inspection targets?
• Short Focus Cameras to check for fine details from 20 to 60mm away
• Long Focus Cameras to see distances from 65mm to ∞
Typical target distances?
• 1-Meter Cables for shorter distances
• 2-Meter Cables for distances greater than 1 meter
• 20- or 30-Meter Cables for longer distances
Need More Viewing Options?
• 2-Way Articulation Camera
• Dual Camera (180/90°) Camera
• Rigid Probe with Rotating Mirror
|
