FLIR TG56-NIST Spot IR Thermometer with Thermocouple 30:1 with NIST

Name: FLIR TG56-NIST Spot IR Thermometer with Thermocouple 30:1 with NIST
Brand: FLIR
SKU: FLIRTG56-NIST
Price: 393.99 USD
Availability: InStock

0 reviews | Catalog: TG56-NIST | UPC: 793950401569 | Model: FLIR TG56-NIST

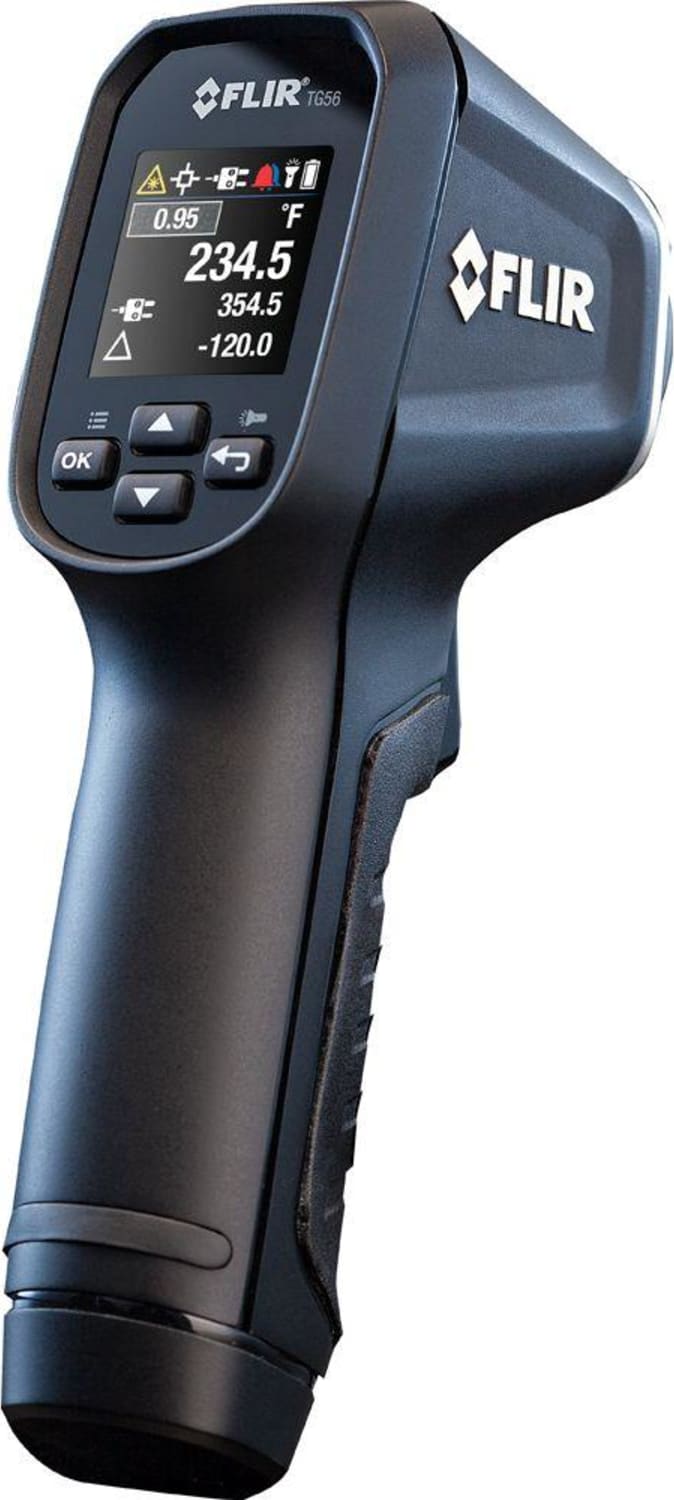

FLIR_TG56-NIST_Spot_IR_Thermometer_with_Thermocouple_Main_View

Compare

Spot IR Thermometer with Thermocouple 30:1 with NIST

TG56-NIST Spot IR Thermometer with Thermocouple 30:1 with NIST

Measure high and low.
Easily take measurements in hard-to-reach spots from farther away

Take non-contact surface temperature measurements with IR (infrared) sensor
24:1 or 30:1 spot ratio to measure smaller targets from a safer distance
Easily identify measurement location with built-in laser targeting

Simple to use.
Color display, easy to navigate

Graphical menu structure allows easy access to settings
Easy emissivity selection with predetermined levels and custom adjustment
Stunning visual high and low alarms

Convenient and rugged design.
Portable, compact size

Rugged, industrial design that can withstand a three meter drop
Bright worklight to help you see your target in poor lighting conditions
Tool-less battery compartment

View Product Details

List Price: $393.99

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Probes

for the FLIR TG56-NIST

FLIR TA60 Universal Thermocouple probe with adapter

Catalog: TA60

(0)

In Stock!

Add to Cart

FLIR TG56-NIST Spot IR Thermometer with Thermocouple 30:1 with NIST

Measure high and low
24:1 or 30:1 spot ratio to measure smaller targets from a safer distance
Simple to use
Easy emissivity selection with predetermined levels and custom adjustment
Convenient and rugged design
Bright worklight to help you see your target in poor lighting conditions

The TG54 and TG56 Spot IR (Infrared) Thermometers provide non-contact surface temperature readings so you can quickly and easily take measurements in places that are out of reach. Providing a distance-to-spot ratio of up to 30:1, the TG54 and TG56 can measure smaller targets from a safer distance. New mode options give you control to view your current reading and last two temperature readings simultaneously. The TG54 and TG56 are built with a color screen that makes it easy to navigate and select settings, plus adds visibility and efficiency to the advanced feature set. The TG54 and TG56 are your go-to, pocket-sized devices for efficient temperature measurement.

FLIR TG54/TG56 Spot IR Thermometers Features

TG54 and TG56 Feature powerful LED worklights

Easily identify measurement location with built-in laser

TG56 Features thermocouple Type K input

FLIR Spot IR Specifications	TG54	TG56
Distance to Spot Ratio (D:S)	24:1	30:1
Range	-30°C to 650°C (-22°F to 1202°F)
Basic Accuracy	±1°C/1.8°F or 1% of Reading
Emissivity	Adjustable with 4 presets and custom option
Resolution	0.1°C / 0.1°F
Response	=150 Milliseconds
Spectral Response	5 to 14 microns
Thermocouple (TC) Input Specifications
Input Type	-	K
Input Range	-	-30°C to 650°C (-22°F to 1202°F)
Input Basic Accuracy	-	'±1°C/1.8°F or 1% of Reading
Measurement Resolution	-	0.1°C / 0.1°F
Included Type K Thermocouple Probe Range	-	-30°C to 300°C (-22°F to 1202°F)
Features
Max / Min	Yes
Differential (MAX-MIN)	Yes
AVG (6k pts running average)	Yes
TC / IR Differential Mode	-	Yes
Alarm	High / Low
Alarm Alert	Color (Red / Blue) indication
General
Display (w x h)	1.45” TFT LCD (128 x 128 pixels)
Laser Orientation	Single laser pointer to center of measurement spot, Class 1
Warranty*	5 Year
IP Rating	Designed for IP56	-
Drop Test	Designed for 3m
Continuous Run Time	8hrs Maximum
Power Source	3 x AAA alkaline
Auto Power Off	Yes with Pre-set adjustment level and Disable option
Certifications	CE / FDA Laser
Includes	Wrist Strap Lanyard, Quick Start Guide, User Manual (CD), 3 x AAA Batteries, (TG56 adds General Purpose Type K Thermocouple)

Tech Specs

Thermometers/IR Thermometers Template
IR Temperature Max	1202 F
IR Temperature Min	-22 F
Field View Ratio (Spot Ratio)	30:1
Accuracy	±1°C/1.8°F or 1% of Reading
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	Yes
Data Hold	No
Max./Min.	Yes Max./Min. Also Differential (MAX-MIN)
Thermocouple Input	Yes
Food Safe	No
Test Equipment General Attributes
Warranty	5 YEARS
Safety Approval	CE
Interfaces I/O	IR
IP Rating	IP65
Product Weight	312 GRAMS (0.688 LBS)
Product Height	6.2 IN
Product Width	1.7 IN
Shipping Weight	1.1 LBS
Data Logging	No
Calibration Included	Factory Calibration
Battery Type	AAA
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	10.9 IN
Shipping Length	6.8 IN
Shipping Width	6.9 IN
