| General Specifications |
| Accuracy |
±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Detector Type |
Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) |
57° × 44° |
| IR Resolution |
160 × 120 pixels |
| Laser |
Class 1 laser indicates the temperature measurement area; button-activated |
| Object Temperature Range |
-25°C to 1030°C (-13°F to 1886°F) |
| Thermal Sensitivity/NETD |
< 70 mK |
| Warranty |
FLIR 2-10 warranty |
| Built-in Illuminator LED |
100 lumens, 6500 K flashlight |
| FLIR Tools |
Compatible |
| COMPLIANCE & CERTIFICATIONS |
| Certifications |
CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| CONNECTIONS & COMMUNICATIONS |
| Interface |
USB 2.0, Bluetooth |
| Storage Media |
eMMC 4 GB |
| USB |
USB Type-C: data transfer/power |
| USB - Standard |
USB 2.0 High Speed |
| ENVIRONMENTAL |
| Drop test |
Designed for 2 m (6.6 ft) |
| EMC |
EN 61000-6-3
EN 61000-6-2
FCC 47 CFR Part 15 Class B |
| Emissivity Correction |
Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Encapsulation |
IP 54 (IEC60529) |
| Humidity (Operating and Storage) |
0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) |
| Operating Temperature Range |
-10°C to 45°C (14°F to 113°F) |
| Radio Spectrum |
ETSI EN 300 328
FCC Part 15.249
RSS-247 Issue 2
EN 301 489-1:2011
EN 301 489-17:2009 |
| Safety |
CE/CB/EN61010/UL |
| Shock |
25 g (IEC 60068-2-27) |
| Storage Temperature Range |
-30°C to 55°C (-22°F to 131°F) |
| Tripod Mounting |
1/4 in.-20 on handle bottom |
| Vibration |
2 g (IEC 60068-2-6) |
| IMAGING & OPTICAL |
| Built-in Digital Camera |
Yes |
| Color palettes |
Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch |
12 µm |
| Digital image enhancement |
Yes |
| Focus |
Focus free |
| Gallery |
Yes |
| Image Adjustment |
Automatic |
| Image Frequency |
8.7 Hz |
| Image Modes |
MSX® (Multi Spectral Dynamic Imaging)
Visual with temperature reading |
| Minimum Focus Distance |
0.3 m (0.98 ft) |
| Minimum Measurement Distance |
0.26 m (0.85 ft) |
| Spectral Range |
7.5 - 14 µm |
| Digital Camera Resolution/FOV |
2 MP (1600 × 1200 pixels), 71° × 56° FOV |
| MEASUREMENT & ANALYSIS |
| Center spot |
Yes |
| IR Temperature Resolution |
0.1°C (0.2°F) |
| IR Thermometer Measurement Acquisition |
Continuous scanning |
| Languages |
Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish. |
| Set-up Commands |
Local adaptation of units, language, date, and time formats
Screen brightness (high, medium, low)
Gallery, deletion of images |
| Spot Meter |
Center spot on/off |
| METER DATA |
| Camera size (L x W x H) |
210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery |
0.394 kg (13.9 oz) |
| Cover Glass Material |
Optical grade silicon |
| Display |
320 × 240 pixel, 2.4 in color LCD |
| POWER |
| Battery operating time |
5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type |
Rechargeable Li ion battery |
| Battery voltage |
3.7 V |
| Charging system |
Battery is charged inside the camera |
| Charging Temperature |
0°C to 45°C (32°F to 113°F) |
| Charging Time |
4 hours to 90%, 6 hours to 100% |
| Power Management |
Adjustable: off, 5 min., 15 min., 30 min. |
| Battery charge life |
30 days minimum |
| SHIPPING INFORMATION |
| Includes |

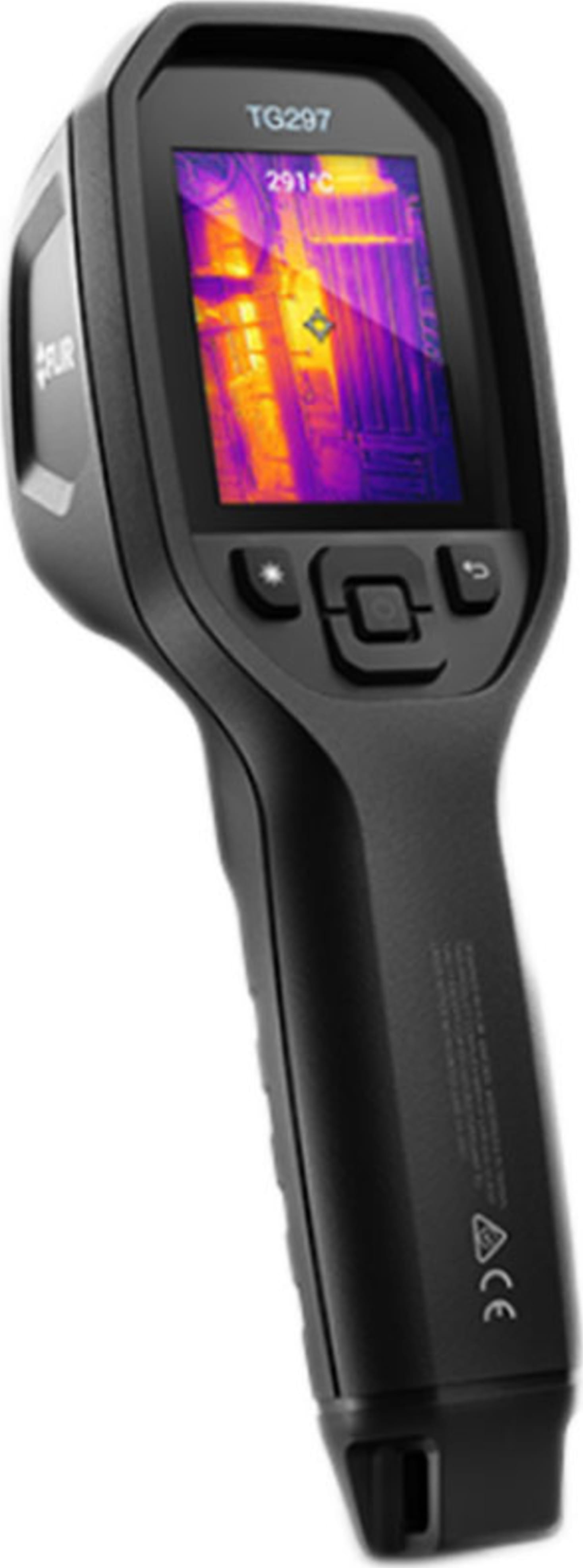

TG297, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch |
| STORAGE MEDIA |
| Image Storage Capacity |
4 GB for storage of up to 50,000 pictures |
| Memory Type |
Internal |
| Saved image format |
JPEG |
