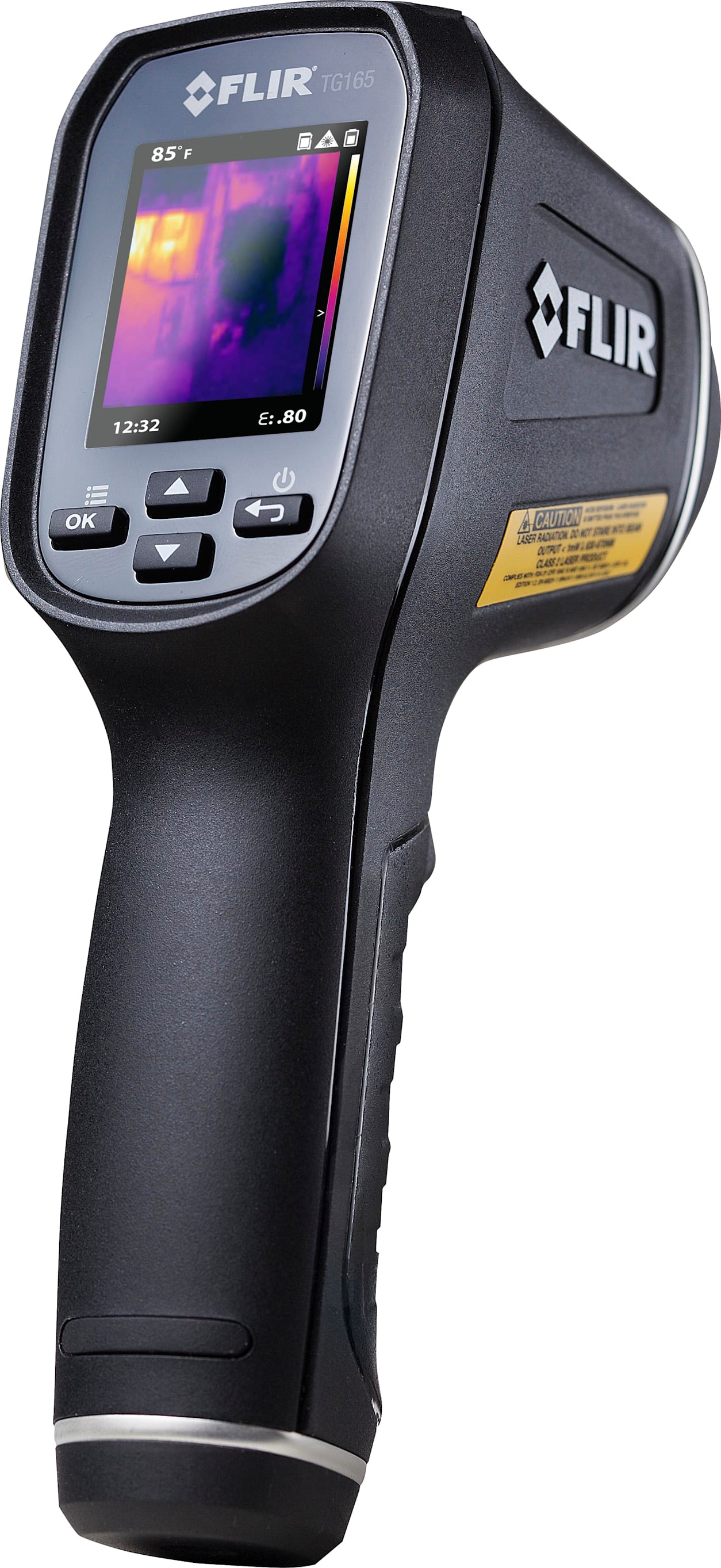

FLIR TG165 Spot Building and Industrial Thermal Imagers

Name: FLIR TG165 Spot Building and Industrial Thermal Imagers
Brand: FLIR
SKU: FLIRTG165
Price: 43983.00 USD
Availability: InStock
Rating: 4.65 (60 reviews)

4.5 (60 Reviews) | Catalog: TG165 | UPC: 793950401651 | Model: FLIR TG165

Images (26) | Videos (11)

Compare

FLIR TG165 IR Spot Thermal Camera - Thermometer with Thermal Image

+/- 1.5% or 1.5°C Basic Accuracy
-25 to 380°C, -13 to 716°F Temperature Range
24:1 Distance to Spot Ratio
2 Year Product Warranty and 10 Year Thermal Imaging Detector Warranty (when registered within 60 days of purchase)

View Product Details

List Price: $43,983.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

for the FLIR TG165

FLIR Thermal Studio FLIR Thermal Studio 1.0 (License Key/QR Code) 2 Users - perpetual...

Catalog: T300258

(0)

In Stock!

Add to Cart

FLIR ITC Level I ITC Level I Thermography Certification (4-Day), per attendee

Catalog: ITC Level I

(0)

In Stock!

Add to Cart

FLIR TG165 Spot Thermal Camera - Thermometer with Thermal Image

The FLIR TG165 is a new class of non-contact temperature measurement tool that we call an Imaging IR Thermometer. The TG165 blows away traditional single point spot temp guns and visual hybrids. Unlike old school radiometers that have you blindly stabbing away trying to find a heat anomaly component by component, the TG165 actually lets you see a true IR image of what’s cold and what’s hot so you quickly know where to point to get a good reading. That saves lots of time and speeds up troubleshooting. It also has two built-in laser pointers that define the size of the area you’re measuring so you can trust what you’re getting. It’s designed to detect high-temp situations often found on mechanical equipment, too. It’s a no-brainer to use, and handy and small enough to slip into a crowded tool bag. You don’t have to pay through the nose either. Priced under $500, it helps you equip everyone in the field and around the plant with the power of thermal.

FLIR TG165 Imaging IR Thermometer – How it Works

Thermal imaging is one of the most powerful technologies ever developed to enhance visual perception. The unaided human eye can only perceive a very narrow band of visible light along the electromagnetic spectrum, which also includes radio and microwaves, infrared and ultraviolet light, X-Rays, and gamma rays.

Thermal energy—or “heat”—resides within the infrared spectrum, which is invisible. However, a spot thermometer sensor is capable of converting thermal energy into a temperature measurement, and a thermal imaging detector converts thermal energy into an electronic thermal image that can be viewed on an LCD screen.

The TG165 utilizes both of these types of infrared technology, simultaneously. The spot thermometer emits a beam of infrared light that lands on an object and then bounces back. The thermometer determines the object’s apparent surface temperature based on how much thermal energy the object is emitting, reflecting, or transmitting.

The TG165’s thermal imager, on the other hand, includes a micro thermal camera that can passively scan an area and display images of hot and cold patterns on an LCD screen. Being able to “see” infrared radiation creates an entirely new level of awareness for professionals and consumers, alike. Users no longer have to guess where to take temperature readings. They can literally see hot and cold spots, making work more efficient and reliable.

The TG165’s IR thermometer has a Distance-to-Spot ratio of 24:1. In other words, from a distance of 24 inches (61 cm), the TG165 can measure the temperature of a one-inch spot (2.5 cm). If you double the distance to 48 inches (122 cm) the spot diameter will expand to two inches (5 cm), and so on.

The amount of thermal energy emitted by an object depends upon its temperature and how effi ciently it radiates thermal energy. This efficiency is called “emissivity.” Emissivity values range from 0.1 for very reflective material—such as shiny metal—to 1.00 for a pipe with a flat black finish. The TG165 has both adjustable and preset emissivity settings, and the TG165 user’s manual includes a list of common materials and their respective emissivity factors as a quick reference for users who are not trained in thermography.

See the Heat

The FLIR TG165 Imaging IR Thermometer lets you see heat patterns, reliably measure temperatures with the onboard spot meter, and store images and data. Ready to use right out of the box, the TG165 will quickly become your go-to troubleshooting tool. Easily find hot and cold spots that are invisible to the naked eye to help you investigate and solve problems without delay. FLIR’s exclusive wafer-formed Lepton thermal sensor takes you beyond the limitations of single spot IR thermometers to help you see the heat and know right where to measure it.

Find an Unseen World of Problems Ordinary Meters Miss

Bridging the gap between single spot IR thermometers and FLIR’s legendary infrared cameras, the TG165 gives you the advantage of thermal imaging to help you discover temperature issues you can’t see with typical spot radiometers. You’ll work more quickly and have confidence you won’t miss anything vital.

Equipped with FLIR’s exclusive Lepton^® micro thermal camera, the TG165 helps you identify heat patterns, reliably measure temperature, and store images and data for reports. And with a spot ratio of 24 to 1, you can take accurate readings from safer distances. The TG165 is simple to operate, featuring intuitive menu icons and dual laser pointers. Built by the world leader in thermal technology, the durable TG165 will quickly become your “go to” temperature tool.

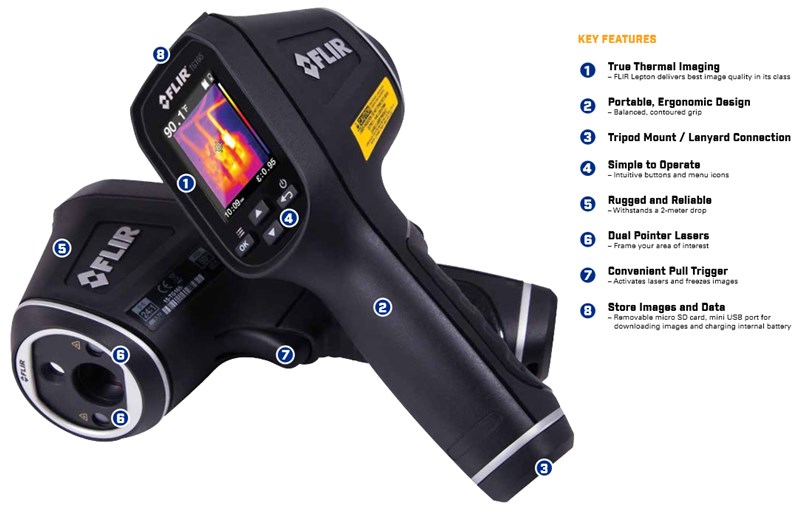

Key Benefits

See heat issues clearly
Measure temperature more accurately
Document your work with images
Trust the rugged durability
Target the right spot
Troubleshoot quickly
Stay safer and more aware
Fits every budget

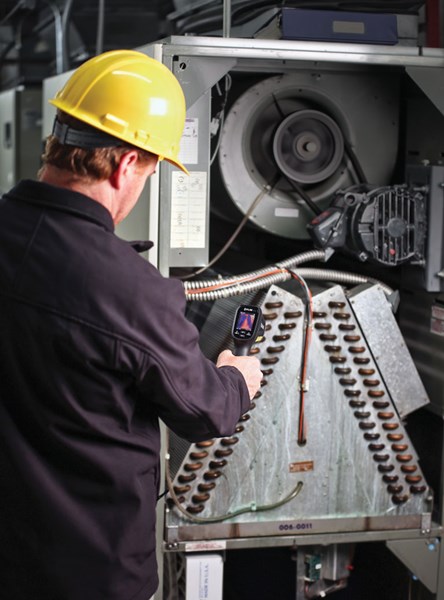

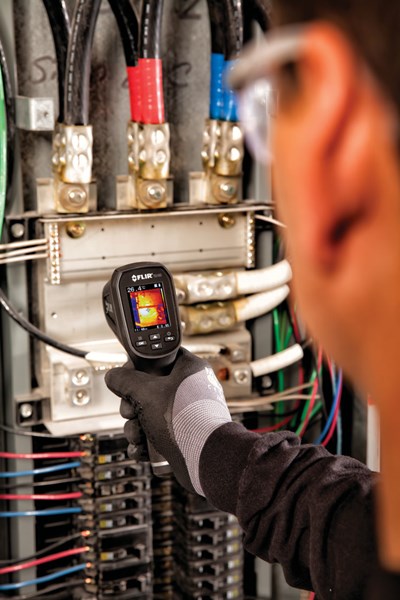

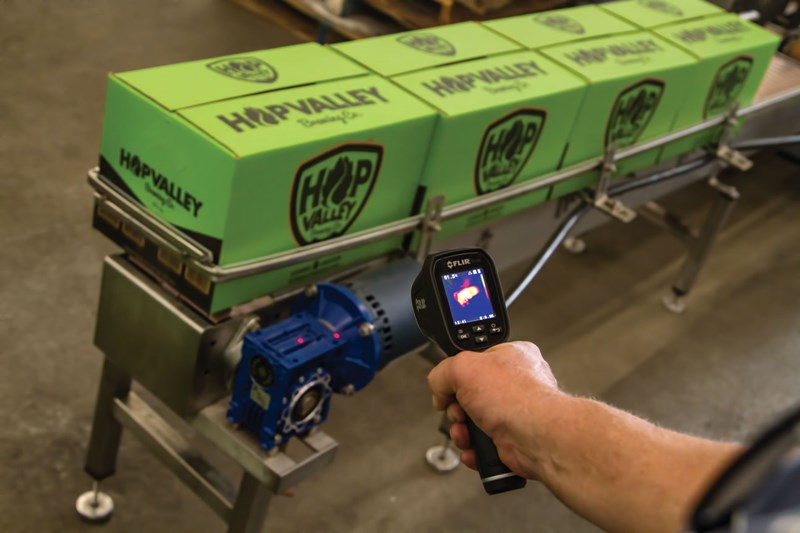

TG165 Electrical Troubleshooting Application	TG165 Automation line Application	TG165 HVAC Coils Application

Eliminates blind guesswork
FLIR’s innovative Lepton^® IR imaging engine

Exclusive Patented Technology
First of it’s kind combination technology
Guidance system in the palm of your hands

Stay Safe
24:1 spot size ratio allows for safe distance measuring

Dual lasers visually mark target area
On screen crosshair pinpoints spot measurement
High temperature range from 13°F to 716°F(-25°C to 380°C)

Streamlines documentation
Saves images and measurements for reports

Direct download to computer
Included Micro SD card with Adapter
Save Delete and Review IR Images on screen

Typical Applications

Electrical
Building
HVAC
Automotive/Transportation
Facility Maintenance
And more...

FLIR TG165 Image Resolution Comparison

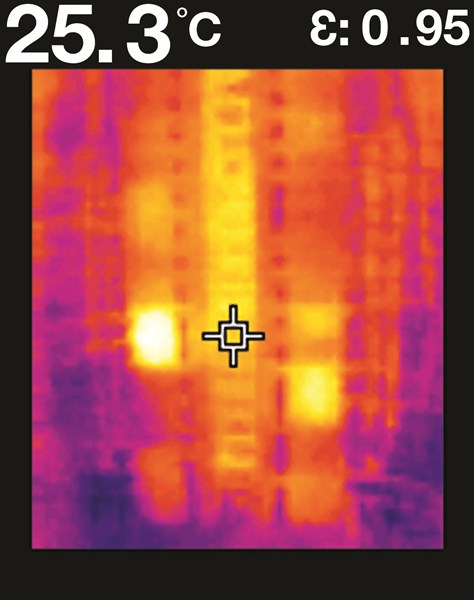

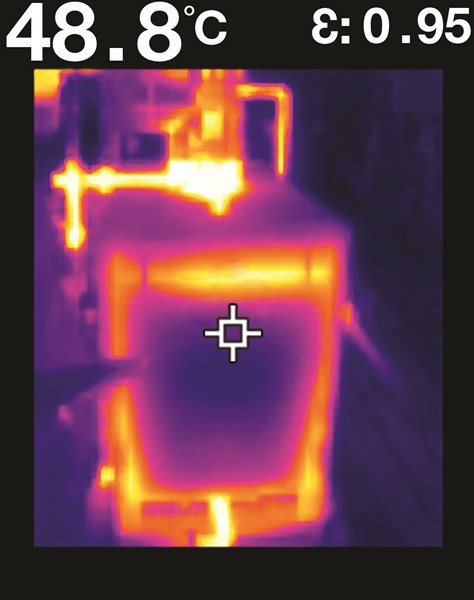

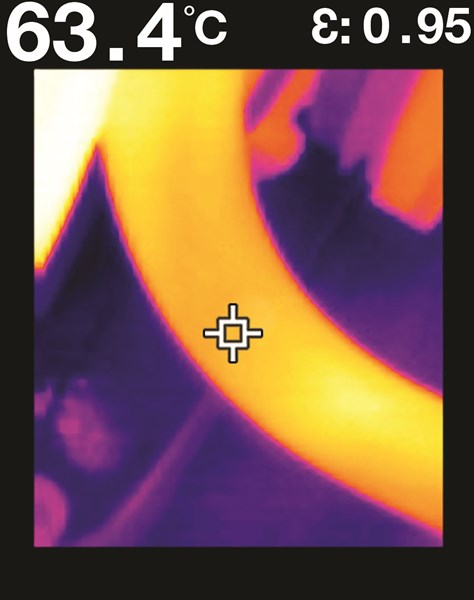

TG165 Active Circuits	TG165 Automobile Radiator Hose	TG165 Boiler Heat

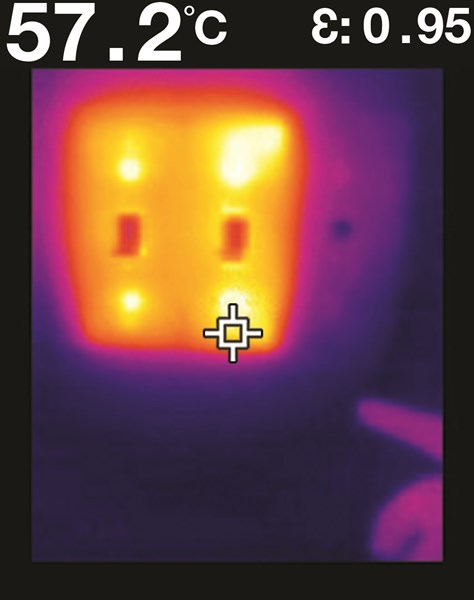

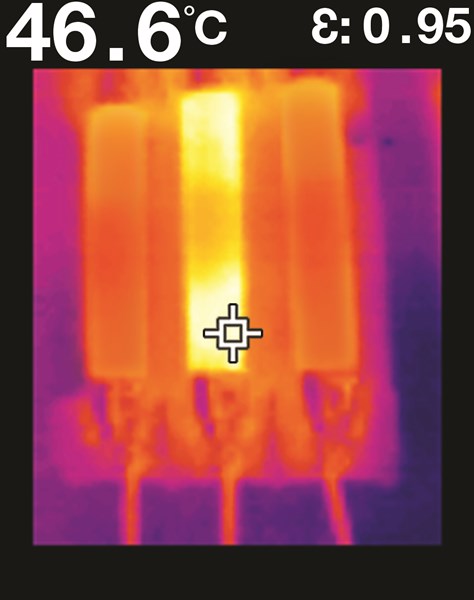

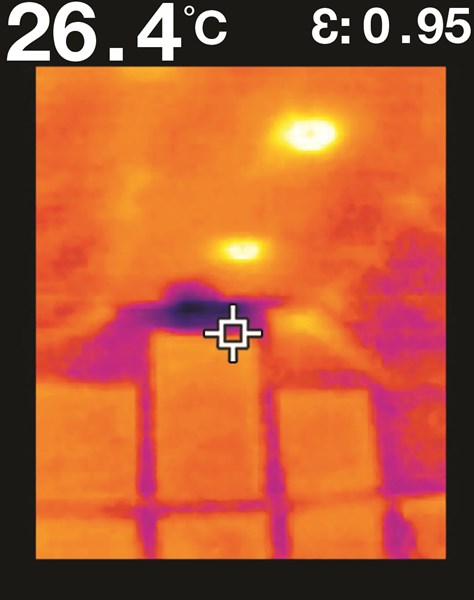

TG165 Cool Vent and Warm Recessed Lighting	TG165 Dimmer Switch Overheating	TG165 Electrical

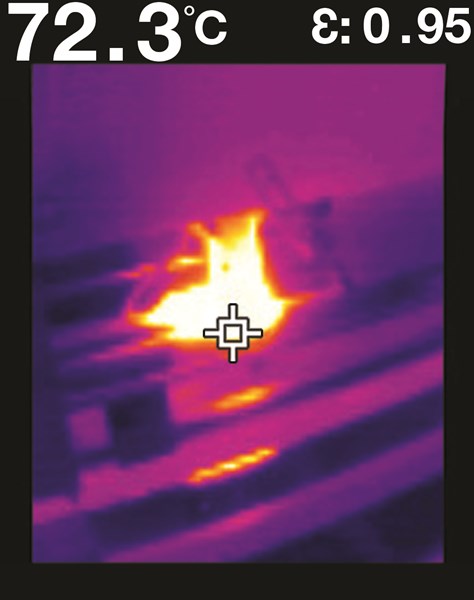

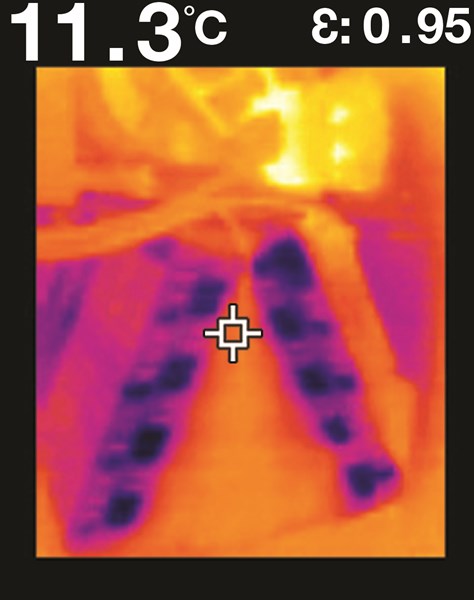

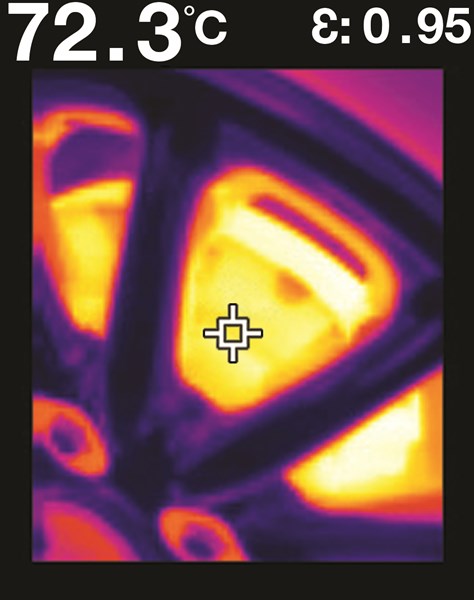

TG165 Hot Brake Rotors	TG165 Hot Glue Automated Dispenser in Bottling Plant	TG165 HVAC Compressor Coils and Fan Motor

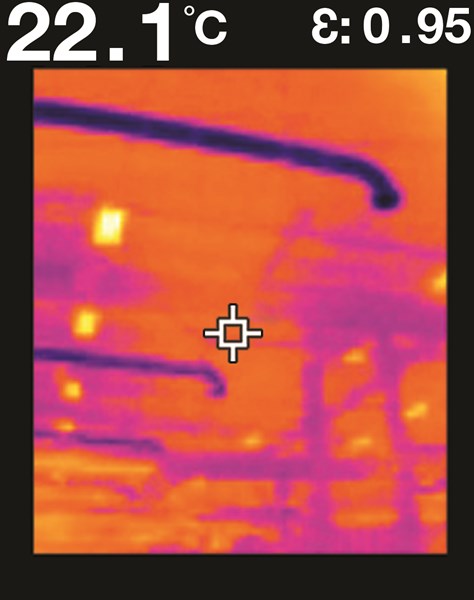

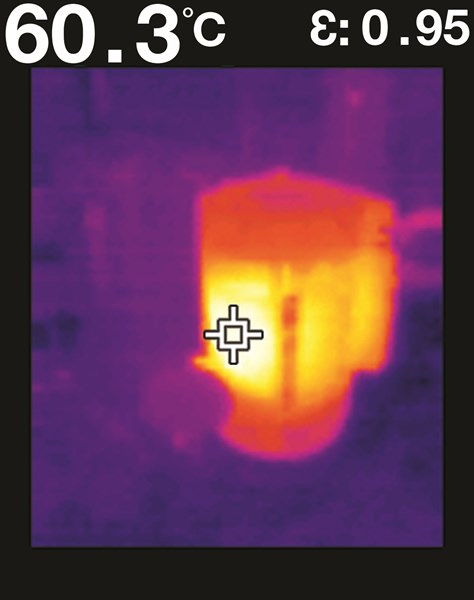

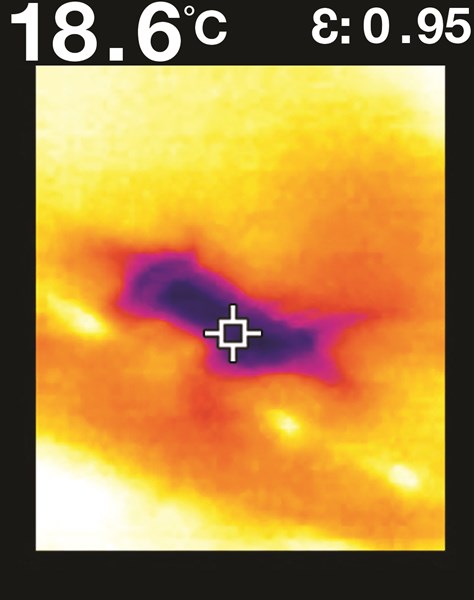

TG165 HVAC Vent Cool Air Flow	TG165 HVAC Ventilation Ducts at Normal Temperature	TG165 Motor

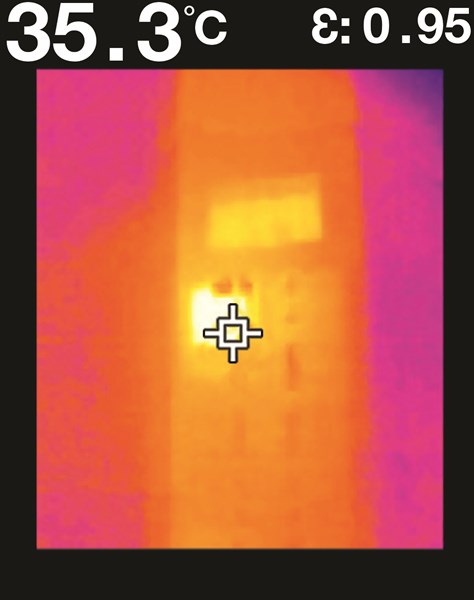

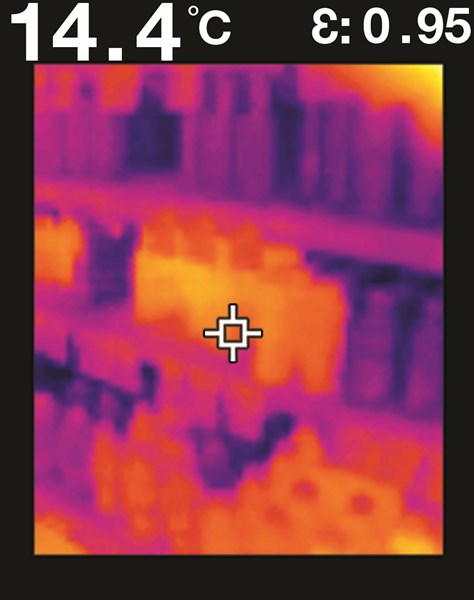

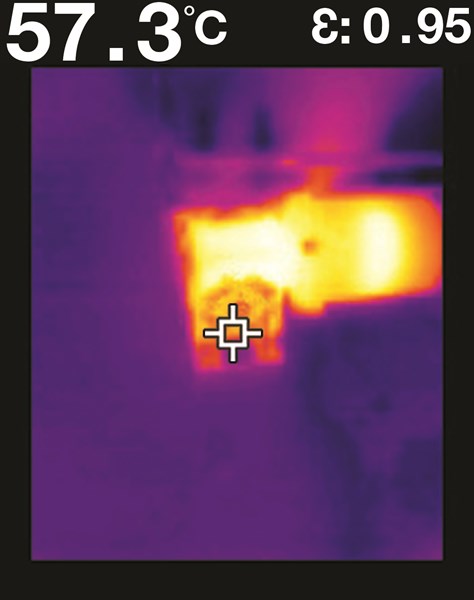

TG165 Overheating Gear Box on Conveyor System	TG165 Overloaded Electrical Circuit	TG165 Refrigerator

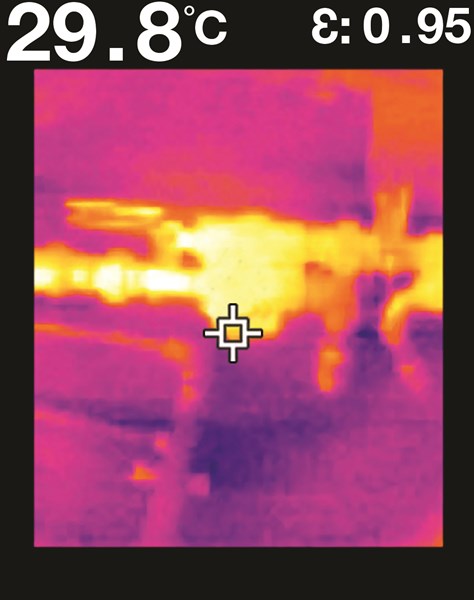

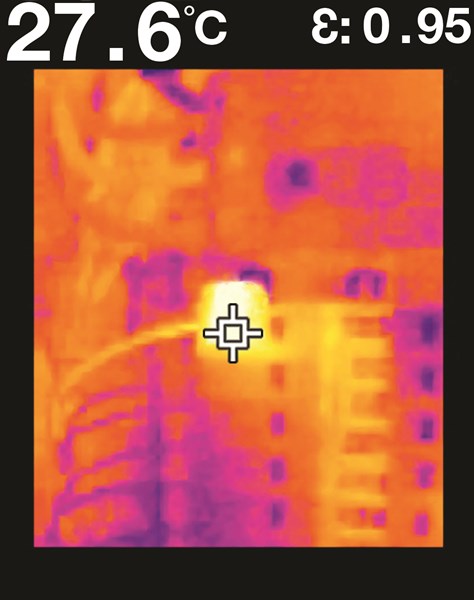

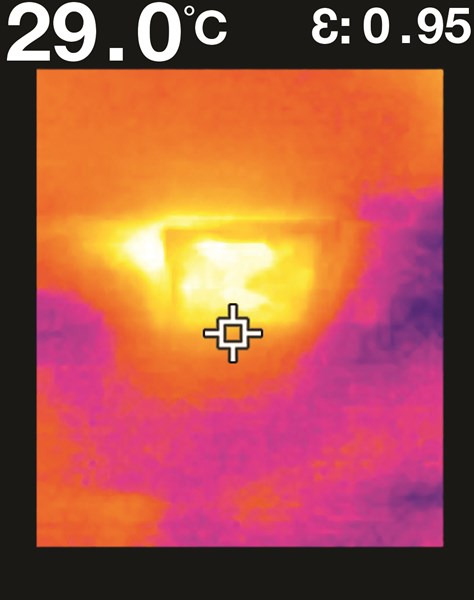

TG165 Steam Trap	TG165 Warm Air Heating Vent	TG165 Warm Electrical Breaker at Normal Load

Visual IR Thermometers by Application

FLIR infrared cameras make it easy to perform non-destructive inspections that isolate cold and warm air infiltration/exfiltration so necessary repairs and improvements can be made to tighten energy efficiency. FLIR thermal imagers can also instantly show temperature differences that verify what’s wet and what’s dry and are the IR inspection cameras preferred most by building experts for fast, reliable diagnosing of a full range of building applications, from energy audits and restoration to roofing and commissioning.

In addition to the most advanced infrared cameras, FLIR offers building diagnostics training for an even faster ROI. Take the Level I Certified Building Investigations class offered by the Infrared Training Center (ITC)or one of ITC’s many other certified IR courses. Learn the art and science of using an infrared camera to get the most out of your thermal imaging investment.

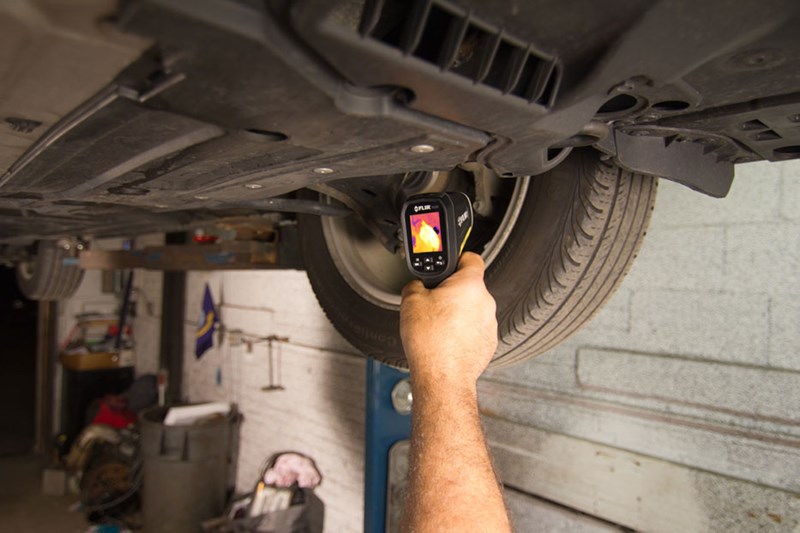

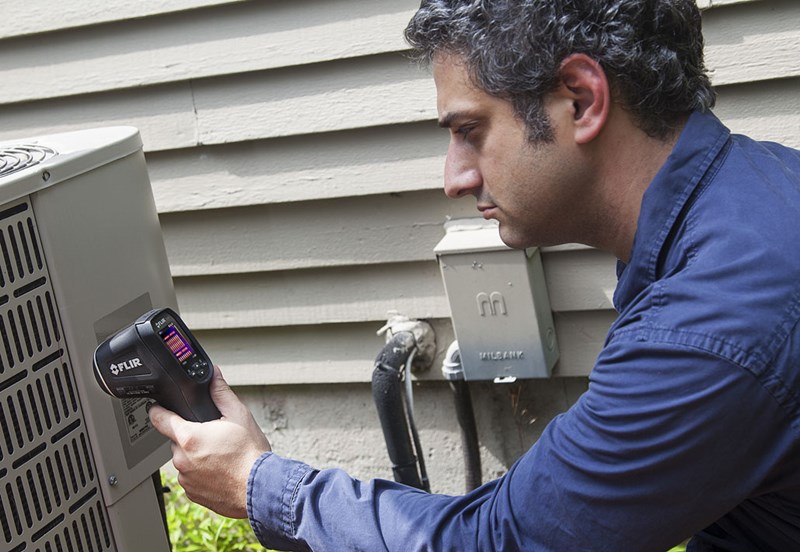

TG165 Air Conditioning Application	TG165 Brakes Application

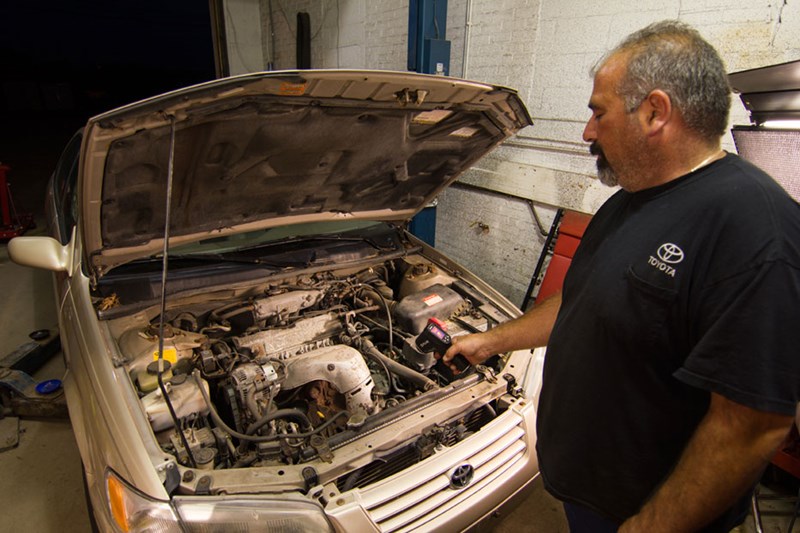

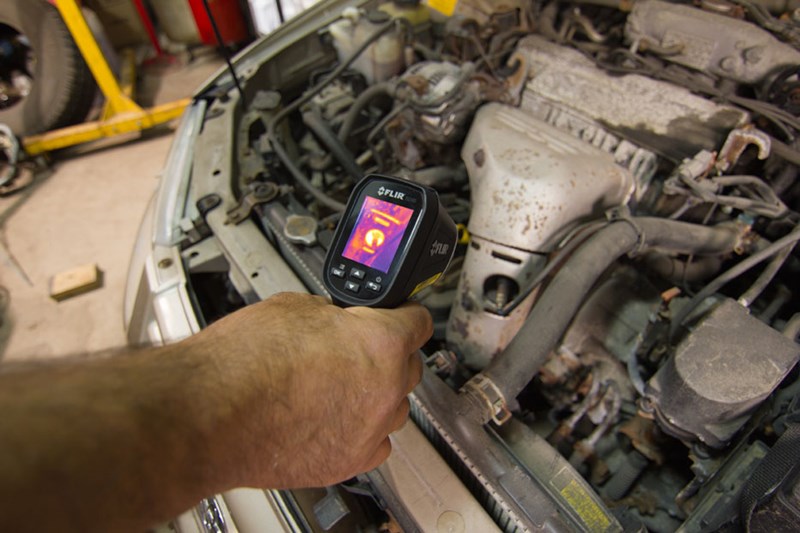

TG165 Car Application close-up view	TG165 Car Application Wide shot

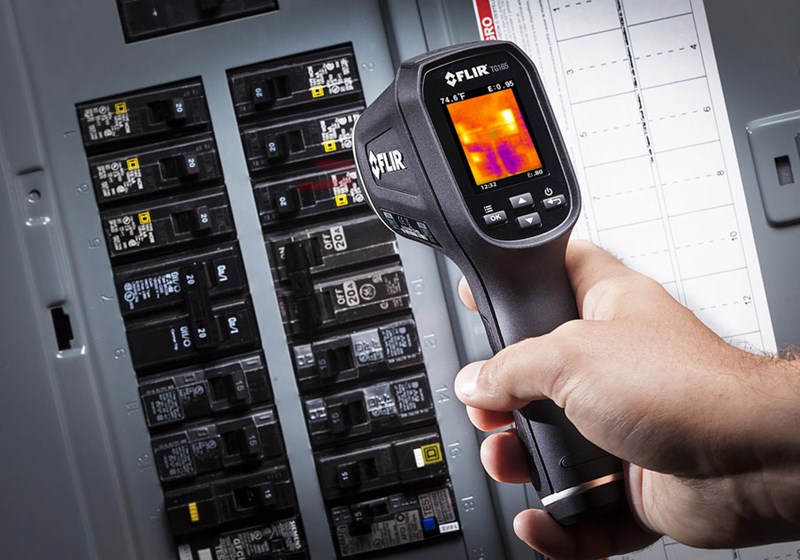

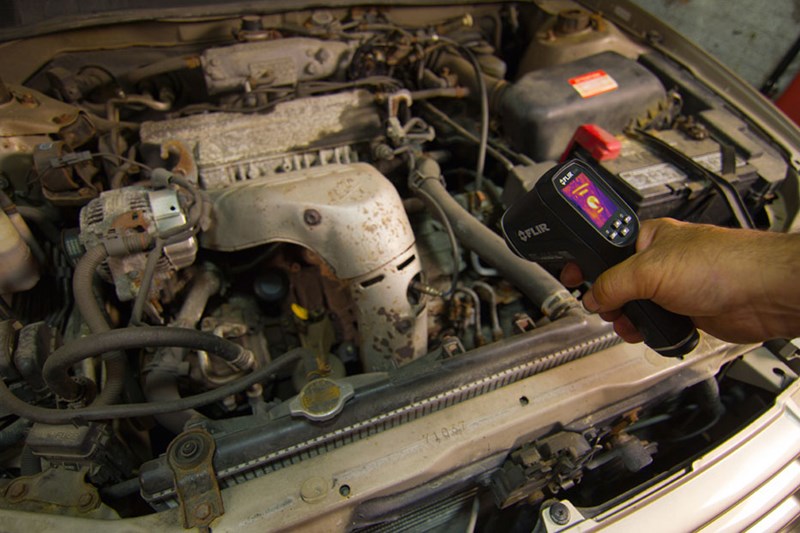

TG165 Car Application	TG165 Electrical & Mechanical Application

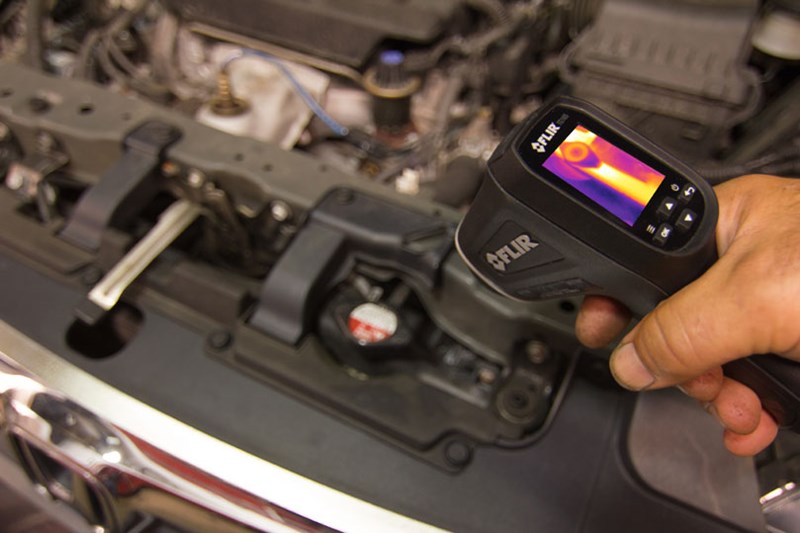

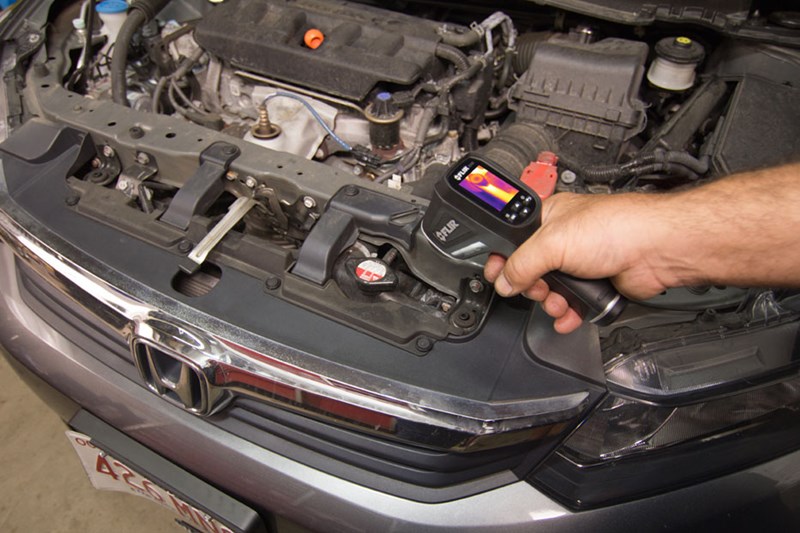

TG165 Radiator Car Application	TG165 Radiator Car Wide Application

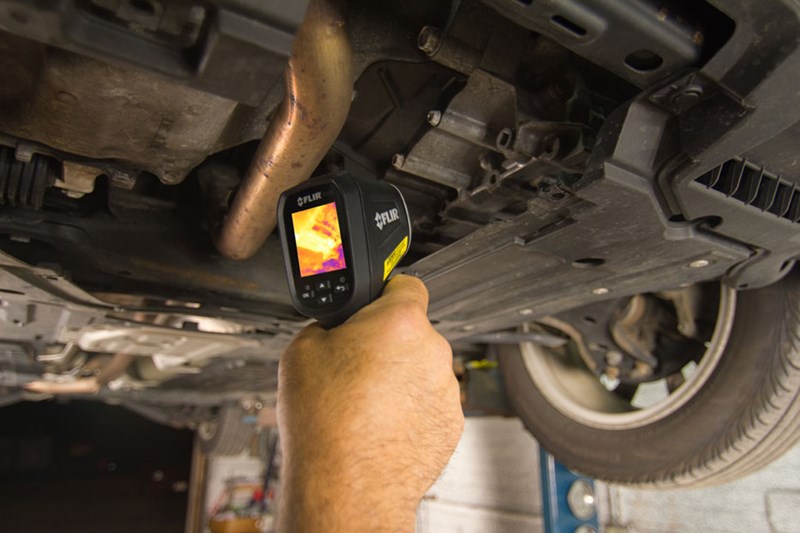

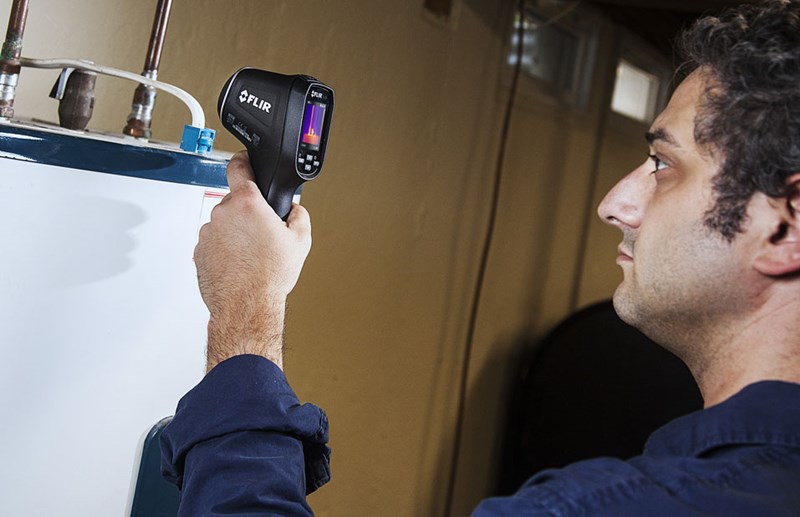

TG165 Transmission Application	TG165 Water Heater Application

Thermal imaging detects the infrared energy of any surface and produces a detailed image showing its temperature profile. Non-destructive and non-contact, the technology provides a safer, more cost-effective way to evaluate a building’s performance. It also has proven to be very effective and accurate tool for facility predictive maintenance (PdM) programs.

With thermal imager in hand, HVAC specialists and plumbing professionals get to see the heating and cooling issues in a whole new way. Since your profession is primarily about temperature control, why wouldn’t you use a tool that helps you visualize the problems that your customers can feel and are complaining about? You’ll be able to check air balance easier, locate air leaks and misrouted ductwork faster, and check for weatherization and other wasteful energy loss issues to confirm it’s not the furnace or AC that’s the culprit. Plus plumbers can use the tool to find clogs in drain pipes, locate hot and cold water lines in walls, and more.

From start to finish, FLIR infrared cameras can help you simplify your restoration and remediation jobs. Advanced features help you quickly scan large areas to assess what is restorable. An infrared camera helps you pinpoint water intrusion, find moisture beneath the surface, and document dryness with accuracy and confidence.

Easy Reporting - Busy restoration professionals can speed up surveys with the automated humidity alarms. Reporting is also simple since a FLIR camera includes software that supports templates, spell-check, and easy conversion of reports and images to PDF format for trouble-free emailing.

FLIR TG165 Imaging IR Thermometer Specifications
IR Temperature Measurement
Basic Accuracy	+/- 1.5% or 1.5°C
Range	-25 to 380°C, -13 to 716°F
Emissivity	4 Pre-Set Levels with Custom Adjustment, 0.1 to 0.99
Dist. to Spot Ratio (D:S)	24:1
Measurement Resolution	0.1 °C / °F
Response Time	150 Milliseconds
Spectral Response	8 to 14µm
Lasers	Dual Diverging Lasers, Frames Temp Measurement Area
Thermal Imaging
Imaging Detector	FLIR Lepton™ Microbolometer Focal Plane Array (FPA)
Shutter	Integrated Automatic Shutter
Image Resolution (H x W)	4,800 Pixels (80 x 60)
Spectral Response	8 to 14µm
Field of View (H x W)	50° x 38.6°
Upper Scene Range	127°C, 260°F (400K)
Thermal Imaging Sensitivity	150mK
Frame Rate	9 Hz
Color Palettes	2 (Grey Scale, Hot Iron)
Saved Image Format	Bitmap (BMP) Image with Temperature and Emissivity
General Specifications
Unit Size (H x W x D)	7.3 x 2.2 x 3.7 in (186 x 55 x 94 mm)
Display Type	2.0 in TFT LCD
Display Resolution (W x H)	38,720 Pixels (176 x 220)
Battery	Rechargeable via Micro USB Lithium-ion Battery: 3.7V, 2600mAh
Auto Power Off	Yes, Adjustable with Disable
Battery Life Hours	Typical Use: Five 8-Hr Work Days; Continuous Use: 8 Hrs
Certifications	CE / CB / FCC / FDA
Memory	8Gb Micro SD Card
Operating Temperature	-10 to 45°C, 14 to 113°F
Drop Test	Designed for 2 Meter, 6.5 Feet
Tripod Mount	1/4 in - 20 on Handle Bottom
Warranty	2 Years Product, and 10 Years Thermal Imaging Detector*
Includes	Lanyard, USB Cable, International Charger (US, UK, EU, AU, CN) 8 Gb Micro SD Card, Technical Documentation

* When registered within 60 days of purchase.

Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size	80 x 60 Sensor Detector Size Example Image:
Thermal Sensitivity	150 mK (NETD)
Temperature Range Max	716 F
Temperature Range Min	-13 F
Image Frequency	9 Hz
Field of View	50 x 38.6 Degrees
Screen Size	2 IN Screen Size High Res TFT LCD Screen
IR/Overlay Fusion Image	No
Video Output	No
Focus	Fixed
Laser Spot	Yes
Picture in Picture	No
Video Recording	No
Moveable Spots	No
Touch Screen Display	No
Minimum Focus Distance	10 IN (0.254 M)
Battery operating time Continuous	8 HR
Camera Light	No
IR Digital Zoom	No
Voice Annotation	No
Thermometers/IR Thermometers Template
IR Temperature Max	716 F
IR Temperature Min	-13 F
Field View Ratio (Spot Ratio)	24:1
Accuracy	+/- 1.5% or 1.5°C
Laser Pointer	Yes
Backlight	Yes
Emissivity Adjustable	Yes
Alarm	No
Data Hold	Yes
Max./Min.	No
Memory Recall	Yes
Thermocouple Input	No
Food Safe	Yes
Test Equipment General Attributes
Unique Features	Dual lasers framing the spot size Fast boot. Flir Lepton Thermal Core Uses a IR therm to get the temperature but has a thermal image of everything you are looking at
Warranty	2 YEARS
Warranty Details	2 Years Product, and 10 Years Thermal Imaging Detector when registered within 60 days
Safety Approval	CE
Interfaces I/O	USB
Storage	Micro SD Storage 8 GB card Included
Product Weight	312 GRAMS (0.688 LBS)
Product Height	13.25 IN
Product Length	4.75 IN
Product Width	5.75 IN
Shipping Weight	1.86 LBS
Data Logging	Yes
HTS/Schedule B Number	9025.19.8080
ECCN Number	6A993
Calibration Included	None
Battery Type	Li-ion
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	74 CM (29.13 IN)
UPC	793950401651
Shipping Length	32 CM (12.60 IN)
Shipping Width	38 CM (14.96 IN)
