FLIR T660-45-NIST T660 with NIST Calibration, with 45 Degree Lens, 30HZ

Name: FLIR T660-45-NIST T660 with NIST Calibration, with 45 Degree Lens, 30HZ
Brand: FLIR
SKU: FLIRT660-45-NIST
Price: 34000.00 USD
Availability: InStock

0 reviews | Catalog: 55904-8623 | UPC: 845188013219 | Model: FLIR T660-45-NIST

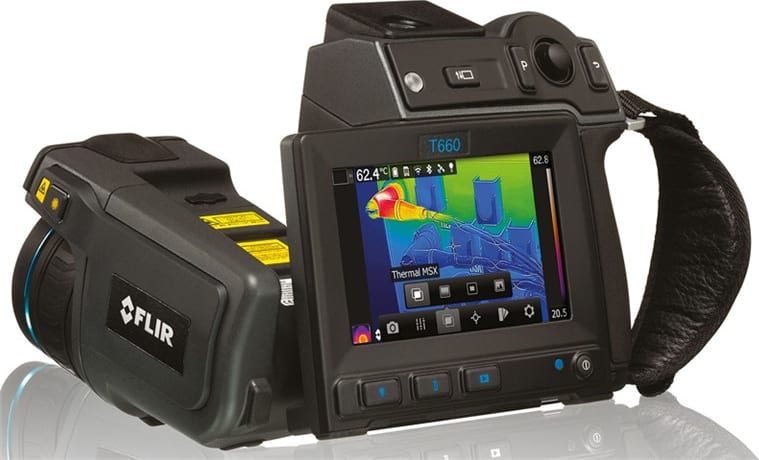

FLIR_T660-45-NIST_T660_With_NIST_Calibration_Main_View

Images (12)

Compare

FLIR T660 with NIST Calibration, w/45 Degree Lens, 30HZ

Includes NIST Calibration, w/45° Lens
IR Resolution: 640 x 480 pixels
Frame rate: 30 Hz
Temperature Range: -40°F to 3,632°F (-40°C to 2,000°C)
Thermal Sensitivity of <0.02°C @ 30°C
UltraMax super-resolution
5-Megapixel digital camera with LED Flash
Large 4.3" Capacitive LCD Touchscreen
Wi-Fi Connectivity
120° articulating optic
Bluetooth meter communication
MSX thermal fusion Technology
Stream thermal video to mobile devices over Wi-Fi via FLIR Tools Mobile app

View Product Details

List Price: $34,000.00

In Stock:

View Payment Options

Non-Cancellable / Non-Returnable

Recommended for you

Accessories

Choose a Category

for the FLIR T660-45-NIST

FLIR T198509 Cigarette Lighter Adaptor Kit (T10XX, T6XX, GF3XX, EXX, KXX)

Catalog: T198509

(0)

In Stock!

Add to Cart

FLIR T198126 Battery Charger with Power Supply (T6XX, T1020)

Catalog: T198126

(0)

In Stock!

Add to Cart

FLIR T199364ACC FLIR T6xx/T1xxx Series Lithium-Ion Battery, Replacement for T199406ACC...

Catalog: T199364ACC

(1)

In Stock!

Add to Cart

FLIR T910814 Power Supply, incl. multi plugs (EXX, T6XX, T10XX, GF3XX)

Catalog: T910814

(0)

In Stock!

Add to Cart

FLIR T910891ACC HDMI Type C to HDMI Type A Cable 1.5m

Catalog: T910891ACC

(0)

In Stock!

Add to Cart

FLIR T910930ACC HDMI type C to DVI cable 1.5 m (T6XX, T10XX)

Catalog: T910930ACC

(0)

In Stock!

Add to Cart

FLIR T198495 Pouch Case for T-series FLIR cameras

Catalog: T198495

(3)

In Stock!

Add to Cart

FLIR T911093 Toolbelt for Ex Series

Catalog: T911093

(0)

In Stock!

Add to Cart

FLIR MR40 Moisture Meter Pen

Catalog: MR40

(0)

In Stock!

Add to Cart

FLIR T197896 High temperature option +300 Degrees C to 2000 Degrees C (+572 Degrees F...

Catalog: T197896

(0)

In Stock!

Add to Cart

FLIR Thermal Studio FLIR Thermal Studio 1.0 (License Key/QR Code) 2 Users - perpetual...

Catalog: T300258

(0)

In Stock!

Add to Cart

FLIR T197771ACC Bluetooth Headset (EXX, T6XX, T10XX)

Catalog: T197771ACC

(0)

In Stock!

Add to Cart

FLIR T197914 15 Degrees Lens (15 Degrees, f=41.3mm) with Case

Catalog: T197914

(0)

In Stock!

Add to Cart

FLIR T197915 45 Degrees Lens (45 Degrees, f=13.1mm) with Case

Catalog: T197915

(0)

In Stock!

Add to Cart

FLIR T197922 24.6mm Lens; FOV 25 Degrees x19 Degrees with Case (A6XX, T6XX)

Catalog: T197922

(0)

In Stock!

Add to Cart

FLIR T198059 Close-up IR Lens; (32mm x 24mm) 2.9x (50um) With Case, WD = 84 mm (A6XX,...

Catalog: T198059

(0)

In Stock!

Add to Cart

FLIR T198060 Close-up IR Lens; FOV (64mm x 48mm) 5.8x (100um) With Case, WD = 172 mm...

Catalog: T198060

(0)

In Stock!

Add to Cart

FLIR T198065 6.5mm Lens; FOV 80 Degree x64.4 Degree with Case (A6XX, T6XX)

Catalog: T198065

(0)

In Stock!

Add to Cart

FLIR T198066 Close-up IR Lens; (16mm x 12mm) 1.5x (25um) With Case, WD = 46mm (A6XX, T6XX)

Catalog: T198066

(0)

In Stock!

Add to Cart

FLIR IRW-2C FLIR IRW InfraRed Window 2" (O.D. 2.87"/73mm)

Catalog: 19250-100

(0)

In Stock!

Add to Cart

FLIR IRW-2S IRW Stainless Steel InfraRed Window 2 inch

Catalog: 19250-200

(0)

In Stock!

Add to Cart

FLIR IRW-3S IRW Stainless Steel InfraRed Window 3 inch

Catalog: 19251-200

(0)

In Stock!

Add to Cart

FLIR IRW-4C FLIR IRW InfraRed Window 4" (O.D. 5.01"/127mm)

Catalog: 19252-100

(0)

In Stock!

Add to Cart

FLIR IRW-4S IRW Stainless Steel InfraRed Window 4 inch

Catalog: 19252-200

(2)

In Stock!

Add to Cart

FLIR ITC Level I ITC Level I Thermography Certification (4-Day), per attendee

Catalog: ITC Level I

(0)

In Stock!

Add to Cart

FLIR ITC Level II ITC Level II Thermography Certification (4-Day), per attendee

Catalog: ITC Level II

(0)

In Stock!

Add to Cart

FLIR ITC Level III ITC Level III Thermography Certification (4-Day), per attendee

Catalog: ITC Level III

(0)

In Stock!

Add to Cart

FLIR T660-45-NIST - Thermal Imaging IR Camera, 480 x 360 Resolution/30Hz with NIST Calibration and 45° Lens

IR Resolution: 640 x 480 pixels
Frame rate: 30 Hz
Temperature Range: -40°F to 3,632°F (-40°C to 2,000°C)
Thermal Sensitivity of <0.02°C @ 30°C
UltraMax super-resolution

The FLIR T660 has been designed for use in a variety of applications. FLIR has created a dependable tool for troubleshooting and locating issues quickly. Easily locate problems with electrical resistance, mechanical wear and other issues befoe they cause damage and delay daily operations. The T660's wide temperature range of -40°F to 1,202°F makes it ideal for most applications. With a 4x digital zoom, users can easily focus in on a specific area for inspection.

Cross Model Comparison

	T600	T620	T640	T660
UltaMax	No	Yes
Compass	No	Yes
GPS	No	Yes
View Finder	No		Yes

FLIR UltraMax Resolution

UltraMax is an exclusive image processing technology designed by FLIR. Captured images contain over 4 times as many pixels with over 50% less noise than thermal imagers not equipped with this feature. This allows users to more easily pinpoint the exact location of problem spots and provides a greater level of thermal accuracy.

FLIR MSX Thermal Fusion Technology

The FLIR T660 features FLIR MSX, which stands for Multi-Spectral Dynamic Imaging. This powerful thermal image blending technology extracts the high-contrast highlights and details generated by the thermal camera's 5-megapixel digital camera and overlays them with the infrared image in real time. The result is a significantly more detailed thermal image where labels, numbers, and other structural features are still clearly visible. This makes identifying features in a thermal image much easier and almost eliminates the need for a visible light reference photo. Below is an illustration of how MSX adds details to images.

Ergonomic Design

FLIR engineered the T660 to adaptable to any application. The flexibility and easy to grip chassis makes aiming and focusing simple for any user. The optical block of the T660 can rotate up or down by 120 degrees. The automatic screen orientation features allows for easy change from landscape to portrait view.

Wireless Communication

Share images & Meter Data Directly to Other Devices

FLIR Tools Mobile app: stream live thermal video, control camera remotely, view stored images and ticket problems from the field
FLIR MeterLink® transmit test and measurement tools readings directly to the camera for comprehensive image data

Large Intuitive Touchscreen

With the capacitive touchscreen on the Camera, image viewing and adjustment, as well as any setting changes, can all be done in one place. The 4.3-inch screen provides a clear, bright viewing platform. This screen also doubles as the viewfinder in most FLIR cameras, although higher-end models do have true viewfinders. Menus, settings, and measurement modes are easily accessible via simple touch menus. Plus, with FLIR Auto Orientation, all touchscreen images and menus are kept upright no matter the camera's orientation

IR Image Annotation

The thermal camera gives you the flexibility to make annotations on images in multiple ways. Use the touchscreen keyboard to make text notes. The included Bluetooth headset allows for voice annotations. With most T-Series thermal cameras users can also make sketches and draw on images to make notes, as shown in the image to the right.

Infrared camera with lens
Battery (2 ea.)
- T198506; Li-Ion Battery pack 3.7V 29Wh
- T199406ACC; Battery Li-ion 3.7 V, 7.8 Ah, 29 Wh
T198126; Battery charger
T197771ACC; Bluetooth headset
T910930ACC; HDMI-DVI cable
T910891ACC; HDMI-HDMI cable
T198625ACC; Hard transport case
T198497; Large eyecap
T911230ACC; Memory card
T198499; Neck strap
T910814; Power supply, incl. multi-plugs
T198498; Tripod adapter
1910423; USB cable, Std A to Mini-B
Lens cap
Calibration certificate
Printed documentation

Model	T420	T440	T460	T600	T620	T640	T660
Thermal Resolution	76,800 (320 × 240)			172,800 (480 × 360)	307,200 (640 × 480)
Thermal Sensitivity	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.04°C @ 30°C		<0.03°C @ 30°C	<0.02°C @ 30°C
Accuracy	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal		+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.	+/-2°C (+/-3.6°F) or +/-2% of reading, whichever is greater, at 25°C (77°F) nominal			+/-1°C (+/-1.8°F) or +/-1% of reading for limited temperature range; ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
Temperature Range	-20°C to 650°C (-4°F to 1,202°F) Optional: to 1,200°C (2,192°F)	-20°C to 1,200°C (-4°F to 2,192°F)	-20°C to 1,500°C (-4°F to 2,732°F)	-40°F to 1,202°F (-40°C to 650°C)	-40°F to 1,202°F (-40°C to 650°C) Optional: to 3,632°F (2,000°C)	-40°F to 3,632°F (-40°C to 2,000°C)
Measurement Modes	7 presets: center spot; hot spot (box max); cold spot (box min); 3 spots; hot spot - spot (box max + spot + delta); hot spot - temperature (box max + ref temp + delta); no measurements	6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets		6 presets: center spot; hot spot (box max); cold spot (box min); no measurements; 2 user presets
UltraMax	•	•	•		•	•	•
Radiometric Recording			CSQ to memory card				CSQ to memory card
User Presets		•	•	•	•	•	•
Frame Rate	60 Hz			30 Hz
Lens Choices	6°, 15° Tele, 45° & 90° Wide; Close up: 100 μm, 50 μm			25°, 7° & 15° Tele, 45° & 80° Wide; Close up: 100 μm, 50 μm, 25 μm
Focus	Manual & Automatic			Manual & Automatic		Manual, Automatic, and Continuous
Display Size	3.5”			4.3”
Touchscreen	•	•	•	Capacitive touch screen
Viewﬁnder						•	•
Built-in Visual Camera	3.1 MP			5 MP
Digital Zoom	4×	8×		4×		8×
Compass	•	•	•		•	•	•
GPS					•	•	•
Sketch on IR/Visual Image		Draw or add predeﬁned stamps		Draw or add predefined stamps

Tech Specs

Thermal Imagers/Building and Industrial Thermal Imagers Template
Detector Size	640 x 480 Sensor
Thermal Sensitivity	20 mK (NETD)
Temperature Range Max	3632 F
Temperature Range Min	-40 F
Image Frequency	30 Hz
Field of View	45x34 Degrees
Screen Size	4.3 IN
IR/Overlay Fusion Image	Yes
Video Output	Yes
Focus	Auto Focus
Laser Spot	Yes
Picture in Picture	Yes
Video Recording	Yes
Moveable Spots	Yes
Touch Screen Display	Yes
Minimum Focus Distance	0.49 Ft (0.149 M)
Accuracy	• ±1°C (±1.8°F) or ±1% of reading for limited temperature range. • ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
Battery operating time Continuous	2.5 HR
Camera Light	Yes
IR Digital Zoom	Yes IR Digital Zoom 1x - 8x
Voice Annotation	Yes
Test Equipment General Attributes
Unique Features	Includes NIST-Traceable Calibration Wide Field of View 45° Lens Highest performance with the latest technology: The FLIR T660 is equipped with the innovative Multi Spectral Dynamic Imaging (MSX) feature, Continuous auto-focus makes the FLIR T660 the first fully automatic infrared camera on the market. You can highlight objects of interest, on both the infrared and the visual images, by sketching or adding predefined stamps directly onto the camera’s capacitive touch screen. Auto-orientation allows you to tilt between landscape and portrait views. The Wi-Fi connectivity of the FLIR T660 allows you to connect to smart phones or tablets for the wireless transfer of images or the remote control of the camera. Bluetooth-based METERLiNK function transfers readings from external measurement instruments to the infrared image. When enabling UltraMax in the camera, the resolution of images can be substantially enhanced when importing the images into FLIR Tools.
Warranty	1 YEARS
Warranty Details	Standard warranty is 1 year. If you register your camera at FLIR.com, you will have: 2 Years parts and labor coverage on the camera! 5 Years coverage on the battery! 10 Years coverage on the detector – the most vital part of the whole camera!
Safety Approval	CSA, UL
Interfaces I/O	Bluetooth, Wifi, USB
Storage	SD Card
IP Rating	IP54
Product Weight	2.87 LBS
Product Height	14.50 IN
Product Length	19.15 IN
Product Width	7.50 IN
Shipping Weight	15 LBS
Data Logging	Yes
ECCN Number	6A003.b.4.b
Calibration Included	NIST Calibration
Battery Type	Li-ion
Power Supply Voltage	120V/220V Universal
Country of Origin	Sweden
