| FEATURES |
FLIR T600 |
FLIR T600 bx |
| Temperature range |
-40°F to 1202°F (-40°C to 650°C) |
-40°F to 662°F (-40°C to 350°C) |
| Thermal sensitivity (N.E.T.D) |
<0.04°C at 30°C |
| Digital Zoom |
4X Continuous |
| Focus |
Manual or Automatic (one shot) |

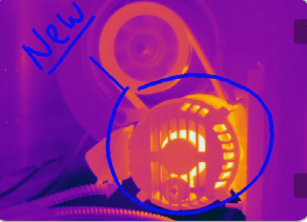

| LCD Image Sketch |
Draw on stored images using the touchscreen |

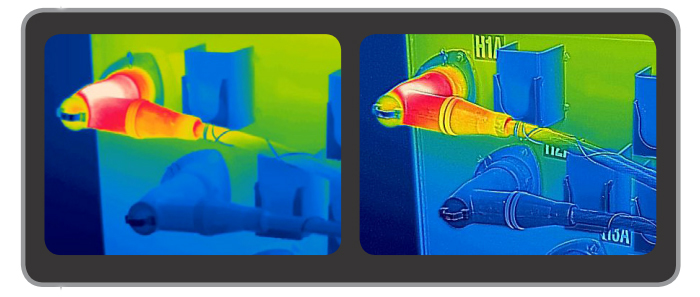

| Multi-Spectral Dynamic Imaging (MSX) |
IR image with enhanced detail presentation |
| Frame Rate |
30Hz |
| Field of view/Minimum focus distance/FOV Match |
25° x 19° / 0.82ft (0.25m) / Field of View Match where Digital Image FOV adapts to the IR lens |
| Detector Type - Focal plane array (FPA) uncooled microbolometer |
480 x 360 pixels |
| Lens |
30Hz |
| Display |
Built-in touch-screen 4.3" color LCD (800 × 480 pixels) |
| Image modes |
Thermal/Visual/Fusion/P-i-P/MSX (Resizable and movable ) and Thumbnail Gallery |
| Automatic image adjustment |
Continuous/manual; linear or histogram based; possible to lock max, min or span temperature |
| Manual image adjustment |
Level/span/max/min |
| Image Storage |
1000 radiometric JPEG images (SD card memory) |
| Image annotation |
Voice (60 sec); text comments, Sketch |
| Periodic image storage |
7 seconds to 24 hours (IR) and 14 seconds to 24 hours (IR and visual) |
| Video Lamp and Laser Pointer |
Built-in dual LED lamps plus onboard laser pointer |
| Laser Classification/Type |
Class 2/Semiconductor AlGalnP Diode Laser: 1mW/635nm (red) |
| Set-up controls |
Mode selector, color palettes, configure info to be shown in image, local adaptation of units,
language, date and time formats, and image gallery |
| Measurement modes |
10 Spotmeters, 5 Box areas, Isotherm, Auto hot/cold spot, Delta T |
| Measurement correction |
Reflected ambient temperature & emissivity correction |
| Humidity alarm |
- |
Including dewpoint alarm |
| Insulation alarm |
- |
Alerts to temperature difference indicating voids |
| GPS |
Location data automatically added to every image from built-in GPS |
| Compass |
Indicates direction camera is pointing for target documantation |
| Video Recording in Camera and Video Streaming |
Non-radiometric IR-video recording (MPEG-4 to memory card), Visual and Radiometric IR-video
streaming (Full dynamic to PC using USB or Wi-Fi), and Non-radiometric IR-video streaming
(MPEG-4 using Wi-Fi and uncompressed colorized video using USB) |
| Battery Type/operating time |
Li-lon/ 2.5 hours, Display shows battery status |
| Charging system |
In camera AC adapter/2 bay charging system |
| Shock / Vibration / Encapsulation; Safety |
25G, IEC 60068-2-29 / 2G, IEC 60068-2-6 / IP54; EN/UL/CSA/PSE 60950-1 |
| Dimensions/Weight |
5.6 x 7.7 x 3.7" (143x196x94mm)/2.87lbs (1.3kg), including battery |
| Accessories included |
SD Memory Card, 100-260V AC adaptor/charger, two Li-Ion rechargeable batteries, 2-bay
battery charger, power supply (with multi-plugs), FLIR Tools™ software, USB cable, video cable,
Bluetooth® headset, lens cap, neckstrap, and hard case |
