FLIR T197214 Close Up Lens 2x Magnification with Case

Name: FLIR T197214 Close Up Lens 2x Magnification with Case
Brand: FLIR
SKU: FLIRT197214
Price: 3790.00 USD
Availability: InStock

0 reviews | Catalog: T197214 | UPC: 845188005122 | Model: FLIR T197214

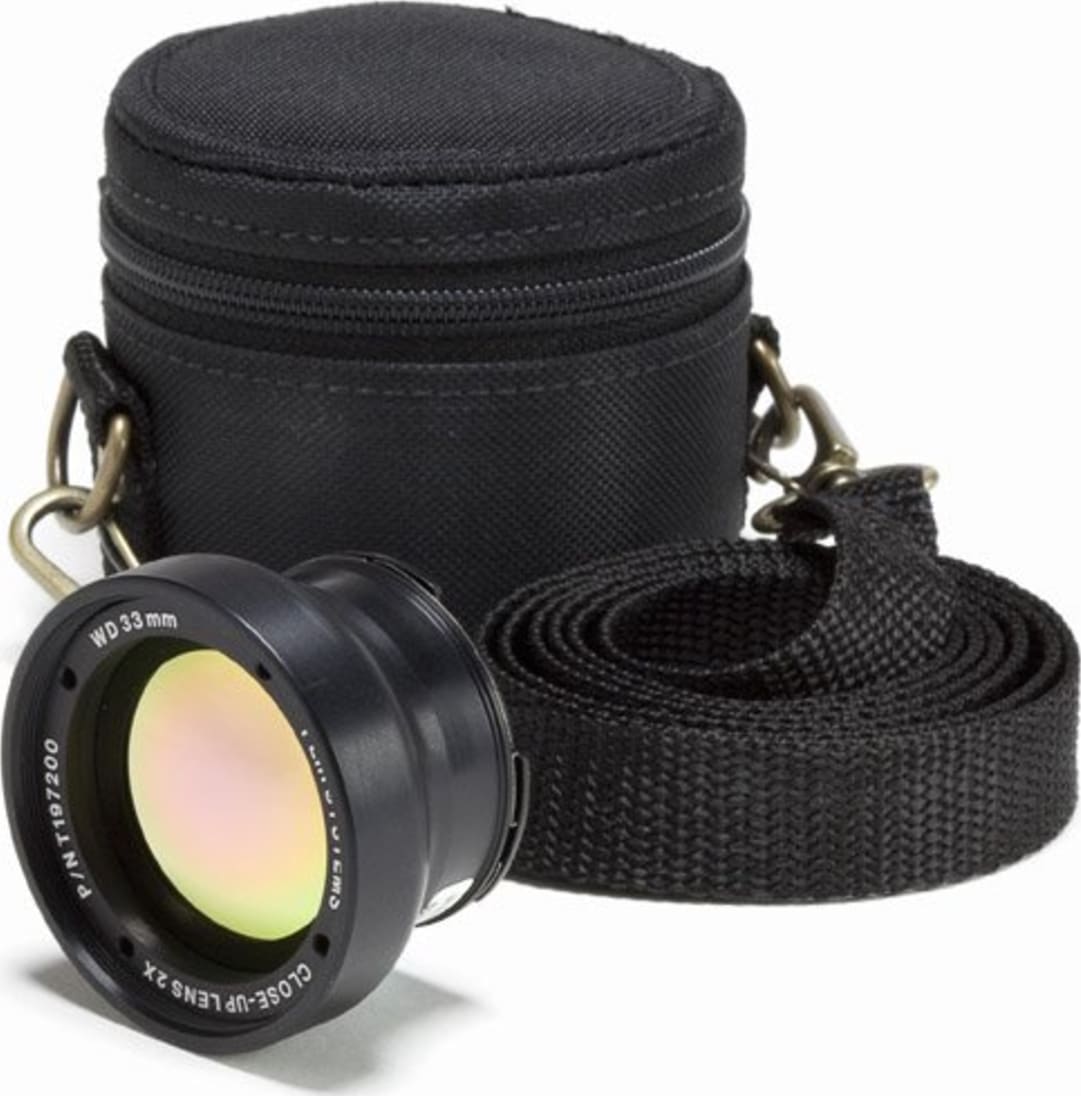

FLIR_T197214_Close_Up_Lens_2x_Magnification_With_Case_Main_View

Compare

Close Up Lens 2x Magnification (50μm) with Case

Close Up Lens 2x (50 μm) Magnification with Case

View Product Details

List Price: $3,790.00

In Stock:

View Payment Options

Recommended for you

Close-up lens 2x, 50 µm, incl. case
This macro lens provides resolution of extremely small targets.

The FLIR Close Up Lens T197214 magnifies the field of view by a factor of two. It is suitable for imaging small electronic components such as printed circuit boards (PCB), or for any R&D work requiring a very close view of the target area. Spatial resolution of 50 um for 320 x 240 cameras. Includes a heavy duty padded nylon case.

Field of view (FOV)	16 × 12 mm
Magnifying factor	2×
Working distance	33 mm
Depth of field	±0.4 mm
Focal length	37 mm (1.5 in.)
Spatial resolution	(IFOV): 80 μm/50 μm
F-number	1.3
Number of lenses	2 (2 asph)
MTF @ 70% of FOV	Normal requirements (52%)
Distorsion	3%
Weight	0.11 kg (0.24 lb.)
Size (L × D)	35.2 × 55 mm

Tech Specs

Test Equipment General Attributes
Product Weight	0.8 LBS
Product Length	35.2 MM (1.39 IN)
Product Width	55 MM (2.17 IN)
Shipping Weight	0.24 LBS
ECCN Number	EAR99
Country of Origin	China
Shipping Height	5.2 IN
Shipping Length	6.8 IN
Shipping Width	5.2 IN
