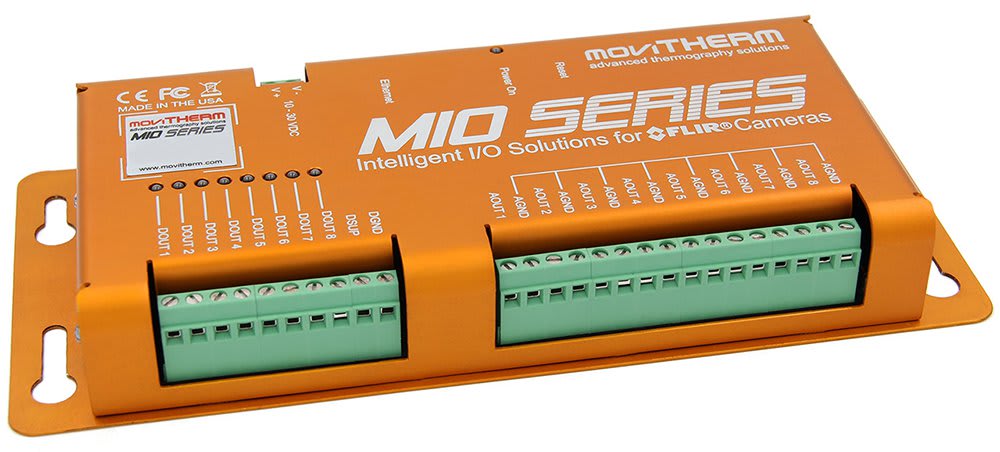

The MIO Series Intelligent I/O solutions are designed to turn FLIR thermal imaging temperature sensors into complete remote monitoring systems. Easy to set up and easy to configure, the MIO Series is your remote monitoring solution for process control, condition monitoring, and fire prevention.

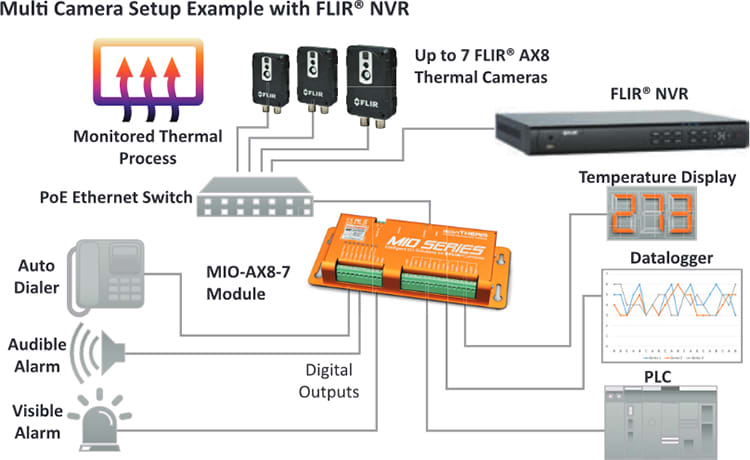

The MIO Series is an intelligent module that can be easily configured via the built-in web server. Once connected with up to seven FLIR thermal imaging temperature sensors, the MIO module can target designated regions or areas of interest (ROI) and start monitoring. The module can be programmed through the web server to alarm when a temperature threshold is breached, updating in real time. The MIO can also output an analog 4 to 20 mA current loop signal per each region of interest, providing the user with process control options.
Automatic analysis and alarms
With its streaming video output, the AX8 not only gives you live video of every installation, but it also provides automated alarming when pre-set temperature thresholds are exceeded as well as temperature trend analysis.
Industrial protocol
Since FLIR AX8 is Ethernet/IP and Modbus TCP compliant analysis and alarm results can easily be shared to a PLC. Digital inputs/outputs are available for alarms and control of external equipment. An image masking function allows you to select only the relevant part of the image for your analysis.
Compact & Easy to install
Combining thermal and visual cameras in a small, affordable package, the AX8 measures only 54 x 25 x 95 mm, making it easy to install in space- constrained areas for uninterrupted condition monitoring of critical electrical and mechanical equipment.
