| Model Numbers |

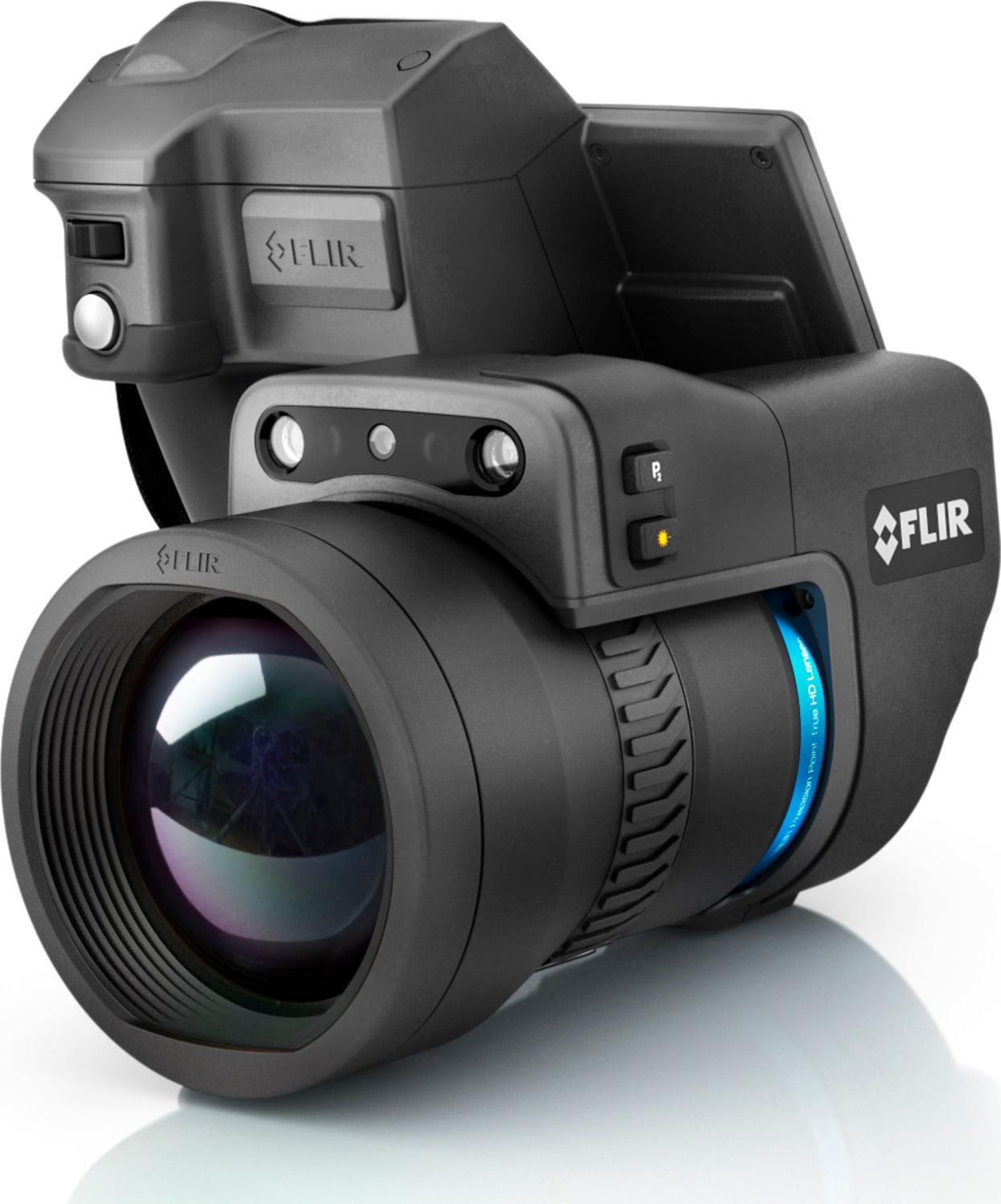

FLIR T1020 |
| Imaging and Optical Data |
| IR Sensor |
1024 × 768 (786,432 measurement pixels) |
| Thermal Sensitivity/NETD |
< 0.02°C at +30°C |
| Lens Choices |
12°, 28°, 45°, 3x Close-up |
| Minimum Focus Distance |
0.2m (0.66 ft.) to 0.8m (2.13 ft.), depending upon the lens |
| Image Frequency |
30 Hz |
| Spectral Range |
7.5 - 14 µm |
| 4.3” Display |
800 x 480 pixels |
| Auto Orientation |
Yes |
| Touch Screen |
Yes |
| Image Presentation Modes |

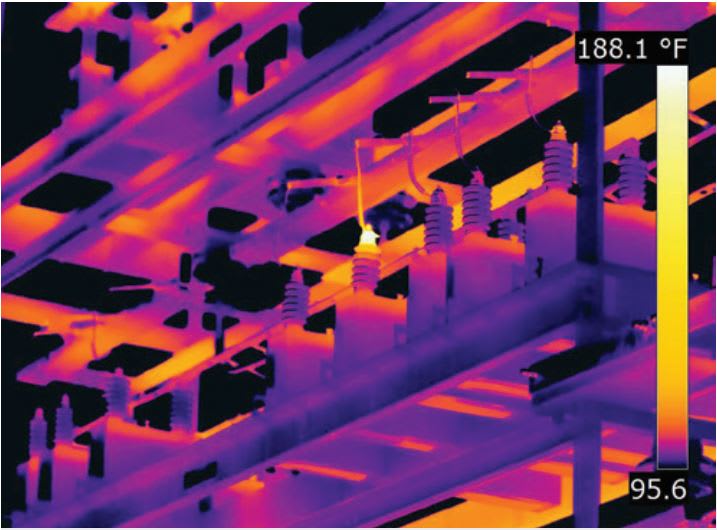

| Thermal Image |
Yes |
| Visual Image |
Yes |
| UltraMax ™ |
Unique super-resolution process quadruples pixel count, up to 3.1 MP |
| MSX ® |
Embosses visual details on full resolution thermal image, for clear text and location identification |
| Gallery |
Yes |
| Measurement |
| Accuracy |
±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal |
| Measurement Analysis |
| Measurement Tools |
10 spotmeters, 5+5 areas (boxes, circles) with min./max./average |
| Emissivity Correction |
Variable from 0.01 to 1.0 or selected from materials list |
| Measurements Correction |
Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance,
external IR window compensation |
| Color Palettes |
Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava |
| Storage of Media |
| Storage Media |
Removable SD card (Class 10) |
| Image File Format |
Standard JPEG, including digital photo and measurement data |
| Video Recording/Streaming |
| Radiometric IR-Video Recording |
Real-time radiometric recording to SD card |
| Non-Radiometric IR-Video Recording |
H.264 to SD card |
| Radiometric IR-Video Streaming |
Real-time radiometric streaming via USB |
| Non-Radiometric IR-Video Streaming |
H.264 video using Wi-Fi or USB |
| Digital Camera |
| Digital Camera |
FOV adapts to the IR lens |
| Video Lamp |
Built-in LED light |
| Additional Information |
| USB, Connector Type |
USB Micro-AB Data transfer to and from PC/Uncompressed colorized video |
| Battery |
Rechargeable Li-ion polymer battery |
| Battery Operating Time |
> 2.5 hours at 25°C (+68°F) |
| Charging System |
In camera (AC adapter or 12 V from a vehicle) or 2-bay charger |
| Charging Time |
2.5 hours to 90% capacity |
| External Power Operation |
AC adapter, 90-260 VAC input, 50/60 Hz or 12 V output from a vehicle
(cable with standard plug, optional) |
| Power Management |
Automatic power-off functionality, user-configurable |
| Storage Temp. Range |
-40°C to +70°C (-40°F to 158°F) |
| Weight |
1.9 kg (4.3 lb.) to 2.1 kg (4.6 lb.), depending upon lens model |
| Tripod Mounting |
UNC ¼”-20 |
